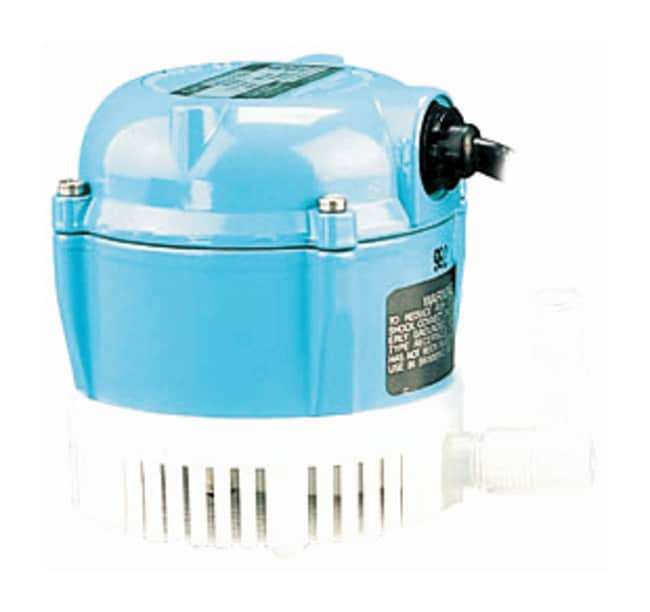

Franklin Electric Little Giant Permanently Lubricated Submersible Pumps: 170 GPH

For commercial, industrial, and home use worldwide where liquid must be transferred or recirculated

Supplier:  Franklin Electric 500203

Catalog No. 13-874-500B

Description

• Operates submersed
• 6 ft. Cord
• Epoxy-coated aluminum housing
• Bottom inlet has snap-off screen for easy cleaning.
• 1/4 in. MNPT outlet, with 90° elbow accessory, accepts 1/2 in. I.D. tubing

• 1/200hp
• 170 gal./hr. at 1 in. of head
• 7 in. Shutoff
• Screened inlet
• Not recommended for aquaria, swimming pools, and fuel oil transfer
• 3.33 lb. (1.5kg)

Applications:

For commercial, industrial and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications

Order Info

115V 60Hz 1.1A 70w. H x L, 4.25 in. x 4.13 in. (10.8 x 10.5cm).

Specifications

• Horsepower: 1/200 hp
• Electrical Requirements: 115 V 60 Hz 70 w
• Weight (English): 7.2 lb.
• Flow Rate: 170 gal./hr.
• Frequency: 60 Hz
• Overall Height (Metric): 10.8 cm
• Overall Length (Metric): 10.5 cm
• Voltage: 115 V

• Amperage: 1.1 A
• Wattage: 70 w
• Weight (Metric): 3.3 kg
• For Use With: For statuary fountains, water displays, air conditioners, machine tool coolant
• Overall Height (English): 4.25 in.
• Overall Length (English): 4.13 in.
• Applications: Home Use
