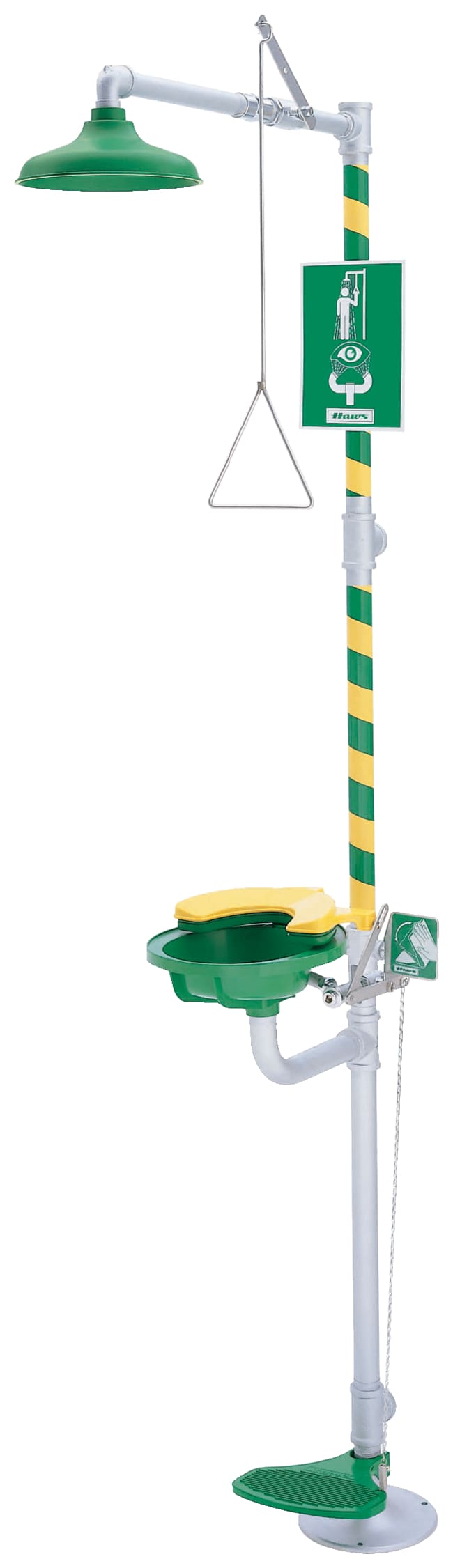

Haws™ Omni-Flo™ Combination Unit

Description

Includes

Self-adhesive 21 in. long (53.3cm) stripe in Safety Green and bright yellow.

Combination eye/facewash and independently operated drench shower

Activation

• Stainless-steel pull rod activates shower
• Eyewash can be activated with foot treadle, for hands-free operation, or with large push flag

Shower Head

• ABS plastic shower head is equipped with 20 gpm (75.7L/min.) flow control to ensure steady flow when flowing pressure is between 30 and 90psi

Eye/facewash Head and Bowl

• Wraparound sprayhead design delivers a delicate, soothing spray of water over entire face
• Eye/facewash control has 6.25 gpm (23.7L/min.) flow control; controls water flow rate when flowing pressure is between 30 and 90psi
• Bright yellow ABS dust cover protects sprayhead until activated by water flow
• Durable green ABS plastic receptor is resistant to damage from alkalis, salt solution, oils, most acids, sun exposure and color change

Pipe and Fittings

• 1 1/4 in. (3.18cm) Schedule 40 hot-dipped galvanized steel
• Features a gray, powder-coated 9 in. dia. (22.9cm) cast-iron floor flange
• Supply and waste, 1 1/4 in. IPS

Certifications

CSA certified to ANSI™ Z358.1-2004.
