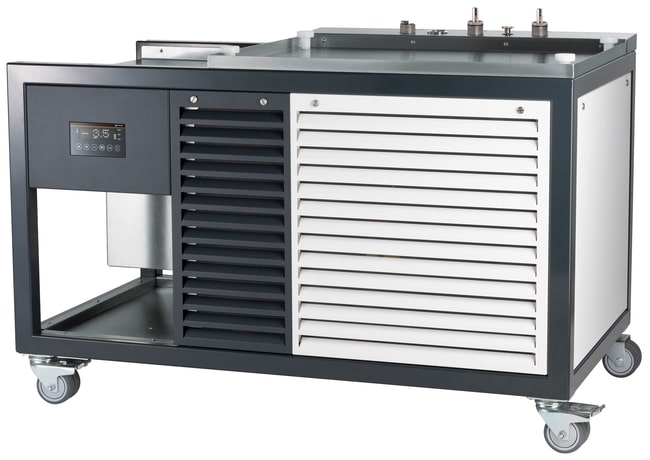

Heidolph™ Hei-CHILL 5000 Basecart Chiller

Catalog No.	Capacity (Metric)
13-990-511	28 L

Catalog No. 13-990-511 Supplier Heidolph™ Supplier No. 036306422

Description

Most compact and powerful under-counter chiller with high cooling capacity.

• Optimally designed as a space-saving solution for a large-scale evaporator and other peripheral devices: this compact under-counter chiller can be perfectly placed among one of our Hei-VAP Industrial models
• The power supply of the rotary evaporator is ensured by a power socket at the rear of the chiller. Moreover and despite its small footprint, this chiller also provides space for a vacuum pump and mounting possibilities for the automatic module Hei-VOLUME Distimatic Pro
• At the same time, with its cooling capacity of up to 5000 W, this recirculation chiller is extremely powerful
• Features a large reservoir that is particularly useful for peak loads and has a high flow rate, making it suitable even for demanding liquids like low-boilers and continuous evaporation
• Operates at almost 60 dB

Specifications

• Capacity (Metric): 28 L
• Condenser Type: Air-cooled
• Cooling Capacity: At 20°C: 5000 W, At 10°C: 3500 W, At 0°C: 2500 W, At -10°C: 1100 W
• Flow Rate: 40 L/min.
• Temperature Range: 10°C to 40°C
• Type: Evaporator Chiller
• Max. Pressure: 18 bar
• Model: Hei-CHILL 5000 Base Cart
• Noise Level: 62.5 dB(A)
• Refrigerant: R513A (GWP 631*)
• Temperature Accuracy: ±1.5 K
• Temperature Resolution: 0.1 K
• Weight (Metric): 145 kg
• Electrical Requirements: 208 V, 3∼/N/PE
• Frequency: 50 Hz
• Connection Type: 3/4 in. Female Thread
