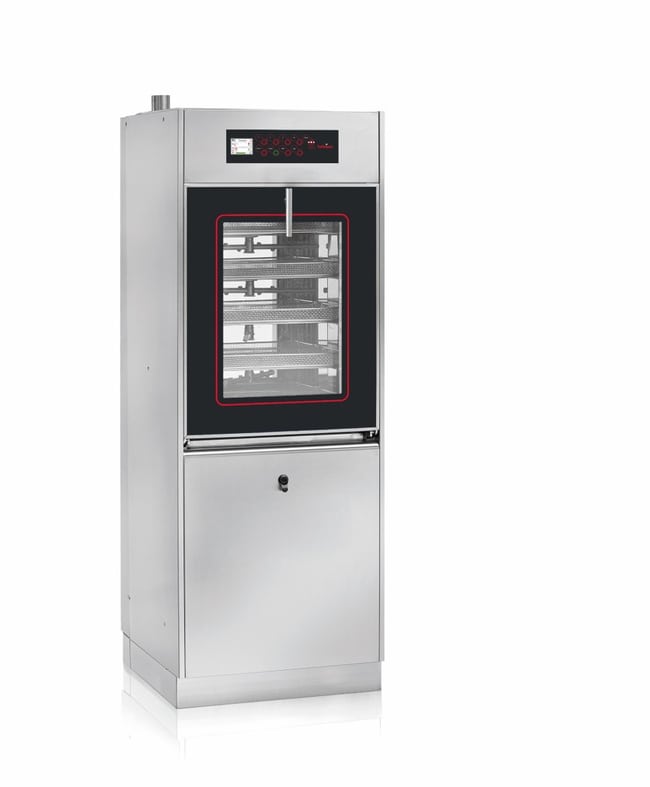

Heidolph™ Tuttnauer™ Hei-DRO Clean 265FS Laboratory Glassware Washer

Catalog No.	Product Type
01-670-553	Laboratory Glassware Washer

Catalog No. 01-670-553 Supplier Heidolph™ Tuttnauer™ Supplier No. 023250043

Description

High disinfection thermal washer to provide effective decontamination, washing and drying for a wide range of different glassware and other materials which are commonly used in laboratories.

High Disinfection Thermal Washer. The ultimate automated solution for washing, rinsing, disinfecting, and drying your laboratory equipment prior to sterilization.

Intuitive User Experience:

• A full control and all-in-one operation from a single touch panel with color display
• Alarm-check system for quick and easy operation
• Washer RePortal SW
• User PIN access management (optional)
• Graphical report of washing phases including time and temperature
• Spray Arm monitoring for continuous washing validation (optional)

Advanced Control and Warning System:

• Microcontroller manages data from multiple sensors to support smooth, efficient and reliable operation
• Chemical dosing control
• Real-time indication of water level and quality

Easy to Clean and Maintain Process Monitoring:

• The only washer with a water-emptying total system (ETS)
• Easy-to-remove and easy-to-wash spray arms
• Long-lasting components require minimal servicing

Premium Performance:

• Up to 40 washing programs. Preset and customized
• Water quality monitoring
• Validation of every cycle using continuous water pressure monitoring
• Quick drying phases due to a steam condenser system
• Uniform forced air drying, dust blocking (HEPA filter is optional)
• Accelerated heating time by using an integrated boiler (optional)
• Reduced program times and electricity consumption using hybrid heating system (optional)
• Water softener system (optional)
• Conductivity probe (optional)

Highest Design Standards:

State of the art quality

• Chemical-resistant double-layered glass
• AISI 316L Stainless Steel
• Double-layered tempered glass door for visual monitoring

Specifications

• Display: Digital
• Material: Stainless Steel
• Product Type: Laboratory Glassware Washer
• Flow Rate: 626 L/min.
• Max. Pressure: Max flow pressure for cold water, hot water and deionized water: 72 PSIG/500 kPA. Recommended flow pressure: 43 PSIG, 300 kPA
• Min. Purified Water Pressure: Min flow pressure for cold water, hot water and deionized water: 29 PSIG/200 kPA
• Volume (English): 70.01 gal.
• Volume (Metric): 265 L
• Color: Gray/Black and Red Display/Front Panel
• Product Line: Hei-DRO Clean Glassware Washers
• Certifications/Compliance: CE
• For Use With (Equipment): Laboratory glassware. Optional racks, nozzles and accessories for a varity of glassware
• Includes: Optional racks, nozzles and accessories for a varity of glassware
• Depth (English) Interior: 23.03 in.
• Depth (Metric) Interior: 585 mm
• Dimensions (D x W x H) Interior: 585 x 560 x 800 mm
• Height (English): 72.83 in.
• Height (English) Interior: 31.50 in.
• Height (Metric): 1850 mm
• Height (Metric) Interior: 800 mm
• Width (English): 25.59 in.
• Width (English) Interior: 22.05 in.
• Width (Metric): 650 mm
• Width (Metric) Interior: 560 mm
• Electrical Rating: Domestic
• Voltage: 230 V
• Frequency: 50 Hz
