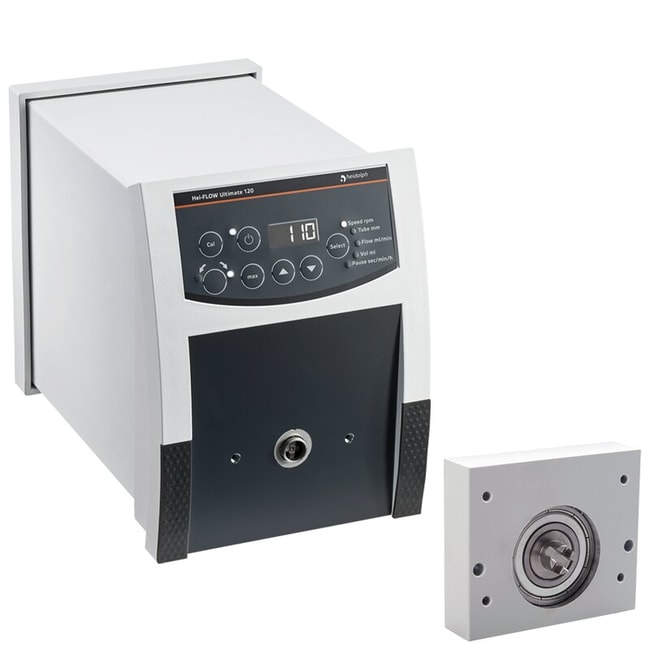

Heidolph™ Hei-FLOW Ultimate Peristaltic Pump

Catalog No.	Model	Flow Rate
13-889-013	Hei-FLOW Ultimate 120 Multi	0.3 to 790 mL/min., 0.005 to 320 mL/min.
13-889-875	Hei-FLOW Ultimate 600	1.3 to 3.9 mL/min.
13-889-950	Hei-FLOW Ultimate 120	0.3 to 790 mL/min.

Catalog No. 13-889-013

Supplier: Heidolph™ 036150170

Description

Includes

Adaptor for multi-channel operation

For reproducibility while pumping and dosing

Pump includes premium safety standards and features for superior ease of use and reduced cost of ownership.

• Analog control or digital RS 232 interface with adjustable variable speed from 24 to 600rpm
• Flow characteristic of pump head in combination with various tubing diameters is pre-programmed for accurate flow rate numbers
• Digital readout of speed (rpm), tubing diameter, flow rate in (mL/min.), dosing volume, interval dosing, pause function
• Electronic speed control with accuracy of ±0.5%
• Press of the max button accelerates filling and draining of tube
• Pump operates clockwise or counterclockwise at a push of a button
• Individual flow volume and flow rate calibration
• Model can be connected to an optional foot pedal remote control

Hei-FLOW Ultimate 120

• Flow rates of 0.36 to 813 mL/min. with single-channel pump heads
• Low speed range from 5 to 120 rpm
• Suitable for multi-channel operation
• Multi-channel flow rates from 0.005 to 329 mL/min.
• Can be upgraded for multi-channel operation with a pump head adapter

Hei-FLOW Ultimate 600

• Flow rates of 2.0 to 4056 mL/min. with single-channel pump heads
• High speed range from 24 to 600 rpm
• Not suitable for multi-channel operation

Specifications

• Accuracy: ±0.5%
• Flow Rate: 0.3 to 790 mL/min., 0.005 to 320 mL/min.
• Motor Speed: 5 to 120 rpm
• Includes: Adaptor for multichannel operation
• Model: Hei-FLOW Ultimate 120 Multi
• Motor Type: DC
• Speed Control: Digital
• Temperature (Metric) Max: 40°C
• Temperature (Metric) Min.: 0°C
• Overall Length (English): 10.07 in.
• Overall Length (Metric): 25.6 cm
• Overall Width (English): 6.53 in.
• Overall Height (English): 8.85 in.
• Overall Height (Metric): 22.5 cm
• Electrical Requirements: 115 V, 50/60 Hz
• Voltage: 115 V
• Wattage: 150 W
• Frequency: 50/60 Hz

Safety and Handling

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
