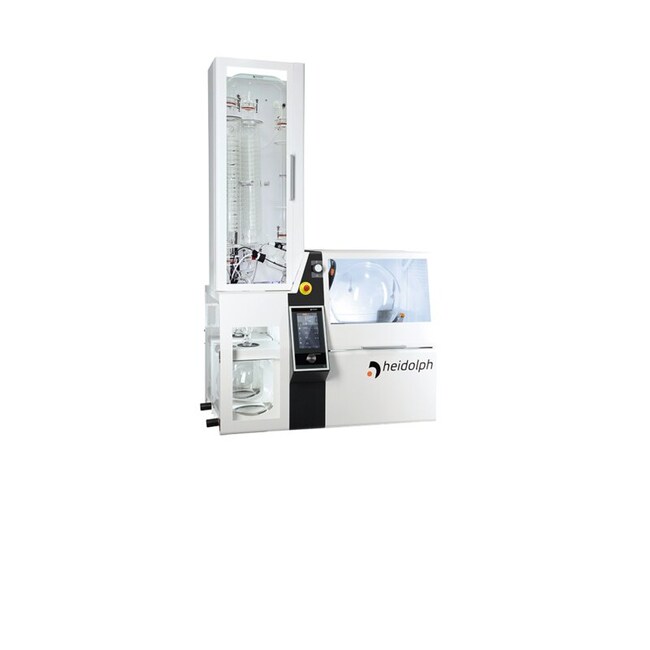

Heidolph™ Hei-VAP Industrial Rotary Evaporator

Catalog No.	Capacity (Metric)
13-990-509	20 L

Catalog No. 13-990-509 Supplier Heidolph™ Supplier No. 036072402

Description

Designed for different distilling processes, from standard evaporation without vacuum control to complex distillation with vacuum control.

• Excellent user safety with high-impact transparent PMMA door
• Non-fogging safety glass and metal frame guard hood provides excellent user protection
• The evaporation flask is illuminated during operation for increased visibility
• Universal heating bath accommodates water or other bath fluids allowing for temperature settings up to 180°C
• Receiver cassettes and additional PMMA door housing protect against threat of glassware breakage
• Comes as standard with integrated refill water system, spillover prevention and a release valve at the bottom
• Optional Base Cart is fully-maneuverable with removable panels for storage of vacuum pump, glassware, solvents or accessories
• Certification according to GMP available for this model: validation for installation (IQ) and operating qualification (OQ)
• Large touch screen control panel with illuminated displays for all process parameters, programmable ramps

Specifications

• Voltage: 230 V
• Capacity (Metric): 20 L
• Speed: 6 to 160 rpm
• Temperature Range (Metric): 20°C to 180°C
• For Use With (Application): Achieving very high rates of distillation - especially during automated processes
• Includes: A1C Glassware: One Ascending, One Descending Condenser, One Ascent Pipe, One 20L Evaporating Flask And Two 10L Receiving Flasks
• IP Rating: IP20
• Certifications: NRTL
• Type: Motor Lift Rotary Evaporator
• Model: Glassware A1C
