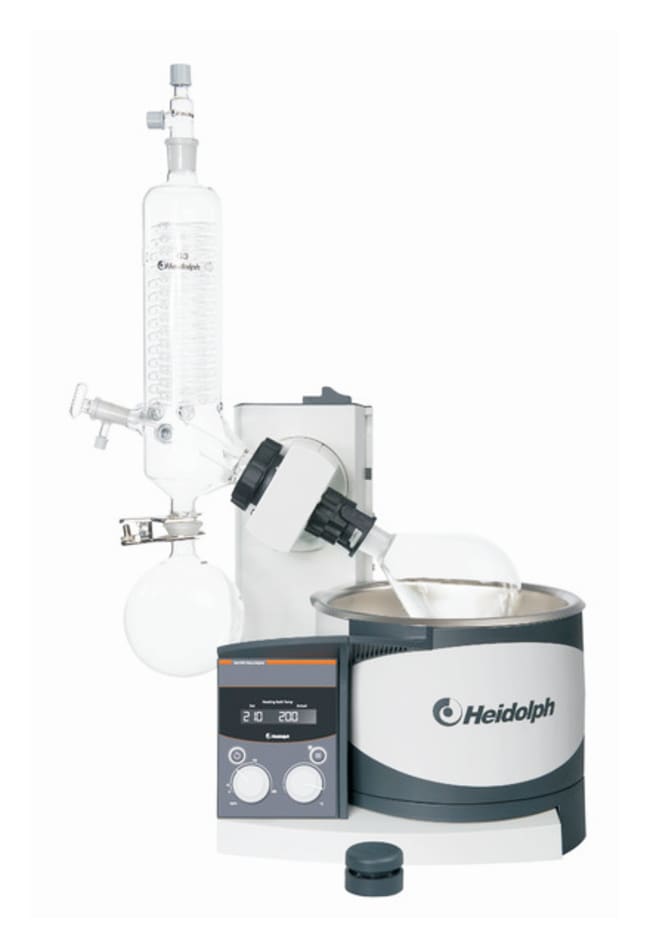

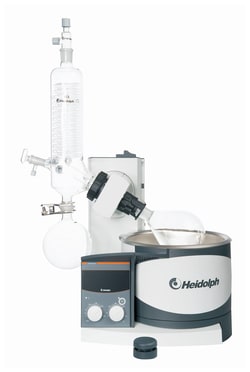

Heidolph™ Hei-Vap™ Rotary Evaporators - Hei‐VAP Value/Hei‐VAP Value Digital
SDP

Affordable model with hand lift for all standard applications

Specifications

Voltage 115 V
Capacity (Metric) 5 L
Speed 20 to 270 rpm
Temperature Range (Metric) 20°C to 100°C
For Use With (Application) Standard distillation
View More Specs

Products 1
Catalog Number Mfr. No. Model Type For Use With (Application) Includes Price Quantity & Availability
Catalog Number Mfr. No. Model Type For Use With (Application) Includes Price Quantity & Availability
13-876-300
SDP
Accessories View Documents
Heidolph™
036000030
Value Hand Lift (HL) G1 Standard Standard distillation Diagonal condenser; Non-coated glassware Item Discontinued This item has been discontinued by the supplier. Please to view product availability in your area. N/A
Description

Description

All Bench top Models Feature:

  • Convenient large dial controls for adjustment of rotation speed and bath temperature
  • Heating bath reaches a temperature of 210°C
  • Rotation Speed of 20-280 rpm
  • Universal heating bath can accommodate 5L flask
  • Heating bath can be adjusted horizontally up to 200mm
  • Proprietary nonstick vapor tube clamping sleeve
  • Adjustable angle of evaporating flask can be individually set according to users needs
  • Evaporating flask clamp cannot be lost due to a connection to the vapor tube coupling ring
  • Detachable operating panel located below the bath for safety



Model Specific Features

Glassware

  • Available in Standard or with a transparent plastic coating (Surlyn-Coated) for added safety, G5 glassware is available Standard and Halar-coated
  • Glassware Condenser Types
  • Glassware Set G1: Diagonal Condenser for all standard distillations
  • Glassware Set G3: Vertical Condenser for all standard distillations with small space requirement
  • Glassware Set G5: Dry Ice Condenser for low-boiling solvents
  • Glassware Set G6: Vertical Condenser for reflux distillation (centerpiece with valve)
  • Glassware Set G3B XL: Vertical Condenser for all distillations; condensing surface of 2200 cm2 for maximum evaporation rates. With transparent plastic coating
Digital Models
  • Provide digital display for set and actual heating bath temperatures



Order Info

Optional manual vacuum controller recommended.

Specifications

Specifications

115 V
20 to 270 rpm
Standard distillation
Large dial control
50/60 Hz
5 L
20°C to 100°C
68°F to 212°F
115 V 50/60 Hz
24/40
SDS
