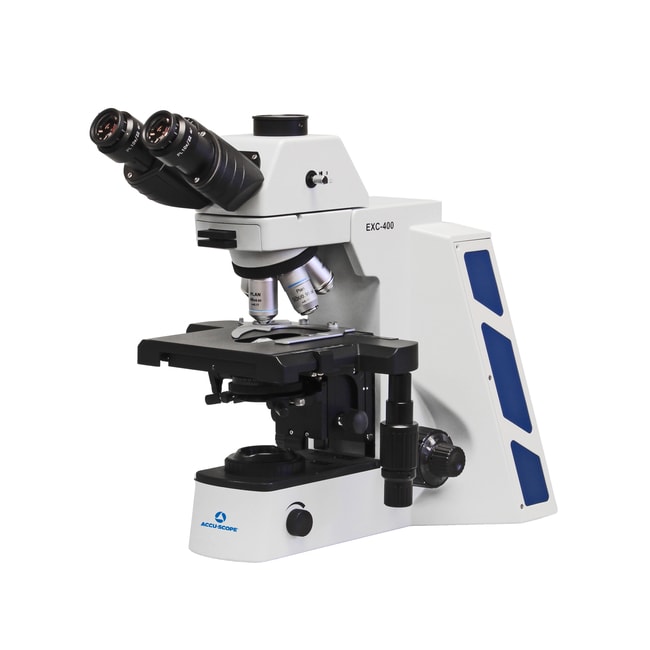

ACCU-SCOPE™ Hematology Configuration- Trinocular Microscope with Infinity Plan Achromat 4x, 10x, 40xR, 50xR oil and 100xR Oil Objectives.

EXC-400-HEMA features Infinity plan achromat objectives (4x, 10x, 40xR, 50xR oil, 100xR oil) for examining blood abnormalities, WBC counts, sickle cell, hemophilia, and clotting disorders.

Supplier:  ACCU-SCOPE™ EXC400HEMA

Catalog No. 01-000-978

Description

• Optical System: Infinity optical system, f = 180 mm, anti-mold
• Trinocular viewing head, inclined 30°, rotatable 360°
• Infinity plan achromat 4x, 10x, 40xR, 50xR oil and 100xR oil objectives,
• Eyepieces: WF10x/22 mm focusable eyepieces with eyeguards
• Reversed quintuple ball bearing nosepiece with positive click stops
• Coaxial focusing system with adjustable tension control and upper limit stop; all metal gears, brass for fine focus gear
• Stand: Cast aluminum alloy
• Stages: Hard-coated, rackless mechanical stage with low-position coaxial controls; 175 x 153 mm with X-Y movement range of 76 X 50 mm
• N.A 1.2 swing-out achromatic condenser
• 3 Watt variable LED illuminator with variable intensity control and field iris diaphragm; LED bulb is rated for over 20,000 hours of continued use; universal power supply 110-240V, dust cover
• Warranty: 5 Year limited warranty for parts, labor and electronic components 1 Year warranty on LED bulb

Specifications

• Eyepiece: WF 10X/22 mm
• Lighting Type: LED
• Model: ACCU-SCOPE
• Product Type: Trinocular LED Microscope

• Head Style: Trinocular, 30° Inclined, 360° Rotating
• Magnification Power: 40X, 100X, 400X, 500X, 1000X
• Objective Types: Infinity Plan Achromatic
• Voltage: 110/240 V
