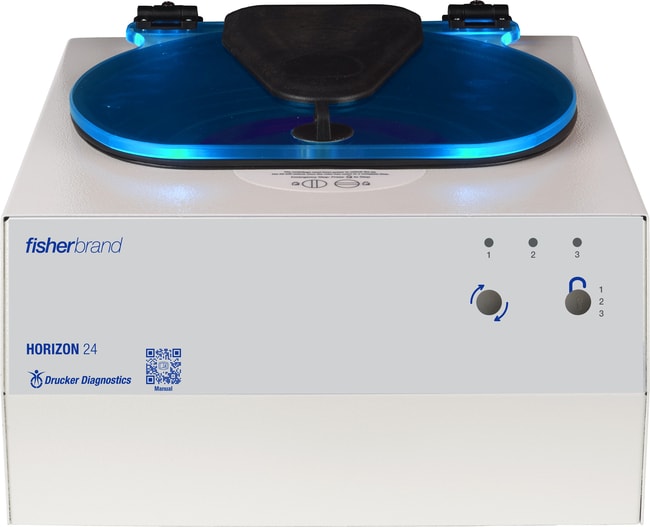

Fisherbrand™ HORIZON™ 24 Clinical Centrifuge

Catalog No.
22-029-675	HORIZON™ 24 Clinical Centrifuge; Type: High-Capacity Clinical Centrifuge, 24 place swing bucket rotor, 3 pre-programmed settings

Catalog No. 22-029-675

Description

Minimize errors and reduce training time with the HORIZON™ 24 Clinical Centrifuge. Set and lock your validated cycles to prevent accidental changes. Further reduce potential errors with the option to lock to a single cycle.

• Patented swing-out 2-stage horizontal rotor design incorporates a unique test tube holder that produces the ideal horizontally separated samples
• 3 easily selectable pre-set cycles conveniently labeled for your lab's most common tubes
• Use the default cycles or settings can be customized
• An LED light indicates the current setting
• Cycle Lock: the control panel can be temporarily lock on one cycle for error-free reproducibility
• Lid lighting indicates the centrifuge's status (ready, running, done) that can be viewed by the technicians from across the room
• Clear Shatterproof Lid: Allows for safe sample observation, optical calibrations, and access for phototachometer
  • Made from high strength polycarbonate
• Automatic Lid Lock: Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning
• Positive Lid Latching: Firm mechanical latching of the lid prevents the escape of debris
• Reinforced Guard Bowl – Provides maximum safety and durability
• Push-button operation
• Removable rotor core for easy cleaning
• Cool-Flow air flow design that prevents overheating of samples
• Brushless DC motor: years of operation with no routine maintenance
• Includes: 6-Place Horizontal Rotor, 4-Place Bucket, and 2 year warranty

Specifications

• Description: 24-place Horizontal Centrifuge, Spin up to 125 mm Tubes and 50 mL
• Includes: Rotor, Tube Holders 24 x 75 to 100 mm, 12 x 125 mm (up to 6 x 50 mL)
• Type: High Capacity Clinical Centrifuge, 24-place Swing Bucket Rotor, 3 Pre-programmed Settings
• Capacity: 24 x 75 to 100 mm, 12 x 125 mm (6 x 50 mL)
• Max. RCF: 2,000 x g
• Max. Speed: 3,400 rpm
• Refrigerated: No
• Profile (Acceleration/Braking): Max Accel: 45 sec., Max Decel: 40 sec.
• Noise Level: 59 dB(A)
• Electrical Requirements: 280 W
• Warranty: 2 Years
• Product Line: FisherBrand
• Height (English) Exterior: 9 in.
• Height (Metric) Exterior: 23 cm
• Length (English) Exterior: 17 in.
• Length (Metric) Exterior: 43 cm
• Memory: 3 Cycles
• Safety Features: Automatic Lid Lock, Positive Lid Latching, Clear Shatter Proof Lid, Reinforced Guard Bowl
• Timer: Electronic
• Width (English) Exterior: 15 in.
• Width (Metric) Exterior: 38 cm
• Rotor: 6-place Horizontal Rotor
• Wattage: 415 W
• Model: Horizon 24
• Ventilated: Yes
• Weight (English): 39 lb.
• Weight (Metric): 17 kg
• For Use With (Application): Clinical
• Quantity: 1 Ea.
• Rotor Included: Yes
• Dimensions (HWD): 23 x 38 x 43 cm (9 x 15 x 17 in.)
• Net Weight: 39 lb. (17 kg)
• Program Storage: 3 Settings
• Run Time: 1 to 30 min.
• Frequency: 50/60 Hz
• Voltage: 100/240 V
