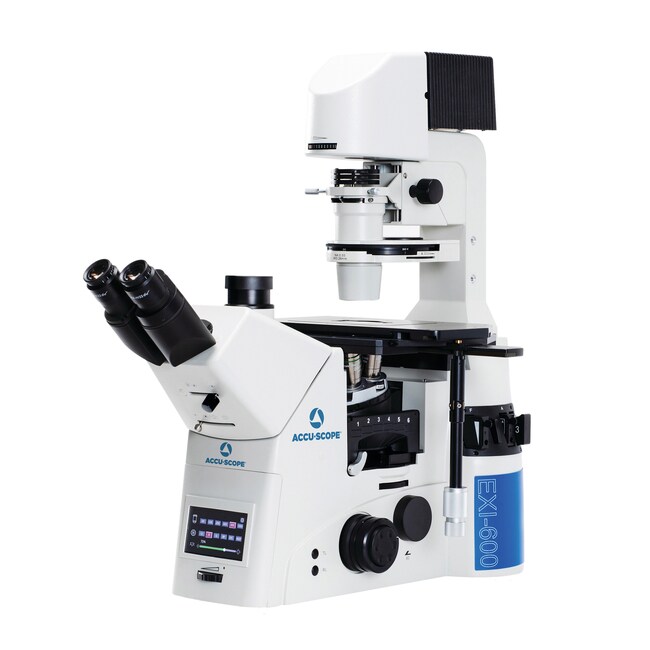

ACCU-SCOPE Inverted Microscope with Phase
SDP

Catalog No. 01189335 Shop All ACCU-SCOPE Products
Change view
Click to view available options
Eyepiece:
WF 10X/22 mm
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Eyepiece
01-189-335 WF 10X/22 mm
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. 01-189-335 Supplier ACCU-SCOPE Supplier No. EXI600PHFP1
Only null left
Add to Cart
Add to Cart
Request a Quote

Description

Microscope for life science research supports advanced live-cell imaging with a modular design and multiple contrast methods.

  • Optical System - Infinity corrected, NIS 60, Focal length: 200 mm
  • Eyepiece-SWF 10X/22
  • Field Number FN18 with C-mount
  • Intermediate Magnification Switching 3-position manual switching 1.0X/1.5X/open
  • Bertrand Lens Manual in/out; focusing
  • Imaging Ports 3 Manual Positions: Eyepiece 100%, Left 100%, Right 80%, Top 80%
  • Focusing Unit Planetary manual coarse/fine, 9 mm movement range, 2 mm/rotation coarse, 0.2 mm/rotation fine
  • Trinocular Tube Inclined 45°, built-in Bertrand lens, interpupillary range 47 to 78 mm, camera port (FN16)
  • 10 W LED, tiltable pillar, focusable/centerable condenser mount for Kohler alignment
  • Long working distance (26 mm), NA 0.55, 6-positions for phase contrast annuli, DIC and brightfield
  • 4-position, 40 mm working distance, NA 0.6
  • 3-plate mechanical stage, 130 x 85 mm moving range, short or flexible long handle, optional holders for 96-well plate, 1 x 3 in. slide, Terasaki plate, universal
  • Sextuple nosepiece, DIC prism slots
  • Fluorescence Illuminator Centerable/adjustable field diaphragm, aperture diaphragm, 3-position filter holder, blank slider
  • PH4X PH10X and PH20X objectives, PH Condenser with PH1and PH2 annulli
  • Operating Conditions Temperature: 0° to 40°C, RH 60% Maximum
  • Power 110-240 V AC Universal Power Supply; Input: 12 V DC 2A
  • Weight approx. 30 kg

Specifications

Voltage 110/240 V
Magnification Power 4X, 10X, 20X
Objective Types Plan Phase
Eyepiece WF 10X/22 mm
Lighting Type LED, Fluorescence
Head Style Trinocular
Camera Type None
Display Type LCD
Model ACCU-SCOPE
Product Type Inverted Phase-contrast Microscope
