SP Hotpack™ IonWash™ Freestanding Mobile Glassware Washer

Catalog No.	Style
15-365-034	DI Water Rinse, Spindle Rack Ready
15-365-014	Tap Water
15-365-015	DI Water Rinse

Catalog No. 15-365-034 Supplier SP Hotpack™ Supplier No. UCWSA20101

Description

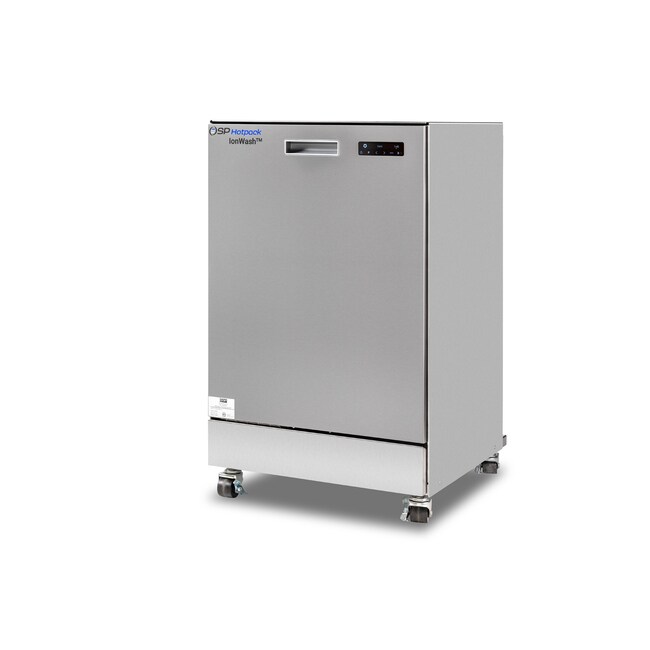

Freestanding, mobile glassware washers are designed with sturdy casters that allow for flexible placement in the lab.

• Engineered to deliver validated sanitization, energy efficiency, and reliable daily performance for modern laboratories.
• Designed with advanced process control and optimized hydraulics to provide consistent cleaning and ISO 15883-compliant sanitization while reducing water and energy consumption.
• Integrates seamlessly into a wide range of laboratory environments, supporting productivity, sustainability, and long-term operational efficiency without added complexity.
• Delivers effective microbial reduction at 86°C while achieving required A0 values, ensuring compliance without excessive thermal exposure.
• Consumes up to 6% less energy compared to systems operating above 90°C, helping lower operating costs without sacrificing results.
• Reduced water consumption without compromising performance – 12 L per Eco Cycle, 16 L per sanitization Cycle.
• Reduces thermal stress on glassware and components with lower temperature sanitization.
• Optimized cleaning system combines precision-controlled processes, efficient spray arm design, and advanced hydraulics to deliver consistent, repeatable outcomes.
• 304 stainless steel exterior casing ensures corrosion protection and long life.
• 3 in. lockable casters allow easy, controlled mobility of unit.

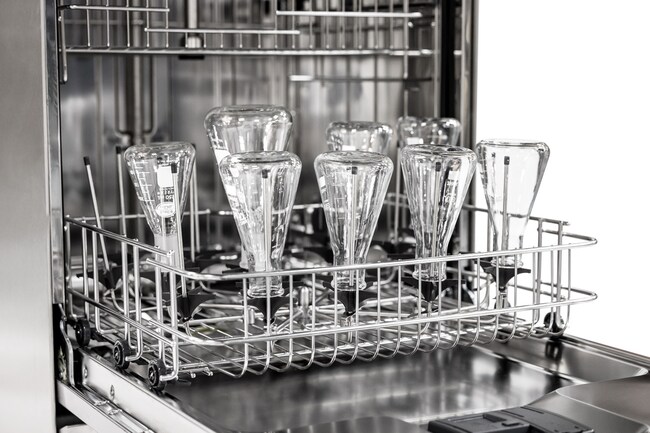

• Supports a wide range of labware including flasks, beakers, bottles, test tubes, and petri dishes, with spindle-ready options for narrow-neck items.

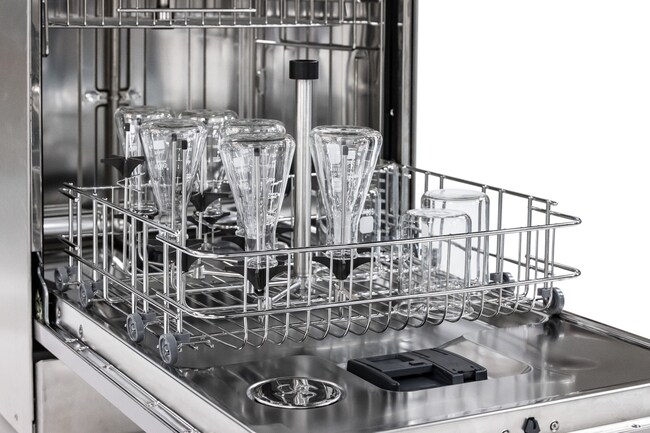

• Spindle rack ready models accommodate direct injection spindle racks (sold separately) for thorough cleaning inside narrow-neck glassware.
• DI rinse models ensure a spotless finish and are easily connect to fixed or portable DI water systems (Optional pump available for DI water sources with less than 18 psi).
• Stainless steel baskets, insert racks and accessories sold separately to maximize space, improve efficiency, and protect specialty glassware.

Specifications

• Display: Digital
• Material: Stainless Steel (304)
• Product Type: Laboratory Glassware Washer
• Volume (English): 6 cu.ft.
• Volume (Metric): 170 L
• Wash Cycles: 9 Wash Cycles
• Water Consumption: 12 L Eco Cycle, 16 L Sanitization Cycle
• Color: Brushed Stainless Steel
• Style: DI Water Rinse, Spindle Rack Ready
• Certifications/Compliance: UL61010-1, CSA 22.2 61010-1
• Depth (English): 24.25 in.
• Depth (English) Interior: 18 in.
• Depth (Metric): 616 mm
• Depth (Metric) Interior: 457 mm
• Dimensions (D x W x H) Interior: 18 x 21 x 25 in.
• Height (English): 38.5 in.
• Height (English) Interior: 25 in.
• Height (Metric): 978 mm
• Height (Metric) Interior: 635 mm
• Width (English): 24 in.
• Width (English) Interior: 21 in.
• Width (Metric): 610 mm
• Width (Metric) Interior: 533 mm
• Weight (English) Shipping: 200 lb.
• Weight (Metric) Shipping: 90.7 kg
• Amperage: 15 A
• Electrical Rating: Domestic
• Electrical Requirements: 120V, 60Hz, 15A with NEMA 5 to 15P Power Cord
• Voltage: 120 V
