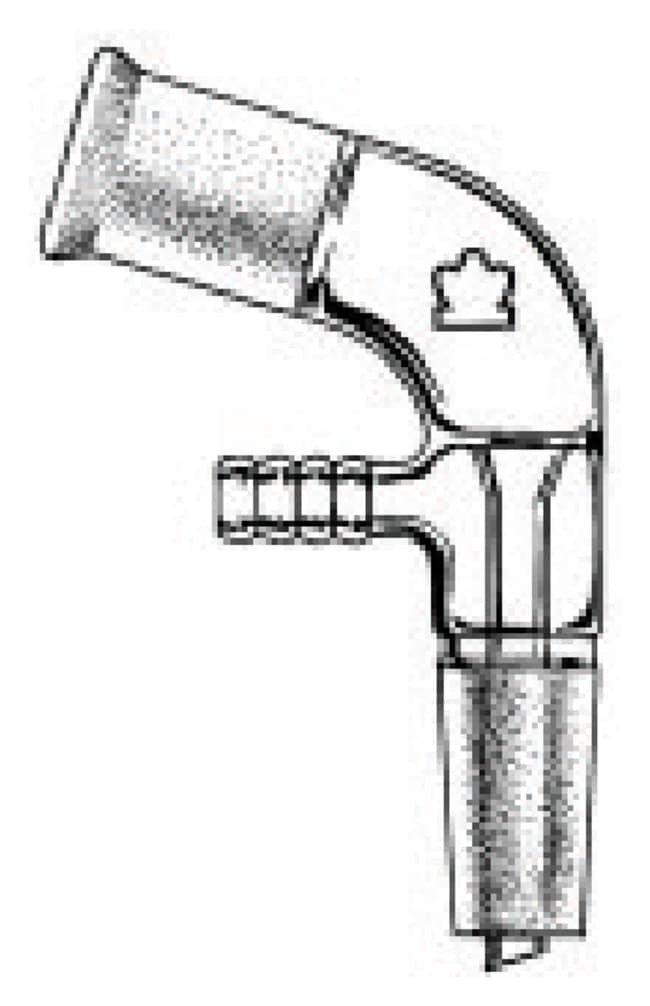

DWK Life Sciences Kimble™ Kontes™ 105° Bent Distillation Adapter with Vacuum Take-Off and Inner Hose Connection
SDP

Catalog No. K2764000000 Shop All DWK Life Sciences Products
Change view
Click to view available options
Standard Taper Joint No.:
14/20
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Standard Taper Joint No.
K276400-0000 14/20
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. K276400-0000 Supplier DWK Life Sciences Supplier No. 2764000000
Only null left
Add to Cart
Add to Cart

Description

105 degree bent distillation adapter with vacuum take-off and inner hose connection.

  • Barbed hose connection
  • Standard Taper inner joint with drip tip at the bottom and Standard Taper outer joint at the top
  • Joints are the same size 14/20
  • Fits tubing ID 1/4 IN
  • Overall height 100mm
  • Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
TRUSTED_SUSTAINABILITY

Specifications

Certifications/Compliance USP Type I, ASTM E438, Type I, Class A
Fits Tubing ID (English) 0.25 in.
Fits Tubing ID (Metric) 6.35mm
Height (English) 4 in.
Height (Metric) 104mm
Includes Vacuum take-off, a hose connector and a drip tip
Material Borosilicate Glass
Product Type Distillation Bent Adapter
Standard Taper Joint No. 14/20
