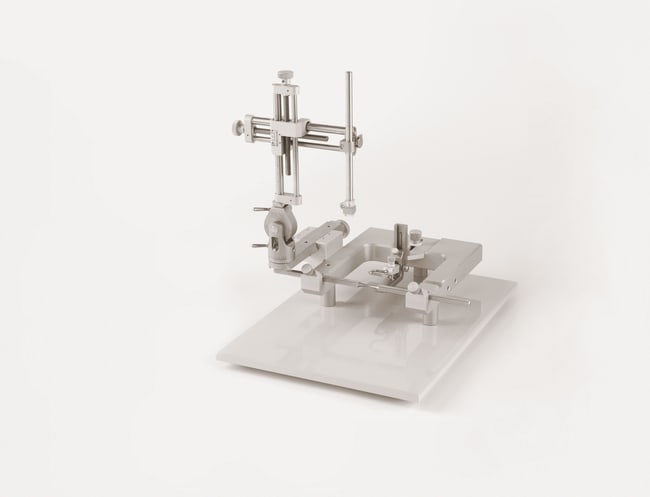

Stoelting™ Lab Standard™ Stereotaxic Instrument for Rats

Classic Lab Standard™ includes a 100 micron 3-axes, left-hand manipulator arm, rat adaptor, traditional (18°) ear bars, and corner clamp probe holder. Available as dual, ultra-precise, digital or motorized.

Supplier:  Stoelting™ 51600

Catalog No. 10-000-133

Description

• Large, easy to read vernier scales Scales are laser engraved — accurate to 100 microns
• Triple lead screws for fast positioning 80 mm of vertical, lateral and anterior-posterior travel
• Absolute lock at 90° (vertical)
• Brass bushings in manipulator arm permit electrical grounding
• Accessories available for use with a wide variety of small animals
• Adaptors available for use with mice, neonatal rats, birds and other species
• Gas anesthesia compatible
• Easily cleaned durable surface
• Warmer ready base compatible with Stoelting Rodent Warmer System
• Versatile Positioning
• Manipulator arm controls medial-lateral and ventral-dorsal using exclusive triple lead screws for faster positioning, and anterior-posterior movement via dovetail slide movement, with 80mm of travel possible in each direction.
• Universal joint allows the researcher to change the angle of the probe up to 90° in either the anterior-posterior or mediallateral planes.
• Improved locking mechanism on the Lab Standard™ will hold any angle position without slipping and provides an absolute lock at 90° vertical.
• Easily-Read Scales
  • Oriented to be easily read from the open end of the U
  • Numerals are large and easy to read.
  • Scale lines are laser engraved, to allow the finest possible permanent marking of scales on all 3 axes.
  • Precise alignment with facing vernier scales gives accurate resolution to 100 microns.
• Smooth, Consistent Movements - Triple-lead screws allow smooth consistent movements with the fastest positioning possible.
• Warmer ready base
• Base Plates are designed to be integrated with the Stoelting Rodent Warmer System (sold separately) and are used to maintain body temperature throughout surgical procedures.
• Thermal heating pads are embedded into base plates to avoid cross contamination with easy clean-up and maintain a sterile environment during stereotaxic surgery.
• Can be used as a general warming system or with a rectal thermal probe (sold separately) for homeothermic regulation.

Specifications

• For Use With (Application): Neuroscience
• Animal: Rat
• Model: Lab Standard for Rats
