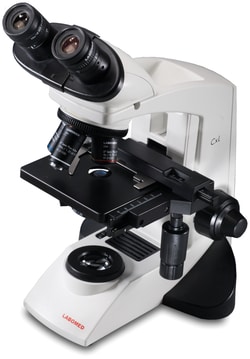

Labomed™ CxL Binocular Laboratory Microscope

Ideal for educational and laboratory applications.

Catalog Number	Mfr. No.	Head Style	Lighting Type
S96030	Labo America Inc 9135006	Binocular	LED

Description

Designed with a semi-plan achromatic optical system that provides true color rendition and contrast. With 100% glass optics and all-brass mechanical components.

• Eyepieces: Lockable 10X/18mm focusable eyepieces, dual diopter adjustments with foldable rubber eye guards, and antifungal coating
• Head: Ergonomic binocular tube with 45° viewing angle, 360° rotatable, interpupillary distance adjustment of 54–74mm
• Objectives: DIN semi-plan achromatic 4X, 10X, 40X, 100X (SL, Oil) objectives with antifungal coating, enable viewing of an assortment of specimens with the highest degree of clarity Stage: 5.31 x 4.88 in. (135 x 124mm) mechanical stage with single specimen holder and low-drive X/Y movement controls, 76 x 50mm X/Y travel range
• Condenser: Abbe 1.25 NA condenser with iris diaphragm
• Stand: Single-mold, rust-resistant stand with ergonomic hand rests that provide comfort and stability
• Illumination: Available with halogen (6V/20w) bulb that provides up to 2000 hours of life or built-in rechargeable LED (3.4V/1w) with up to 100,000 hours of life

Digital Model

• Fixed 1.3MP CMOS (1280 × 960) camera module iVu 1500 Wide-field, focusable paired 10X eyepiece

Order Info

Dimensions: 19L x 15W x 12 in. H (48.3 x 38.1 x 30.5cm). Net weight: 17.1 lb. (7.8kg). Universal input 100–240VAC. For details on optional accessories, contact your Fisher Science Education Representative.

Certifications

UL listed, CE marked

Specifications

• Axis Type: Coaxial Coarse and Fine
• Condenser Type: 1.25 N.A. Abbe with aspheric lens
• Diaphragm: Iris
• Head Style: Binocular
• Objective Types: DIN Semi Plan Achromatic
• Grade: High school
• Nosepiece: 4-position reversed with rubber grip
• Width (English): 15 in.
• Height (English): 12 in.
• Depth (English): 19 in.
• Weight (English): 17.1 lb.
• Electrical Requirements: 100/240 V 50/60 Hz
• Frequency: 50/60 Hz

• Base Style: Single mold Aluminum Die cast with ergonomic handrests
• Design Type: Mechanical
• Eyepiece: WF10X/18 mm
• Magnification Power: 4X, 10X, 40X, 100X
• For Use With (Application): Educational and laboratory application
• Includes: Power cable (6ft.), cargille immersion oil, Nylon dust cover and cleaning Cloth, Styrofoam casing, operation manual, allen wrench, power cord, spare bulb and spare fuse
• Optical Design: Semi plan achromatic
• Width (Metric): 38.1 cm
• Height (Metric): 30.5 cm
• Depth (Metric): 48.3 cm
• Weight (Metric): 7.8 kg
• Voltage: 100/240 V
