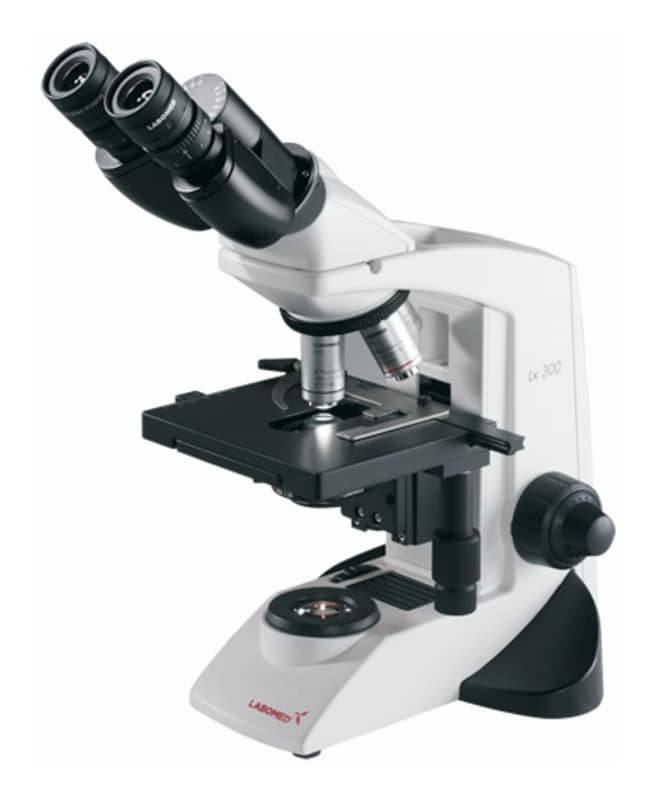

LABOMED™ Lx 300 LED Laboratory Microscope

Mobile and easy to use. LABOMED™ Lx 300 LED Laboratory Microscope features comfortable viewing angle, light weight construction, and built-in LED LioN illumination system.

Catalog Number	Mfr. No.	Head Style
S37242	Labo America Inc 9136001	Binocular

Description

Stand:

• Single mold sturdy stand with anti-rust materials
• Ergonomic base for hand rest and greater stability

Viewing Body:

• Siedentopf Binocular (Butterfly style) or Trinocular head
• 45° inclined, 360° rotatable, with adjustable viewing height up to 40mm
• IPD: 48 - 75mm

Eyepieces:

• Wide field 10x/18mm with foldable eye guards, lockable, antifungal

Nosepiece:

• Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip

Objectives:

• EP2 Plan Achromat DIN Infinity objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal

Mechanical stage:

• Double plate stage 150 x 135mm, X-Y travel range 75mm x 40mm with low-height controls
• Hard coated surface for scratch resistance
• Double specimen holder

Condenser:

• Sub stage Abbe condenser NA 1.25 with aspheric lens
• Iris diaphragm with blue daylight filter
• Rack and pinion movements on metal guides

Focusing:

• Coaxial coarse and fine focus on ball drive system for smooth operation

Illumination:

• Intensity controlled LED (up to 50,000 hours of LED life)

Electrical requirements:

• Universal input 100V - 240V AC, 50/60Hz
• Built-in voltage stabilizer

Optional Accessories:

• Dark field kit, phase contrast kit, video adapter, digital camera and mirror attachment

Certifications

CE/UL

Warranty and Services

5 years parts and 1 year electrical

Specifications

• Condenser Type: 1.25 NA Abbe condenser
• Lighting Type: LED
• Model: Lx 300
• Resolution: Coarse and fine
• Includes: Power cable (6 ft.), Cargille immersion oil, Spare bulb (20w version only), Nylon dust cover and cleaning cloth, Styrofoam casing
• Electrical Requirements: 100/240 V 50/60 Hz

• Eyepiece: 10X/18 mm with Foldable Eyeguard
• Magnification Power: 4X, 10X, 40X, 100X
• Product Type: Microscope
• For Use With (Application): Education, Biology, Laboratory
• Nosepiece: Reverse angle quadruple nosepiece
