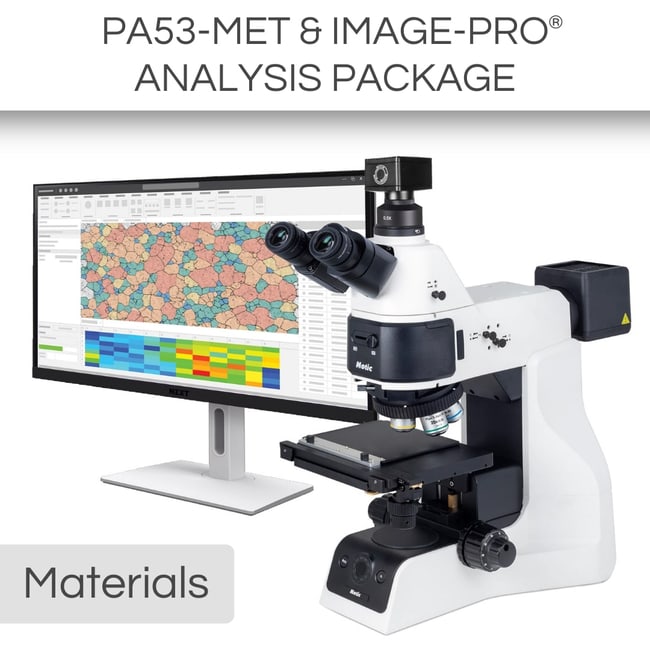

Motic™ Material Science Package: PA53MET-BD Trino Upright Microscope w/ Moticam S6 and Image-Pro Materials (2D) Software

This Material Science Package includes PA53MET-BD w/ 100W Reflected Illumination Trinocular Upright Microscope, Moticam S6 USB Camera, Image-Pro - Materials Package for Motic (2D), 0.5X C-Mount camera adapter

Supplier:  Motic™ MBPA53BDMS6MAT1

Catalog No. 01-673-126

Description

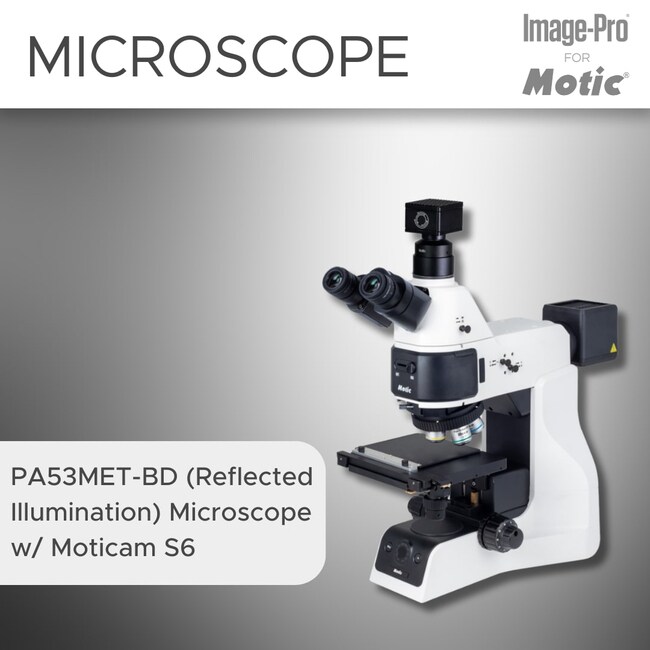

• Microscope: PA53MET-BD w/ 100W Reflected Illumination Trinocular Upright Microscope
• The PA53MET-BDis superior solution for industrial quality control and analysis of opaque materials. Crisp and clear images are guaranteed thanks to the newly designed Semi-Apochromatic Brightfield and Darkfield objectives. The eyepieces have a 25mm FOV, ahead of any standard. The powerful 100W Halogen illumination features the ECO Function, a power-saving mode. The quintuple coded nosepiece recalls the last light intensity used for a smoother workflow. The incident illumination provides a variety of Contrast Methods: Brightfield and Darkfield are the standards, DIC is a powerful optional tool for the visualization of scratches or other tiny surface defects of opaque samples. The PA53MET BD is a pure incident illumination model for reflective materials.
• Digital Camera: Moticam S6 USB Camera
• The Hi-Res Partner Moticam S6 is designed for those application fields which need higher resolution. Presentations to a greater audience through video projector and reports in hardcopy are performed with ease. With 6 million pixels and a fast data readout, the performance is remarkable!

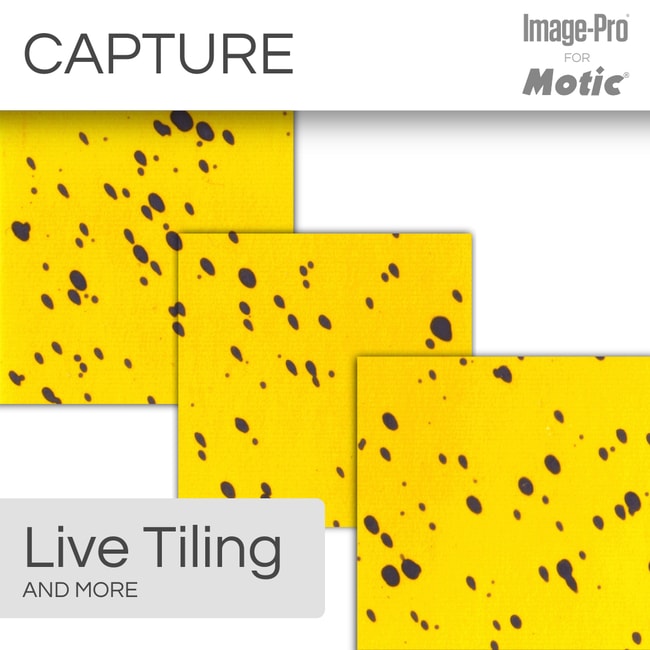

• Software: Image-Pro - Materials Package for Motic (2D)
• Enhance your materials research with the Image-Pro - Materials Package for Motic, developed in partnership with Media Cybernetics. This comprehensive solution integrates advanced Machine Learning technology with a detailed set of protocols to provide precise segmentation, classification, and automated measurements from 2D images. Designed for diverse materials applications, this package boosts your analytical capabilities with efficiency and accuracy.
• Key Features:

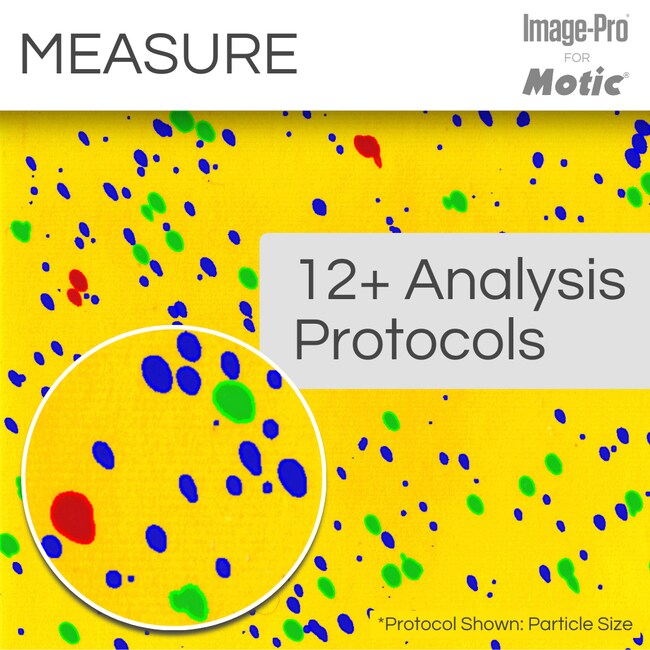

• Machine Learning-Powered Analysis
• Leverage sophisticated Machine Learning algorithms for accurate segmentation and classification, ensuring automated and reliable measurements from 2D images.
• Materials Protocol Collection
• Streamline your research with an extensive suite of protocols ensuring efficient and repeatable analysis processes. Designed for various materials applications, this collection includes protocols for Composite Materials, Fiber Separation, Fiber Thickness, Grain, Layers, Particles Phase, Particle Size, Phases, and Pores.
• Efficiency and Accuracy

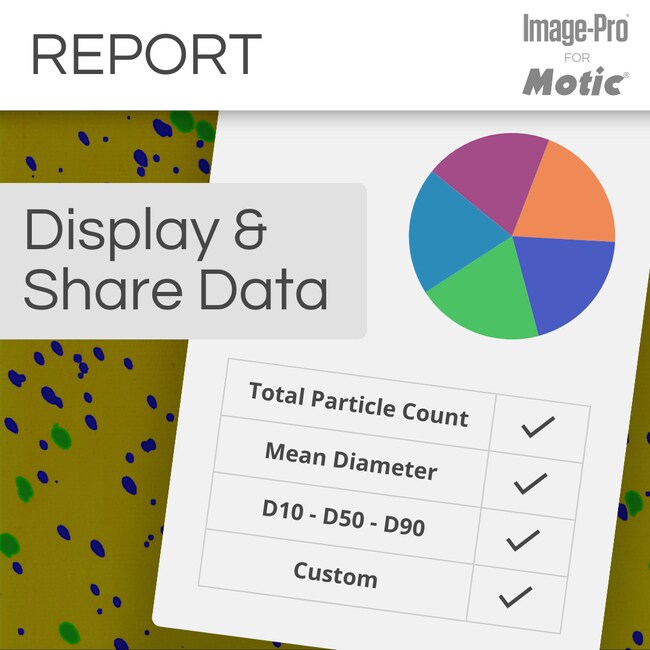

• Achieve high precision in your materials research with automated processes and detailed measurement capabilities. Versatility
• Suitable for a wide range of materials science applications, making it an essential tool for researchers in diverse fields.
• This package also includes a 12-month subscription to a Standard Success Plan from Media Cybernetics, providing ongoing technical assistance and software onboarding so you can focus on the work that truly matters.

Specifications

• Camera Type: Moticam S6
• Head Style: Siedentopf Trinocular, 20° Inclined
• Magnification Power: 5X, 10X, 20X, 50X
• Objective Types: CCIS Plan S-Apochromatic BD
• Nosepiece: Reversed quintuple, coded for brightfield and darkfield objectives with DIC slot
• Voltage: 110/240 V

• Eyepiece: WF 10X/25 mm, with ±4 diopter adjustment on both
• Lighting Type: Quartz Halogen, LED
• Model: PA53MET-BD
• Product Type: Trinocular Metallurgical Microscope
• Dimensions (L x W x H): 572 x 246 x 514 mm
