Multi Channel Systems™ MicroElectrode Array

Catalog No. BTX891391 Shop All BTX Harvard Products
Change view
Click to view available options
Product Type:
Mesh MEA
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Product Type
BTX891391 Mesh MEA
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. BTX891391 Supplier Multi Channel Systems™ Supplier No. 891391/DEL

Description

Microelectrode arrays record, amplify, and analyze signals from biological samples in vitro.

Microelectrode Arrays

  • Available for a range of recording systems and applications
  • Manufactured under ISO 9001:2015-certified production and quality-control processes

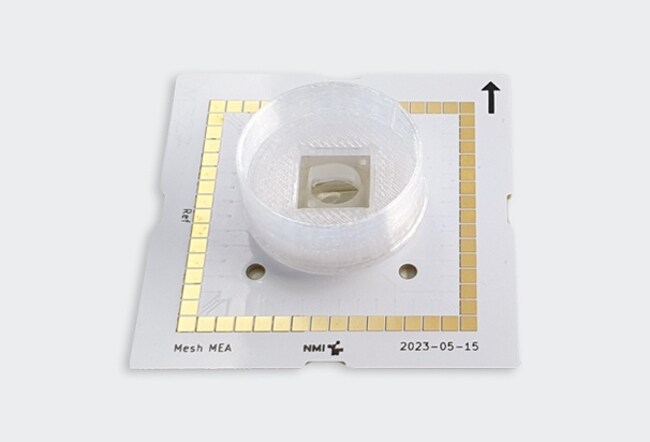

MESH MEA - Recording Inside an Organoid

  • Flexible 60-electrode chip embedded in a slim polyimide mesh to support cell growth around the electrodes
  • TiN electrodes with 200 μm spacing and 30 μm diameter
  • Sampling rate: 50 kHz per channel, resolution: 24-bit
  • Real-time signal detection, feedback, and programmable digital signal processing
  • Digital, analog, and audio inputs and outputs
  • SuperSpeed USB 3.0 connectivity
  • Supports voltage and current stimulation
  • Optical access from the bottom
  • Compatible with MEA2100 series headstages

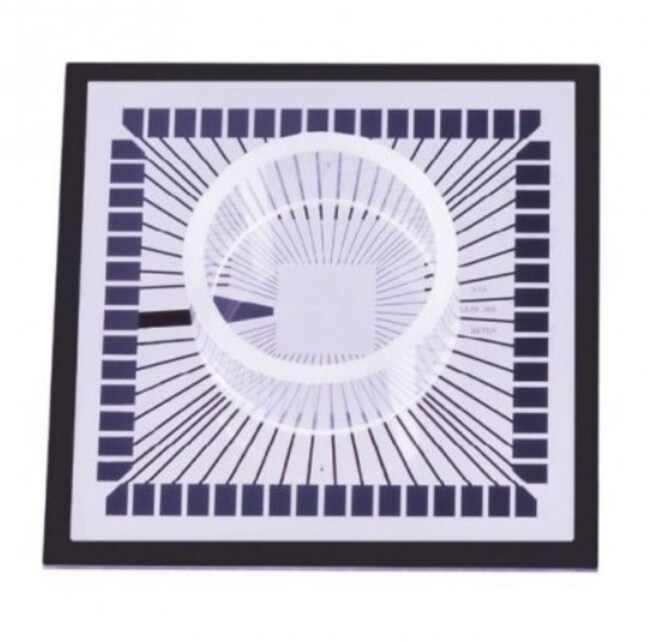

60MEA200/30iR-Ti-gr - Standard Microelectrode Array

  • TiN electrodes with SiN isolator and opaque TiN contact pads and tracks
  • 8 x 8 electrode grid with 59 recording electrodes and 1 internal reference electrode
  • Electrode spacing: 200 μm, electrode diameter: 30 μm
  • Glass ring height: 6 mm; other heights available on request
  • Warranty: 6 months

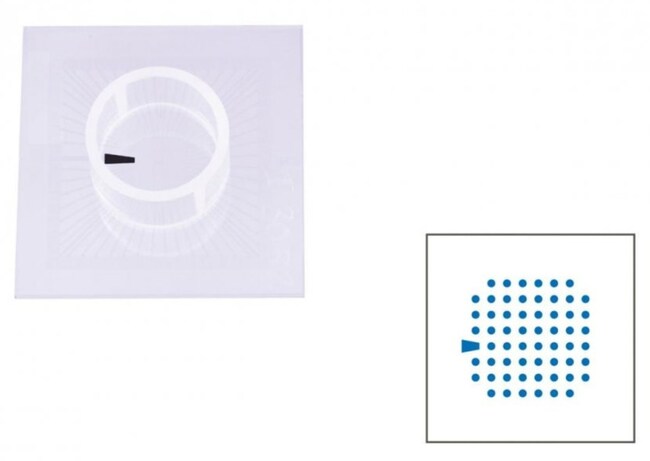

60MEA200/30iR-ITO-gr - Standard Microelectrode Array

  • TiN electrodes with SiN isolator and transparent ITO contact pads and tracks
  • 8 x 8 electrode grid with 59 recording electrodes and 1 internal reference electrode
  • Electrode spacing: 200 μm, electrode diameter: 30 μm
  • Glass ring height: 6 mm; other heights available on request
  • Warranty: 6 months

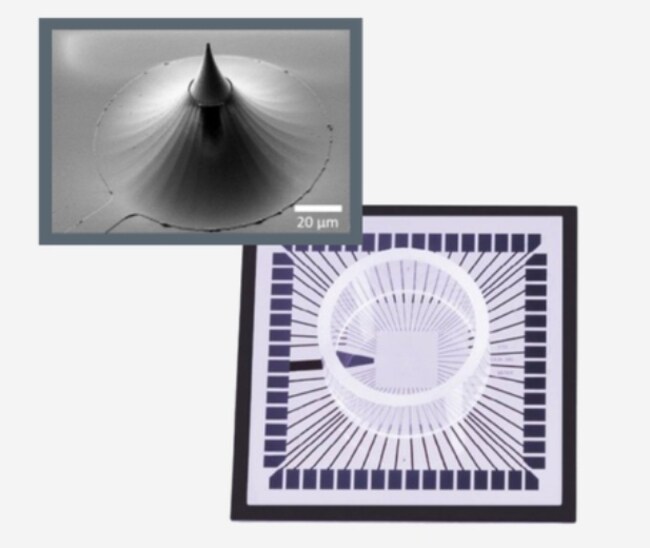

60-3DMEA200/12/80iR-Ti-gr - Three-Dimensional Microelectrode Array

  • TiN electrodes with SiN isolator and opaque TiN contact pads and tracks
  • 8 x 8 electrode grid with 60 electrodes and an internal reference electrode
  • Electrode spacing: 200 μm, electrode diameter: 12 μm, electrode height: 80 μm
  • Glass ring height: 6 mm; other heights available on request
  • One high-impedance electrode may be present due to the 3D electrode etching process
  • Warranty: 6 months

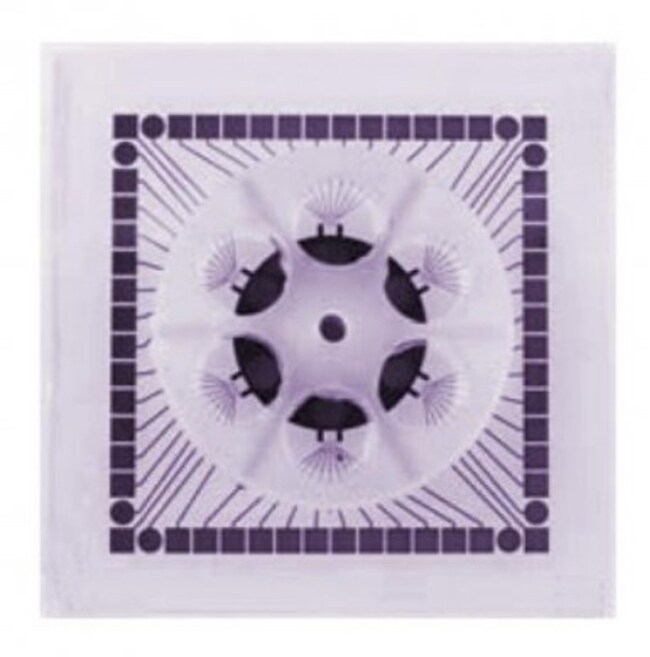

60-6wellMEA200/30iR-Ti-rcr - 6-Well Microelectrode Array

  • TiN electrodes with SiN isolator and opaque TiN contact pads and tracks
  • 6 wells with a 3 x 3 electrode grid and 9 electrodes per well
  • 54 recording electrodes and 6 internal reference electrodes
  • Electrode spacing: 200 μm, electrode diameter: 30 μm
  • Round 6-well chamber with a 10 mm-high Macrolon ring
  • Warranty: 6 months

Specifications

Material TiN
Product Type Mesh MEA
