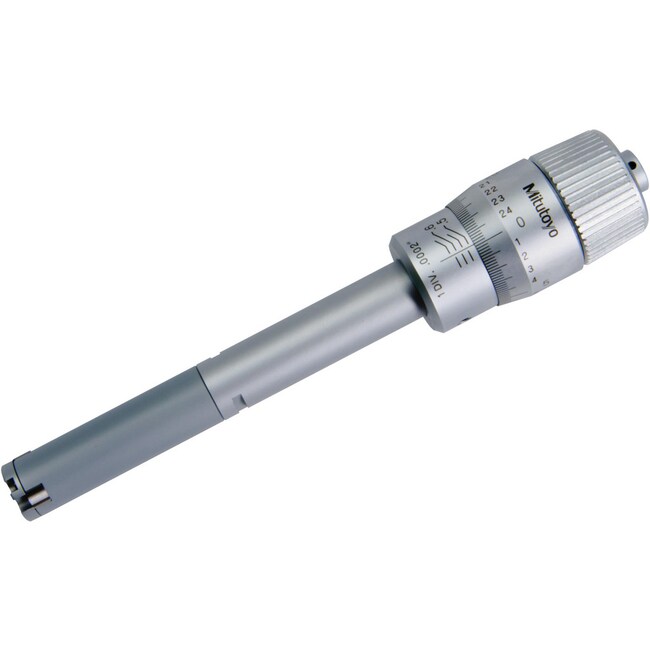

MSC Mitutoyo Mechanical Inside Micrometer, 4-5 in, 0.0002 in Graduation

Catalog No. 5000529626
Encompass

This mechanical inside micrometer provides a 4 to 5 in measurement range with 0.0002 in graduation and 0.000250 in accuracy. It incorporates a ratchet stop thimble for consistent measurements and stable, micrometer-based movement. Designed for precise internal diameter (ID) measurements, it utilizes a highly stable three-point self-centering action with three anvils evenly spaced at 120 degrees.

  • Highly stable three-point self-centering action
  • Three anvils evenly spaced at 120 degrees for accurate ID measurement
  • Measurement can be taken closer to the bottom of blind bores
  • Can measure deep holes using an extension rod (optional)
  • Contact points and cone are made from an alloy tool steel with a hardness of HRC60.5 or more
  • Micrometer-based movement
  • Stable design
  • Includes plastic case

Catalog No. 50-005-29626 Supplier MSC Supplier No. 06414650
May include imposed supplier surcharges.
Add to Cart
Add to Cart

missing translation for 'validMainframeMsg'

This mechanical inside micrometer provides a 4 to 5 in measurement range with 0.0002 in graduation and 0.000250 in accuracy. It incorporates a ratchet stop thimble for consistent measurements and stable, micrometer-based movement. Designed for precise internal diameter (ID) measurements, it utilizes a highly stable three-point self-centering action with three anvils evenly spaced at 120 degrees.

  • Highly stable three-point self-centering action
  • Three anvils evenly spaced at 120 degrees for accurate ID measurement
  • Measurement can be taken closer to the bottom of blind bores
  • Can measure deep holes using an extension rod (optional)
  • Contact points and cone are made from an alloy tool steel with a hardness of HRC60.5 or more
  • Micrometer-based movement
  • Stable design
  • Includes plastic case
