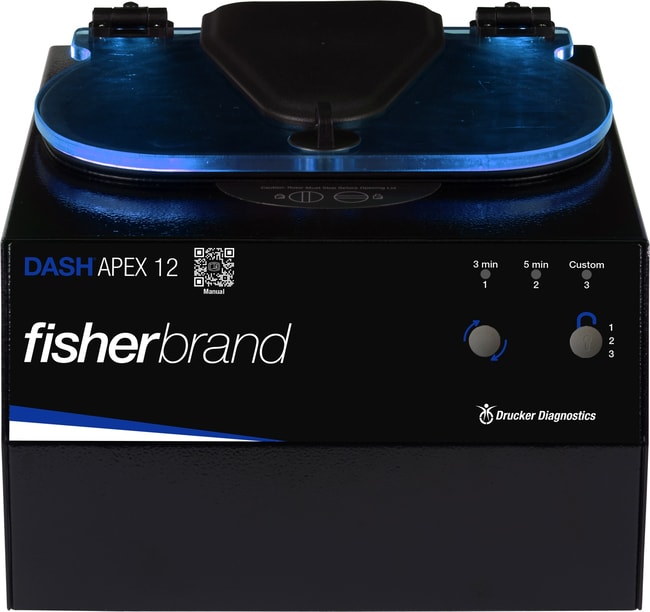

Fisherbrand™ DASH Apex 12 Centrifuge

Catalog No.	Capacity
22-029-557A	12 x 75 mm to 100 mm (3 mL to 10 mL)

Catalog No. 22-029-557A

Description

Pre-programmed to provide high performance STAT processing of gel or non-gel tubes to meet the needs of the most demanding lean laboratories. Model 12 Centrifuge V2 has a high g-force capability can provide 3-minute sample separation to make your lab even more efficient.

• High RPM (up to 5200 rpm) and high g-force capability (4000 x g)
• Patented swing-out 2-stage horizontal rotor design produces optimal sample separation
• 3 easily selectable pre-set cycles conveniently labeled for your lab's most common tubes
  • Use the default cycles or settings can be customized
  • An LED light indicates the current setting
• Cycle Lock: the control panel can be temporarily lock on one cycle for error-free reproducibility
• Lid lighting indicates the centrifuge's status (ready, running, done) that can be viewed by the technicians from across the room
• Clear Shatterproof Lid: Allows for safe sample observation, optical calibrations, and access for phototachometer
  • Made from high strength polycarbonate
• Tube holders are made from carbon fiber reinforced composite materials for high strength and durability
• Automatic Lid Lock: Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning
• Positive Lid Latching: Firm mechanical latching of the lid prevents the escape of debris
• Reinforced Guard Bowl: Provides maximum safety and durability
• Push-button operation
• Removable rotor core for easy cleaning
• Cool-Flow air flow design that prevents overheating of samples
• Brushless DC motor: years of operation with no routine maintenance
• Includes: 12-Place Horizontal Rotor, universal tube holders, and 2 year warranty

Specifications

• Acceleration Time: 20 sec.
• Controller Type: Push Button
• Description: Horizontal Centrifuge, 12-place, 3 Preset Cycles
• Capacity: 12 x 75 mm to 100 mm (3 mL to 10 mL)
• Max. RCF: 4,000 x g
• Max. Speed: 5,200 rpm
• Product Line: Fisherbrand
• Refrigerated: No
• Display: Push Button
• Drive System: 1/2 H.P. Brushless DC
• For Use With (Equipment): Clinical
• Includes: Swing-out 2-stage Horizontal Rotor, Tube Holders
• Memory: 3 Settings
• Model: DASH Apex 12
• Noise Level: 61 dB(A)
• Profile (Acceleration/Braking): Max Accel: 35 sec., Max Decel: 40 sec.
• Program Storage: 3 Preset Cycles
• Quantity: 1 Ea.
• Rotor: 12-place Horizontal
• Rotor Included: Yes
• Run Time: 1 to 30 min.
• Safety Features: Automatic Lid Lock, Positive Lid Latching, Clear Shatter Proof Lid, Reinforced Guard Bowl
• Timer: Electronic
• Type: Horizon Centrifuge, 12-place
• Ventilated: Yes
• Warranty: 2 Years
• Dimensions (L x W x H) Exterior: 15 x 13 x 9 in. (38.1 x 33 x 22.9 cm)
• Length (English) Exterior: 15 in.
• Length (Metric) Exterior: 38 cm
• Width (English) Exterior: 13 in.
• Width (Metric) Exterior: 38 cm
• Height (English) Exterior: 9 in.
• Height (Metric) Exterior: 23 cm
• Net Weight: 34 lb. (15 kg)
• Electrical Requirements: 415 W
• Voltage: 100/240 V
• Wattage: 415 W
• Frequency: 50/60 Hz

Safety and Handling

WARNING: Cancer - www.P65Warnings.ca.gov
