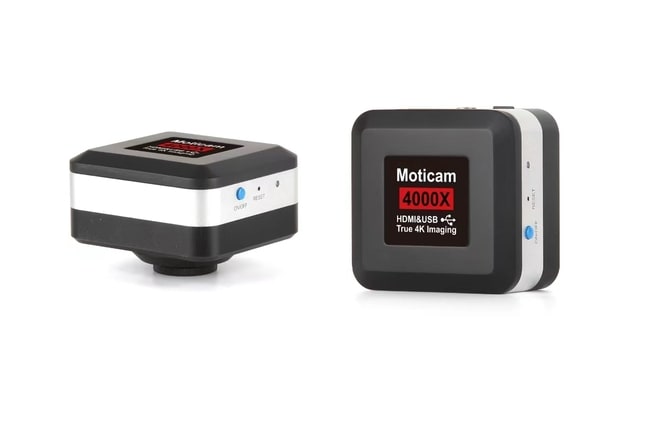

National Optical™ New Multi-output Camera
SCI_ED

Catalog No. S012584
Change view
Click to view available options
Voltage:
110/220 V
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Voltage
S012584 110/220 V
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. S012584 Supplier National Optical™ Supplier No. DMOTICAM 4000X
Only null left
Add to Cart
Add to Cart

Description

Microscope camera with HDMI, USB, and WiFi5 simultaneous output.

  • Sensor Type: CMOS
  • Sensor size: 1/2.8 in.
  • Light sensitive area: Diagonal 6.4 mm
  • Capture resolution: 8 MP (3862 x 2228 pixels)
  • Pixel size: 1.45 x1.45 μm
  • Scan mode: Progressive
  • Shutter mode: Rolling shutter
  • HDMI: Linux 4.9 OS

Interface and key functions

  • USB 2.0: a type female chassis, host, mouse support
  • USE 3.0: a type female chassis connector, device, UVC
  • HDMI: 3840 x 2160 at 30HZ
  • Network port: 100 Mbps RJ45 (no indicator)
  • SD Card: SD2.0, SD3.0 support (SDHC, SDXC card support)
  • Power button: flick switch
  • WiFi reset button: Long press to reset
  • LED indicator: Red light: power indicator, always on when power on standby. Green light: power on indicator, blinking when power on, always on after power on.

Video Encoding

  • WIN/MAC: MJPG/H264
  • USB 2.0 and USB 3.0: 2840 x 2160, 1920x1080, and 960 x 540

Specifications

Type Microscope Camera
Autoclavable Not Autoclavable
Sterility Sterile
Voltage 110/220 V

Safety and Handling

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
