Chemglass Life Sciences Valve, NMR Tube, Viton O-Rings, Complete with Glass Body, TFE Plug and Control Knob
SDP

Catalog No. CG51201
Encompass_Preferred

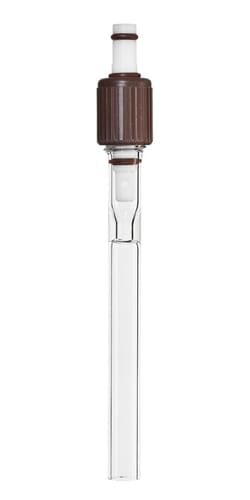

Valve, NMR Tube, Viton O-Rings, Complete with Glass Body, TFE Plug and Control Knob. Valve only is designed to be sealed to the top of either 5 or 10mm O.D. NMR tubes. Upper portion of the stem is extended with an additional o-ring for attachment to a piece of 7mm I.D. tubing which in turn can be sealed to any number of standard taper joints. This feature allows for a sample to be dispensed directly from a vacuum line port into the NMR tube. Valve is symmetrically balanced and has Viton o-rings on both the barrel and top stem seal. Valve is tooled on 9mm O.D. standard wall tubing. Complete valve consists of a glass body, TFE plug with two o-rings and Delrin-AF control knob. Plug has three o-rings, (2) #007 and (1) #008.NOTE: NMR TUBES MUST BE PURCHASED SEPARATELY.

Catalog No. CG51201 Supplier Chemglass Life Sciences Supplier No. CG51201
May include imposed supplier surcharges.
Add to Cart
Add to Cart

missing translation for 'validMainframeMsg'

Valve, NMR Tube, Viton O-Rings, Complete with Glass Body, TFE Plug and Control Knob. Valve only is designed to be sealed to the top of either 5 or 10mm O.D. NMR tubes. Upper portion of the stem is extended with an additional o-ring for attachment to a piece of 7mm I.D. tubing which in turn can be sealed to any number of standard taper joints. This feature allows for a sample to be dispensed directly from a vacuum line port into the NMR tube. Valve is symmetrically balanced and has Viton o-rings on both the barrel and top stem seal. Valve is tooled on 9mm O.D. standard wall tubing. Complete valve consists of a glass body, TFE plug with two o-rings and Delrin-AF control knob. Plug has three o-rings, (2) #007 and (1) #008.NOTE: NMR TUBES MUST BE PURCHASED SEPARATELY.
