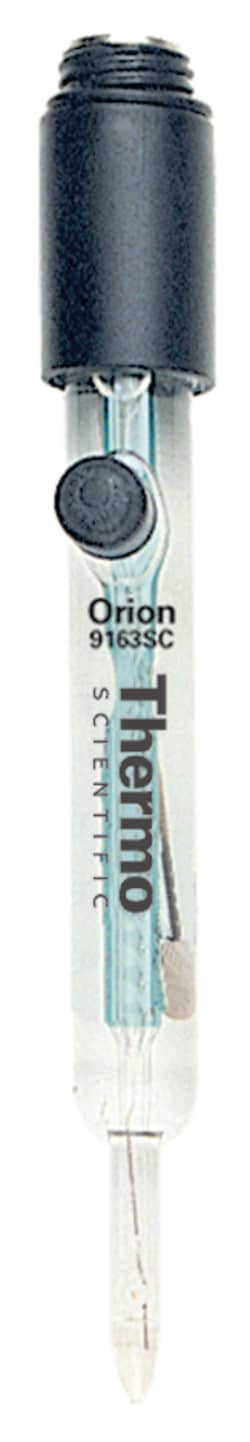

Thermo Scientific™ Orion™ Single Junction Semi-Micro Spear Tip Glass Bodied Combination pH Electrode

Catalog No.	Type
13-641-18	Specialty Spear Tip Electrode

Catalog No. 13-641-18 Supplier Thermo Scientific™ Supplier No. 9163SC

Description

Pierce soft and semi-solid samples like cheese, meat, or fruit with a refillable spear tip pH electrode.

Thermo Scientific™ Orion™ Spear Tip pH Electrodes provide reliable and accurate measurements of routine samples. Best suited for piercing solid/semi-solid samples and measuring small volume samples.



Orion™ Single Junction Electrodes provide a reliable option for routine pH measurement. These silver chloride electrodes are available in a variety of styles and provide accurate measurements of typical samples.

Solutions required:

• Electrode fill solution
  • 900011 4 M KCl with Ag/AgCl filling solution, 5 x 60 mL bottles

• Electrode storage solution

  • 910001 pH electrode storage solution, 475 mL bottle

• pH buffers

  • 910168 pH 1.68 buffer, NIST traceable, 475 mL
  • 910104 pH 4.01 buffer, color coded Red, NIST traceable, 475 mL
  • 910105 pH 5.00 buffer, color coded Orange, NIST traceable, 475 mL
  • 910686 pH 6.86 buffer, DIN standard, NIST traceable, 475 mL
  • 910107 pH 7.00 buffer, color coded Yellow, NIST traceable, 475 mL
  • 910918 pH 9.18 buffer, DIN standard, NIST traceable, 475 mL
  • 910110 pH 10.01 buffer, color coded Blue, NIST traceable, 475 mL
  • 910112 pH 12.46 buffer, NIST traceable, 475 mL
  • 910199 Standard All-in-one pH buffer kit, includes pH 4.01, 7.00 and 10.01 buffers, 475 mL each, pH electrode storage solution, 475 mL, and 12 mm electrode storage bottle

pH cleaning solution kit

• 900020 Cleaning solution A and C, 30 mL each, B and D, 60 mL each

Accessories

• 91CBNC Detachable screw cap to BNC connector

Items included with

• 900011 4 M KCl with Ag/AgCl filling solution, 60 mL, 1 bottle

Warranty period

• 12 Months from date of purchase

Specifications

• Description: Specialty Titration Electrode
• Connector Types: S7
• Junction: Ceramic
• Material: Glass Body
• pH Range: 0 to 14
• Temperature (Metric) Operating: 0°C to 100°C
• Type: Specialty Spear Tip Electrode
• For Use With (Equipment): Standard pH Meter
