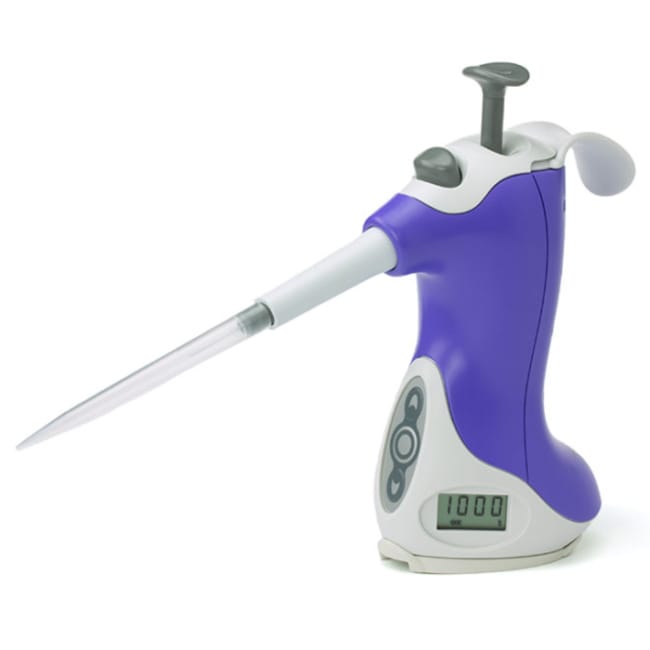

VistaLab™ Ovation Quick-Set (QS) Pipette

Catalog No.	Volume (Metric)	For Use With (Equipment)
09-035-066	1000 μL	300 μL Pipette Tips
09-035-067	300 μL	10 μL and 20 μL Tips
09-035-068	200 μL	10 μL and 20 μL Tips
09-035-069	100 μL	300 μL Pipette Tips
09-035-070	100 μL	200 μL Pipette Tips
09-035-071	20 μL	10 μL to 20 μL
09-035-072	10 μL	200 μL Pipette Tips
09-035-073	2 μL	1000 to 1200 μL Tips

Catalog No. 09-035-066 Supplier VistaLab™ Supplier No. 10571000LF

Description

Ovation™ pipettes have a unique and patented ergonomic design. They are the only pipettes that fully address the issues of posture, repetition, and force to significantly reduce strain and pain that occur from pipetting, while always providing superior accuracy and precision.

• The angled shape allows users to pipette with low arm and elbow height, decreasing tension and associated pain in the neck, shoulder, back, and elbow.
• When used properly, the Ovation™ pipette will keep the user's hand and wrist in the neutral position recommended by ergonomic experts.
• Contoured body shape and adjustable hook assures a comfortable, easy grip, and custom fit hand hold.
• Spring-loaded tip acquisition means a gentle push is all that is required to attach tips, and an audible click confirms secure attachment.
• Tips flick off easily with a low force push of the eject button.
• Special filters in the nozzle prevent liquid from being inadvertently aspirated into the pipettor, protecting it from contamination.
• Ovation™ pipettes are the only pipettes that stand on their own, which means tips never touch the bench, even if the pipette is put down in the middle of a procedure.
• Mechanical models feature two-stroke operation, available with click stop or quick set digital volume adjustment (0.2 μL to 1000 μL)
• Electronic models feature custom volume presets, multi-dispensing, mixing, and serial diluting (0.5 μL to 1250 μL).
• Electronic Macro 5 mL and 10 mL, and electronic 8 and 12 multichannel models available.
• Single channel models include a built-in micro tube cap opener.
• Color-coded for easy and quick volume identification.

Specifications

• Adjustable Tip Spacing: No
• Autoclavable: Not Autoclavable
• Color: Purple
• Disposable: Reusable
• For Use With: Pipette Tips
• Grip Type: Ergonomic
• Material: PVDF
• Number of Channels: 1
• Programmability: No
• Sterility: Non-sterile
• Type: Mechanical Pipette
• Volume (Metric): 1000 μL
• For Use With (Equipment): 300 μL Pipette Tips
