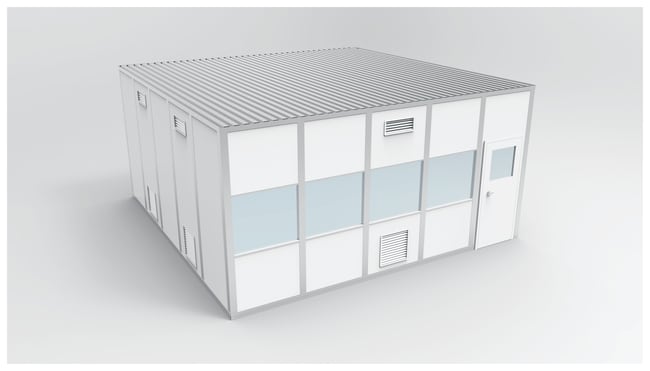

PortaFab CleanLine™ S3000 Modular Wall System Cleanroom - ISO 8
Outfit existing facilities or create freestanding envelope structures with a cleanroom or environmental enclosure
Specifications
Material | 24G Sheet Steel, Polyester Baked Enamel |
---|---|
Color | White |
Height (English) | 120 in. |
Requires: 122cm (48 in. ) T8 bulbs: four per light fixture (not included)
Catalog Number | Mfr. No. | Dimensions (L x W x H) | Filter Type | Lights | Outlets | Price | Quantity & Availability | ||
---|---|---|---|---|---|---|---|---|---|
Catalog Number | Mfr. No. | Dimensions (L x W x H) | Filter Type | Lights | Outlets | Price | Quantity & Availability | ||
19-156-569
|
PortaFab
8CR820 |
2.4 x 6.1 x 3m (8 x 20 x 10 ft.) | 1 HEPA | 2 | 4 | N/A | N/A | N/A | |
19-156-567
|
PortaFab
8CR812 |
2.4 x 3.7 x 3m (8 x 12 x 10 ft.) | 1 HEPA | 1 | 3 | N/A | N/A | N/A | |
19-156-566
|
PortaFab
8CR88 |
2.4 x 2.4 x 3m (8 x 8 x 10 ft.) | 1 HEPA | 1 | 2 | N/A | N/A | N/A | |
19-156-568
|
PortaFab
8CR816 |
2.4 x 4.9 x 3m (8 x 16 x 10 ft.) | 1 HEPA | 2 | 4 | N/A | N/A | N/A | |
19-156-570
|
PortaFab
8CR824 |
2.4 x 7.3 x 3m (8 x 24 x 10 ft.) | 2 HEPA | 3 | 6 | N/A | N/A | N/A | |
19-156-571
|
PortaFab
8CR1212 |
3.7 x 3.7 x 3m (12 x 12 x 10 ft.) | 1 HEPA | 2 | 4 | N/A | N/A | N/A | |
19-156-572
|
PortaFab
8CR1216 |
3.7 x 4.9 x 3m (12 x 16 x 10 ft.) | 2 HEPA | 3 | 4 | N/A | N/A | N/A | |
19-156-573
|
PortaFab
8CR1220 |
3.7 x 6.1 x 3m (12 x 20 x 10 ft.) | 2 HEPA | 4 | 6 | N/A | N/A | N/A | |
19-156-574
|
PortaFab
8CR1224 |
3.7 x 7.3 x 3m (12 x 24 x 10 ft.) | 2 HEPA | 4 | 6 | N/A | N/A | N/A | |
19-156-576
|
PortaFab
8CR1620 |
4.9 x 6.1 x 3m (16 x 20 x 10 ft.) | 3 HEPA | 5 | 6 | N/A | N/A | N/A | |
19-156-581
|
PortaFab
8CR2024 |
6.1 x 7.3 x 3m (20 x 24 x 10 ft.) | 4 HEPA | 8 | 6 | N/A | N/A | N/A | |
19-156-580
|
PortaFab
8CR2020 |
6.1 x 6.1 x 3m (20 x 20 x 10 ft.) | 3 HEPA | 7 | 6 | N/A | N/A | N/A | |
19-156-579
|
PortaFab
8CR1636 |
4.9 x 11 x 3m (16 x 36 x 10 ft.) | 5 HEPA | 8 | 10 | N/A | N/A | N/A | |
19-156-578
|
PortaFab
8CR1630 |
4.9 x 9.1 x 3m (16 x 30 x 10 ft.) | 4 HEPA | 7 | 6 | N/A | N/A | N/A | |
19-156-577
|
PortaFab
8CR1624 |
4.9 x 7.3 x 3m (16 x 24 x 10 ft.) | 3 HEPA | 6 | 6 | N/A | N/A | N/A | |
19-156-575
|
PortaFab
8CR1616 |
4.9 x 4.9 x 3m (16 x 16 x 10 ft.) | 2 HEPA | 4 | 6 | N/A | N/A | N/A | |
19-156-582
|
PortaFab
8CR2030 |
6.1 x 9.1 x 3m (20 x 30 x 10 ft.) | 5 HEPA | 8 | 8 | N/A | N/A | N/A | |
19-156-587
|
PortaFab
8CR2436 |
7.3 x 11 x 3m (24 x 36 x 10 ft.) | 7 HEPA | 12 | 10 | N/A | N/A | N/A | |
19-156-583
|
PortaFab
8CR2036 |
6.1 x 11 x 3m (20 x 36 x 10 ft.) | 6 HEPA | 10 | 10 | N/A | N/A | N/A | |
19-156-586
|
PortaFab
8CR2430 |
7.3 x 9.1 x 3m (24 x 30 x 10 ft.) | 6 HEPA | 10 | 10 | N/A | N/A | N/A | |
19-156-588
|
PortaFab
8CR2448 |
7.3 x 14.6 x 3m (24 x 48 x 10 ft.) | 9 HEPA | 16 | 12 | N/A | N/A | N/A | |
19-156-584
|
PortaFab
8CR2048 |
6.1 x 14.6 x 3m (20 x 48 x 10 ft.) | 8 HEPA | 14 | 10 | N/A | N/A | N/A | |
19-156-589
|
PortaFab
8CR2460 |
7.3 x 18.3 x 3m (24 x 60 x 10 ft.) | 11 HEPA | 20 | 12 | N/A | N/A | N/A | |
19-156-585
|
PortaFab
8CR2424 |
7.3 x 7.3 x 3m (24 x 24 x 10 ft.) | 5 HEPA | 8 | 8 | N/A | N/A | N/A | |
19-156-590
|
PortaFab
8CR3030 |
9.1 x 9.1 x 3m (30 x 30 x 10 ft.) | 7 HEPA | 12 | 10 | N/A | N/A | N/A | |
19-156-595
|
PortaFab
8CR4030 |
12.2 x 9.1 x 3m (40 x 30 x 10 ft.) | 9 HEPA | 16 | 10 | N/A | N/A | N/A | |
19-156-592
|
PortaFab
8CR3048 |
9.1 x 14.6 x 3m (30 x 48 x 10 ft.) | 11 HEPA | 20 | 12 | N/A | N/A | N/A | |
19-156-596
|
PortaFab
8CR4036 |
12.2 x 11 x 3m (40 x 36 x 10 ft.) | 11 HEPA | 20 | 12 | N/A | N/A | N/A | |
19-156-591
|
PortaFab
8CR3036 |
9.1 x 11 x 3m (30 x 36 x 10 ft.) | 8 HEPA | 16 | 10 | N/A | N/A | N/A | |
19-156-593
|
PortaFab
8CR3060 |
9.1 x 18.3 x 3m (30 x 60 x 10 ft.) | 14 HEPA | 24 | 10 | N/A | N/A | N/A | |
19-156-597
|
PortaFab
8CR4048 |
12.2m x 14.6 x 3m (40 x 48 x 10 ft.) | 15 HEPA | 26 | 12 | N/A | N/A | N/A | |
19-156-594
|
PortaFab
8CR4024 |
12.2 x 7.3 x 3m (40 x 24 x 10 ft.) | 8 HEPA | 14 | 10 | N/A | N/A | N/A | |
19-156-598
|
PortaFab
8CR4060 |
12.2 x 18.3 x 3m (40 x 60 x 10 ft.) | 19 HEPA | 32 | 14 | N/A | N/A | N/A | |
Description
- Non-progressive construction allows easy panel change or structure relocation
- 7.6cm (3 in.) thick walls are constructed of 24 ga sheet steel that is painted with polyester baked enamel on each side; steel is laminated to 1.27cm (0.5 in.) gypsum with a 4.9cm (1.94 in.) polystyrene core
- Studs are 6063-T5 aluminum extrusions with a 201R1 anodized clear finish
- Depending on size, some units may require interior columns
- Color is white
- Buildings are 3m (10 ft.) high; rooms do not come with a floor
- Corrugated steel load-bearing roof holds mechanical equipment: 25psf load
- Roof support: structural steel I-beams located on 8 ft. center
- Acoustical ceiling: 61 x 192cm (24 x 48 in.) Class A noncombustible acoustical ceiling with 3.8cm (1.5 in.) gasketed grid and vinyl faced ceiling tiles
- Seamless single steel door on a steel frame
- W x H x D: .9 x 2.1 x .04m (36 x 84 x 1.75 in.)
- Door has a 61 x 61 x .6cm (24 x 24 x 0.25 in.) thick tempered glass window, lever lockset, hinges, sweep and door closer
- Quantities of fittings vary based on room size, see ordering table below for more information
- Modular wired electrical package includes: wall switch, 61 x 122cm (24 x 48 in.) recessed fluorescent light fixture(s) with acrylic lens cover, 110V outlet(s), 61 x 122cm (24 x 48 in.) 115V fan filter unit(s), handy boxes and circuit breaker panel(s) (with breakers)
- Wiring studs permit wiring access on one side
- HEPA filter(s)
- 46 x 61cm (18 x 24 in.) and/or 61 x 61cm (24 x 24 in.) return air grill(s)
- Single pass and recirculating cleanrooms
- Cost effective enough for simpler applications, such as basic process segmentation or controlling air quality, temperature or humidity
Compliance
Meets the specifications of ISO 8 cleanrooms
Specifications
24G Sheet Steel, Polyester Baked Enamel | |
White | |
120 in. |
Local municipalities, townships and villages independently establish, adopt and interpret building codes; Therefore, PortaFab cannot represent that this structure will meet all local building codes; It is your responsibility to determine code compliance
