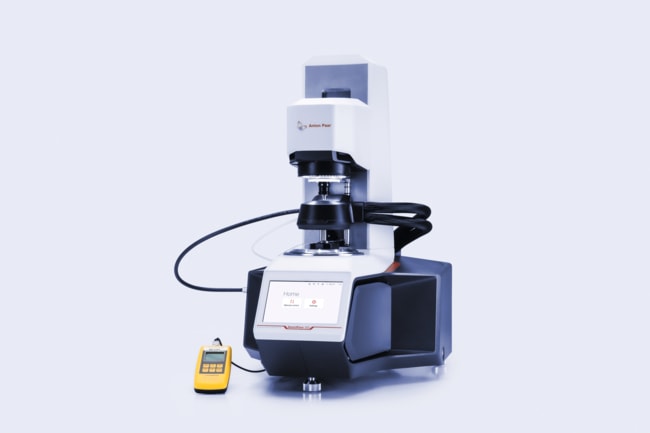

Anton Paar Rheometer for research and development of asphalt and bitumenIlluminated sample area for perfect trimming resultsUpgradeable for tests on solid mastic materialsSuitable for measurements of rubber-modified bitumen and at low tem

Supplier:  Anton Paar 224624

Encompass_Preferred

MCR 303 SmartPave SpecificationsBearing design: Air, fine-pored carbonMotor design: Electronically commutated (EC) permanent magnet synchronous motorDisplacement transducer: High-resolution optical encoderNormal force measurement design: 360 ° capacitive sensor, non-contacting, fully integrated in bearing.Working Mode: Combined Motor Transducer (CMT)Min. torque (rotation): 5 nNmMin. torque (oscillation): 1 nNmMax. torque: 215 mNmMinimum angular velocity (set value): 0 rad/sMaximum angular velocity (set value): 314 rad/sMaximum speed: 3,000 rpmMinimum frequency: 2 x 10-8 HzMaximum angular frequency: 200 HzNormal force range: -50 to +50 NThree-point support of device(three robust feet for tool-free one hand alignment)Three-point support for mounting of measuring cells(wobble prevention, no misalignment after changing of cells)Maximum temperature range: -170 to +1000 °CVirtually gradient-free temperature control(horizontal,vertical)Temperature gradient <0.1

Catalog No. 50-005-80516
