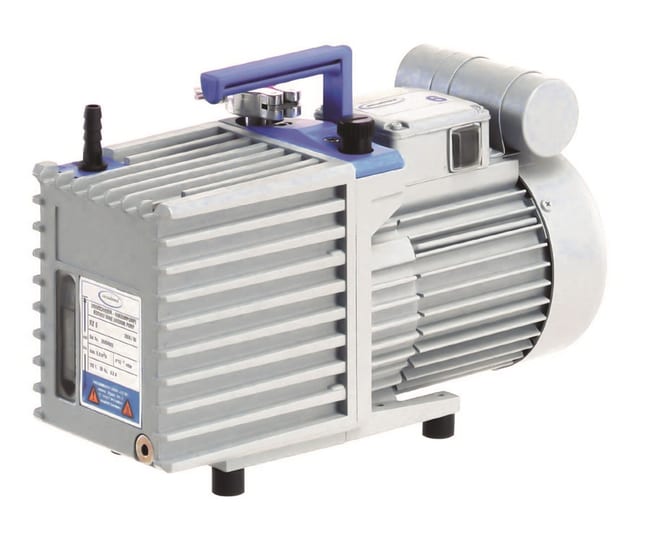

BRANDTECH™ BRAND™ RZ 6 Rotary Vane Vacuum Pump

Compact yet powerful, the RZ 6 Rotary Vane Vacuum Pump delivers a low ultimate vacuum with a medium to high gas flow rate, making it ideal for demanding applications.

Supplier:  BRANDTECH™ BRAND™ 20798136

Catalog No. 13-700-448

Description

• Powerful Performance:
  • Ultimate vacuum: 2 x 10^-3 mbar / 1.5 x 10^-3 torr
  • Ultimate vacuum with gas ballast: 1 x 10^-2 mbar / 0.75 x 10^-2 torr
  • Ultimate partial vacuum (without gas ballast): 4 x 10^-4 mbar / 3 x 10^-4 torr
  • Water vapor tolerance: 40 mbar / 30 torr
• Reliable and Efficient Design:
  • Two-stage rotary vane pump for high-performance vacuum generation
  • Large oil volume extends maintenance intervals
  • Efficient gas ballast design ensures high water vapor tolerance and excellent vacuum performance
  • Telescopic design for easy maintenance
• Technical Specifications:
  • Rated motor power: 0.18 kW
  • Rated speed (50/60 Hz): 1500/1800 min^-1
  • Inlet connection: Small flange KF DN 16
  • Outlet connection: Hose nozzle DN 8-10 mm

Specifications

• Max. Vacuum: 4 x 10^-4 mbar / 3 x 10^-4 Torr
• Shipping Weight (Metric): 17 kg
• Certifications/Compliance: NRTL
• Dimensions (L x W x H): 420 x 156 x 240 mm (16.5 x 6.1 x 9.4 in.)
• Noise Level: 50 dBA
• Frequency: 50/60 Hz
• Enclosure Rating: IP40
• Applications: Degassing, Lyophilization, Fine Vacuum, Drying Chambers
• No. of Stages: 2
• Voltage: 100/115/220/230 V

• Shipping Weight (English): 37.5 lb.
• Includes: Pump, Oil, Manual
• Electrical Requirements: 100-115V / 220-230V
• Model: RZ 6
• Flow Rate: 5.7 m³/h (50 Hz) / 4.0 cfm (60 Hz)
• Pump Type: Rotary Vane Vacuum Pump
• Oil Capacity: 0.73 L
• Oil Type: B-Oil for rotary vane pumps
• Maximum Pressure: 1.1 bar / 16 psi
