Mopec Scissor Lift, End and Side-Loading
SDP

Catalog No. 22030589 Shop All Mopec Products
Change view
Click to view available options
Width (English):
28.5 in.
30 in.
34 in.
3 product options available for selection
Product selection table with 3 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Width (English)
22-030-589 28.5 in.
22-030-590 30 in.
22-030-591 34 in.
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 3 options available.
3 options
Catalog No. 22-030-589 Supplier Mopec Supplier No. M690ES23
Only null left
Add to Cart
Add to Cart

Description

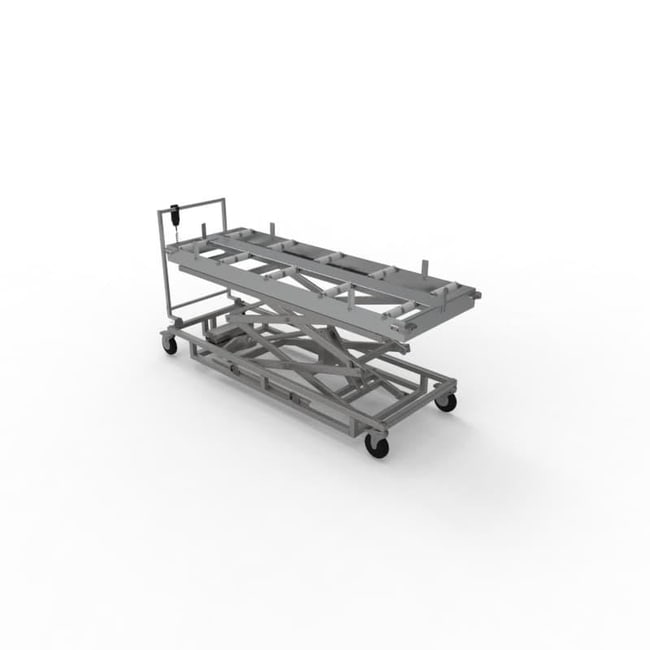

The M690ES Scissor Lifts are a heavy-duty, electromechanical cadaver handling lift designed for mortuary, hospital, and pathology settings. It uses a powered scissor action system with an integral battery charger to eliminate manual lifting, safely raising and lowering body trays.

Construction:

  • End and side-loading
  • Battery-operated electromechanical, scissor lifting system
  • Integral dual voltage battery charger and rechargeable battery
  • (6) Flip-latches provided to secure loads and help prevent shifting
  • (4) Full-swivel casters with brakes, (3) with brakes and (1) with directional lock
  • Removable handle with quick release pins
  • Multi-directional rollers which allow for end and side loading
  • Plastic hand-held lift controller
  • Fits 23 in., 27 in., or 31 in. trays (sold separately)

Materials:

  • 11GA 304 Stainless steel tubing
  • Various gages of stainless steel sheet metal
  • (10) Nylon/PVC rollers

Dimensions:

  • M690ES-23: 85.9 in. L x 28.5 in. W x 15.5 in. (minimum) - 93 in. (maximum) H
  • M690ES-27: 85.9 in. L x 30 in. W x 15.5 in. (minimum) - 93 in. (maximum) H
  • M690ES-31: 85.9 in. L x 34 in. W x 15.5 in. (minimum) - 93 in. (maximum) H

Capacity:

  • 450 lb.

Utilities / Power:

  • 24V power system, (2 Rechargeable deep-cycle 12-volt batteries included) battery cord accepts any standard 120V/1hp/60V outlet

Compatibility:

  • M690ES-23: JC023 and JC023D Tray
  • M690ES-27: JC027 and JC027D Tray
  • M690ES-31: GA031 Trays

Note: Trays sold separately

Specifications

Product Type Cadaver Lift
Material Stainless Steel (304)
Height (English) 15.5 in. to 93 in.
Length (English) 85.9 in.
Width (English) 28.5 in.
