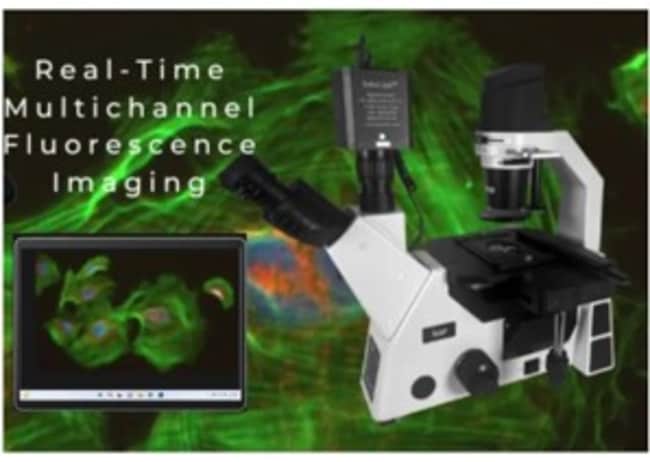

Laxco SLi6P Multichannel Inverted Fluorescence Microscope
SDP

Catalog No. 13100549 Shop All Laxco Inc Products
Change view
Click to view available options
Magnification Power:
4X, 10X, 20X, 40X
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Magnification Power
13-100-549 4X, 10X, 20X, 40X
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. 13-100-549 Supplier Laxco Supplier No. SLI6PPROMO24

Description

Advanced research grade phase-contrast fluorescent inverted imaging system with camera, computer and software.

MICROSCOPE

  • Inverted Fluorescent Microscope
  • Infinity-corrected optical system
  • Trinocular 45° inclined head and rotates 360°
  • Adjustable interpupillary distance of 50 mm to 75 mm with 100:100 image split
  • High eye-point, wide-field plan eyepiece (10x/22 mm FOV) with adjustable eyecups
  • Coarse and fine low-position coaxial focusing mechanism with tension adjustment and upper limit
  • N.A. 0.3 condenser with 72 mm working distance
  • Quintuple nosepiece
  • Multichannel DAPI/FITC/TRITC fluorescence at the click of a button. No moving parts
  • Combine multiple fluorescent channels in real time and get multiplex images. No need to layer, pseudo-color, and post-process

MECHANICAL STAGE

  • Low-position coaxial mechanical stage 120 x 78 mm
  • Includes stage inserts (petri dish, slide, terasaki) and stage extension

DIGITAL CONTROLLER UNIT

  • Digital display tablet computer with kickstand
  • Touch screen interactive controller enabling you to control the microscope and camera
  • The external dock allows user to connect multiple devices/external data storage devices

CAMERA

  • 1X focusable c-mount
  • 1.7 MP cooled color, high sensitivity, high definition CMOS camera ideal for static and time-lapse imaging
  • The tablet computer comes preloaded with our revolutionary SeBaLit and SeBaView imaging software, which enables multichannel imaging in real time

GREENER CHOICE CLAIMS

  • Environmental benefits include:
    • Free-of substances that cause environmental harm
    • Non-Toxic
    • Ozone-safe or Safe for the Ozone Layer
    • Recyclable
    • Recycled Content
    • Renewable Energy
    • Renewable Materials

Specifications

Voltage 100/115/220/230 V
Magnification Power 4X, 10X, 20X, 40X
Objective Types Plan Phase Fluarex
Eyepiece WF 10X/22 mm
Lighting Type LED, Fluorescence
Head Style Siedentopf Trinocular, 45° Inclined, 360° Swiveling
Camera Type 1.7MP, Cooled, Color, CMOS
Display Type Computer
Model SLi6P-FLP
Product Line SLi6 PRO Series
Product Type Inverted Phase-contrast Fluorescent Microscope
