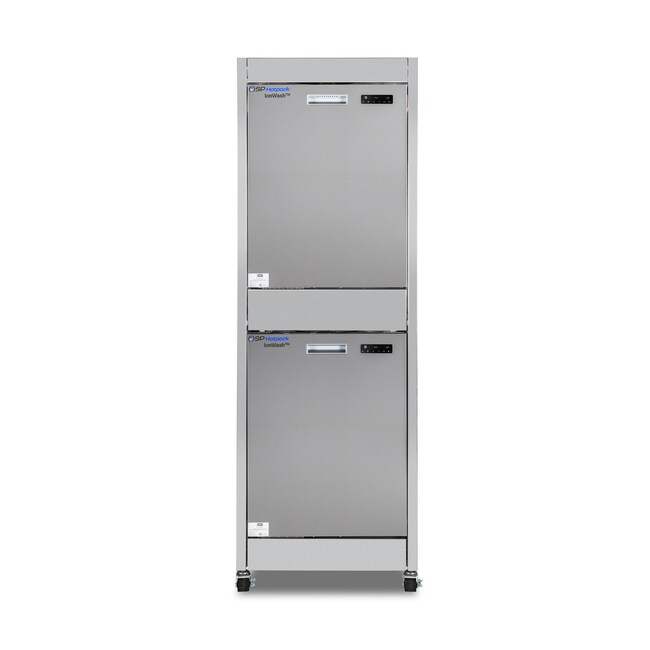

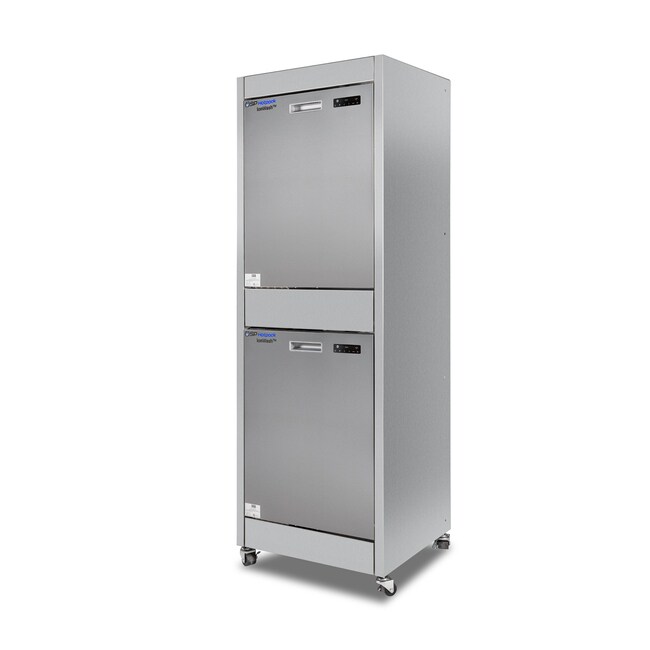

SP Hotpack™ SpaceSaver™ Vertical Stacked Glassware Washer

Catalog No.	Style
15-365-039	DI Water Rinse, Bottom and Top Spindle Rack Ready
15-365-035	Tap Water Rinse, Standard Rack
15-365-037	DI Water Rinse, Standard Rack
15-365-038	DI Water Rinse, Bottom Spindle Rack Ready

Catalog No. 15-365-039 Supplier SP Hotpack™ Supplier No. VSWSA22001

Description

Vertical stacked glassware deliver maximum capacity and operational flexibility within a compact laboratory footprint.

• Designed for space constrained environments, these systems support high throughput glassware washing without sacrificing performance.

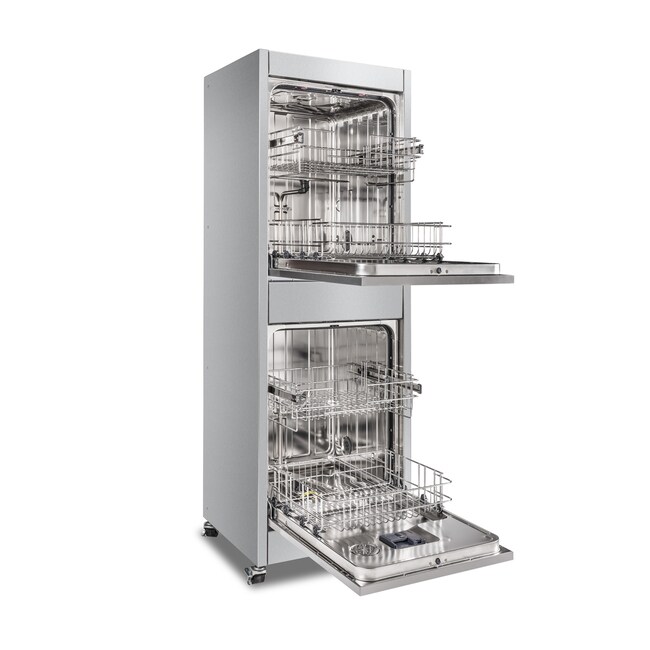

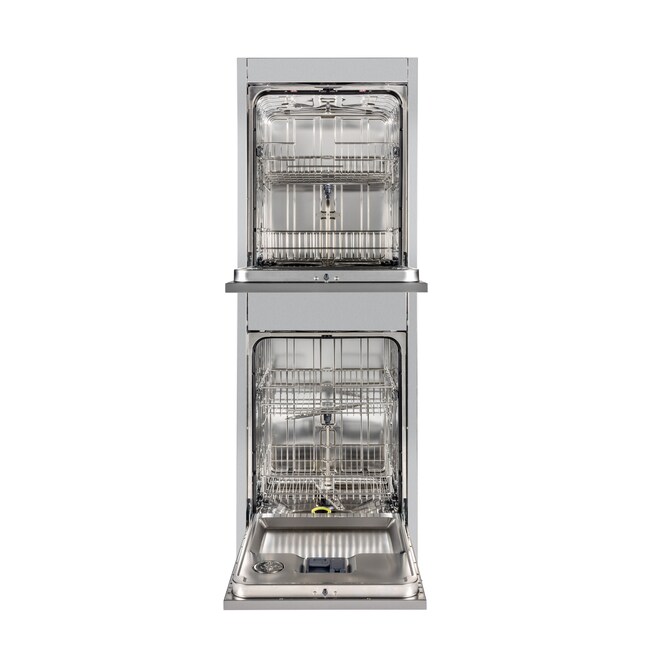

• Up to four loading levels are arranged across two independently controlled chambers, each equipped with two open racks and configurable to meet specific laboratory requirements.
• Independent chamber control allows simultaneous processing of different loads while optimizing water and energy use.
• Delivers effective microbial reduction at 86°C while achieving required A0 values, ensuring compliance without excessive thermal exposure.
• Consumes up to 6% less energy compared to systems operating above 90°C, helping lower operating costs without sacrificing results.
• Reduced water consumption without compromising performance – 12 L per Eco Cycle, 16 L per sanitization cycle.
• Reduces thermal stress on glassware and components with lower temperature sanitization.
• Optimized cleaning system combines precision-controlled processes, efficient spray arm design, and advanced hydraulics to deliver consistent, repeatable outcomes.
• 304 stainless steel exterior casing ensures corrosion protection and long life.
• 3 lockable casters allow easy, controlled mobility of unit.
• Provides a footprint up to 33% smaller than comparable washers.
• ISO 15883-compliant sanitization.
• Supports a wide range of labware including flasks, beakers, bottles, test tubes, and Petri dishes, with spindle-ready options for narrow-neck items.
• Spindle rack ready models accommodate direct injection spindle racks (sold separately) for thorough cleaning inside narrow-neck glassware.
• DI rinse models ensure a spotless finish; easily connect to fixed or portable DI water systems (Optional pump available for DI water sources with less than 18psi).
• Stainless steel baskets, insert racks and accessories sold separately to maximize space, improve efficiency, and protect specialty glassware.

Specifications

• Display: Digital
• Material: Stainless Steel (304)
• Product Type: Laboratory Glassware Washer
• Volume (English): 12 cu.ft.
• Volume (Metric): 340 L
• Wash Cycles: 9
• Water Consumption: 12 L Eco Cycle, 16 L Sanitization Cycle
• Color: Gray
• Style: DI Water Rinse, Bottom and Top Spindle Rack Ready
• Certifications/Compliance: UL61010-1, CSA 22.2 61010-1
• Depth (English): 23.31 in.
• Depth (English) Interior: 18 in.
• Depth (Metric): 592 mm
• Depth (Metric) Interior: 457 mm
• Dimensions (D x W x H) Interior: 18 x 21 x 25 in.
• Height (English): 78.5 in.
• Height (English) Interior: 25 in.
• Height (Metric): 1994 mm
• Height (Metric) Interior: 635 mm
• Width (English): 26.38 in.
• Width (English) Interior: 21 in.
• Width (Metric): 670 mm
• Width (Metric) Interior: 533 mm
• Weight (English) Shipping: 460 lb.
• Weight (Metric) Shipping: 208.6 kg
• Amperage: 15 A
• Electrical Rating: Domestic
• Electrical Requirements: 120V, 60Hz, 15A with NEMA 5 to 15P Power Cord
• Voltage: 120 V
