Stoelting™ Standard Probe Holders

Stoelting Standard Probe Holders include an 11 mm square acrylic block connected to a standard 19.5 cm standard shaft (6 mm diameter) with grooves spaced 1 mm apart. The grooves (on three sides) facilitate loading of probes.

Catalog Number	Mfr. No.	Model
10-000-157	Stoelting™ 51631	Standard Probe Holder-Corner Clamp

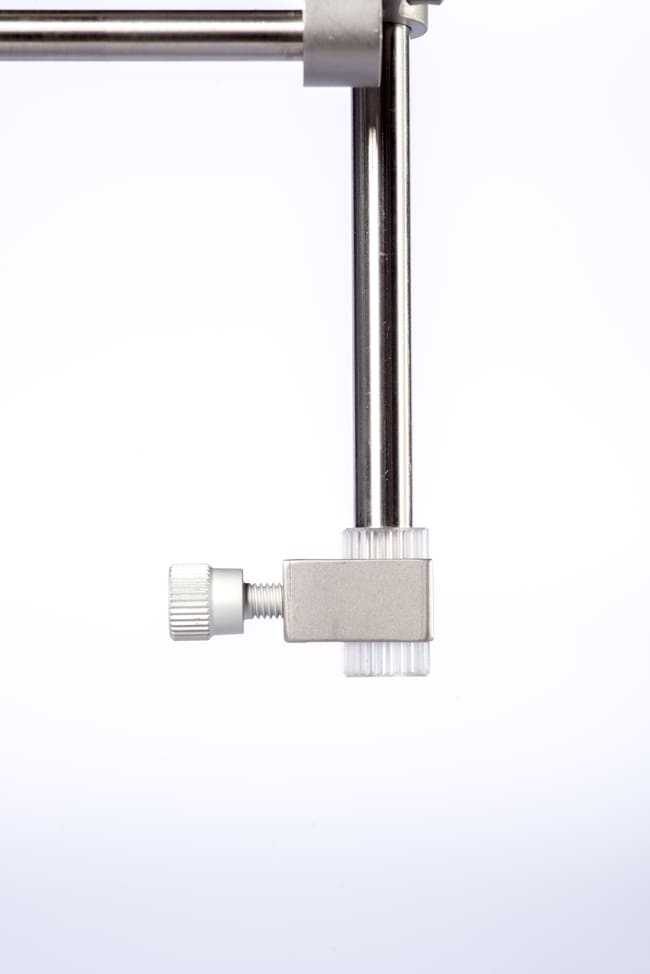

10-000-158	Stoelting™ 51632	Standard Probe Holder - Side Clamp

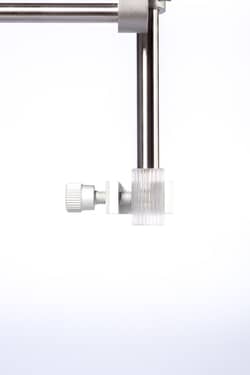

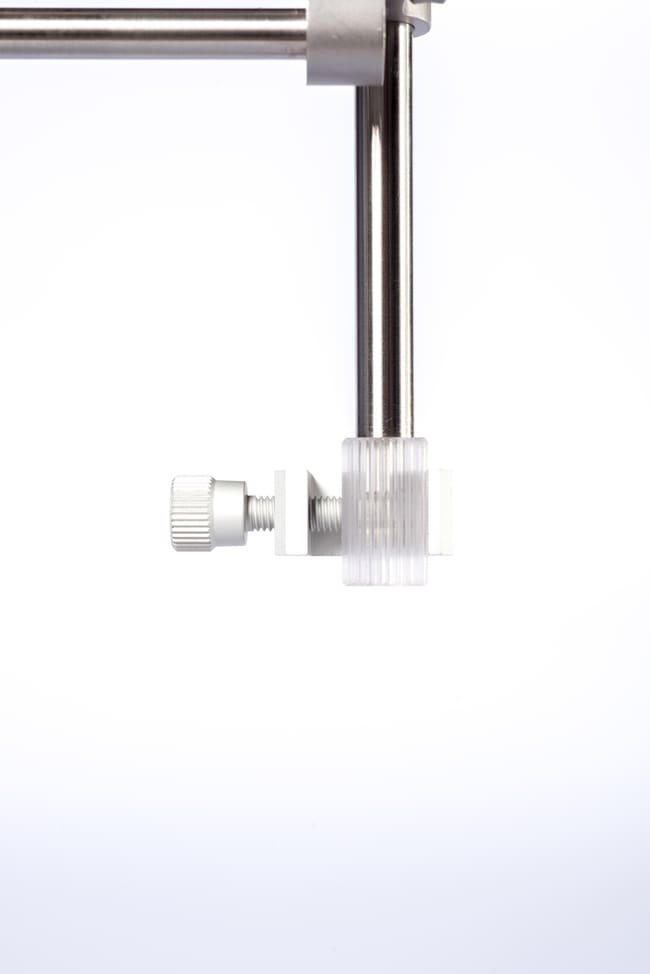

10-000-160	Stoelting™ 51634	Electrode Holder, C Clamp

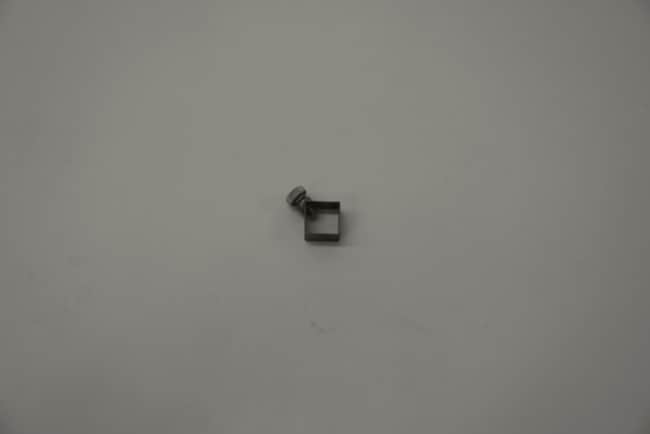

10-000-165	Stoelting™ 51641	Replacement Corner Clamp

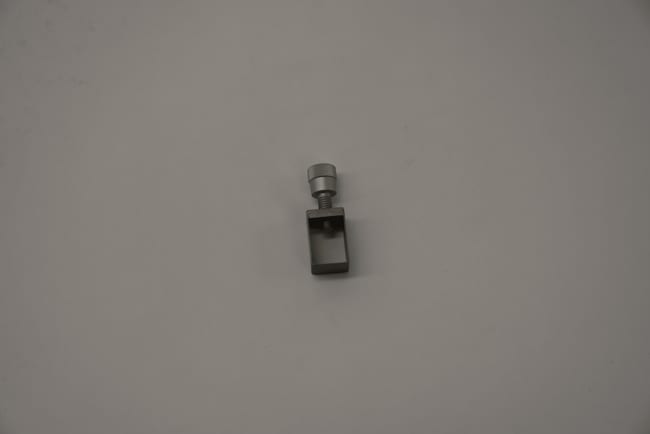

10-000-166	Stoelting™ 51642	Replacement Side Clamp

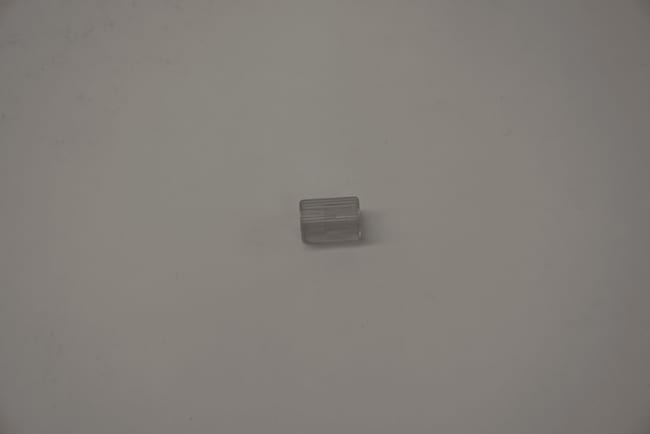

10-000-167	Stoelting™ 51643	Replacement Plastic Block

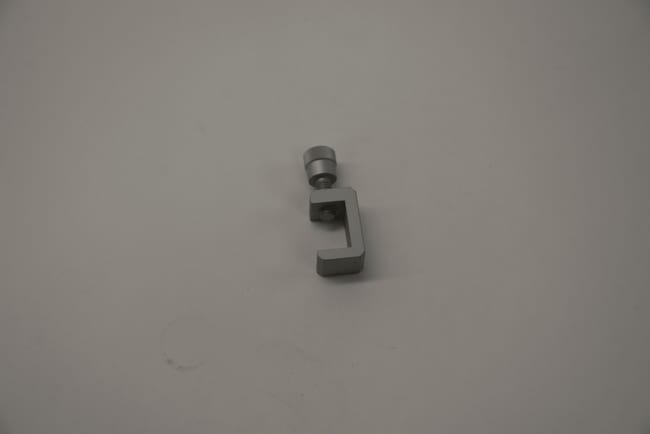

10-000-168	Stoelting™ 51644	Replacement C Clamp

Description

Stoelting Standard Probe Holders include an 11 mm square acrylic block connected to a standard 19.5 cm standard shaft (6 mm diameter) with grooves spaced 1 mm apart. The grooves (on three sides) facilitate loading of probes.

• Corner Clamp Probe Holder holds shafts from 0.2 to 2.0 mm
• Side Clamp holds probes from 0.2 to 4.5 mm
• C Clamp holds probes from 0.2 to 4.5 mm and is useful to release implanted probes
• Standard Probe Holder-Corner Clamp is included with each Lab Standard™ and has an 19.5 cm shaft with 11 mm square acrylic block

Specifications

• For Use With (Application): Neuroscience
