MSC Starrett Dial Test Indicator, Swivel Head, 0.060 in Range, 0.001 in Graduations, White Dial

Catalog No. 5000530246
Encompass

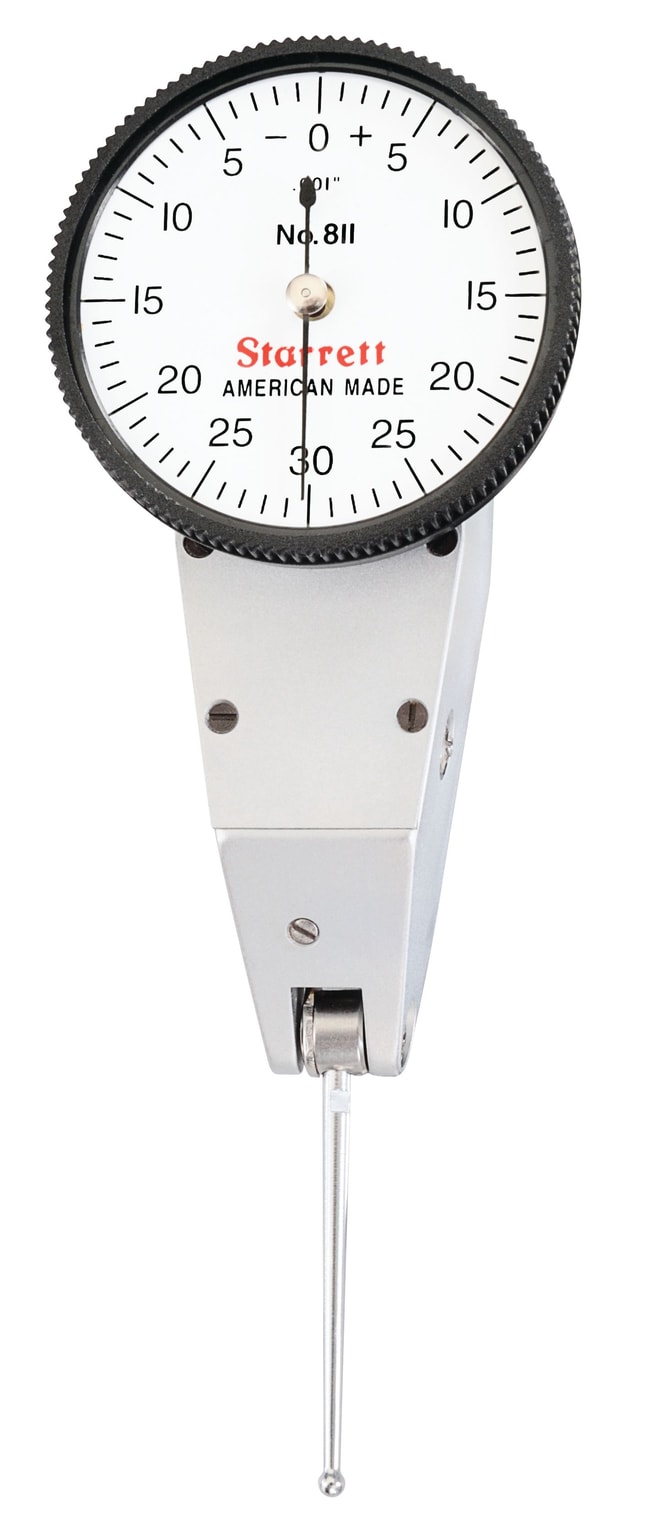

The Starrett 811 Dial Test Indicator with Swivel Head is a versatile instrument designed for precise measurements. It features a unique swivel head that allows for flexible positioning from horizontal to vertical and any angle up to 90 degrees. With a 0.060 in range and 0.001 in graduations, it ensures accurate readings on its 0-30-0 white dial. This indicator comes as a complete kit with several useful attachments.

  • Swivel head allows versatile positioning from horizontal to vertical and any angle in between.
  • Contact point reverses automatically, always maintaining clockwise hand rotation.
  • Contacts are frictionally adjustable and replaceable.
  • Features smooth, jeweled movement.
  • Large 1-3/8 in dial diameter for increased readability.
  • Includes a dovetail body clamp, tool post holder, swivel post snug with dovetail indicator clamp, and a snug and rod unit.

Catalog No. 50-005-30246 Supplier MSC Supplier No. 86436425
May include imposed supplier surcharges.
Add to Cart
Add to Cart

The Starrett 811 Dial Test Indicator with Swivel Head is a versatile instrument designed for precise measurements. It features a unique swivel head that allows for flexible positioning from horizontal to vertical and any angle up to 90 degrees. With a 0.060 in range and 0.001 in graduations, it ensures accurate readings on its 0-30-0 white dial. This indicator comes as a complete kit with several useful attachments.

  • Swivel head allows versatile positioning from horizontal to vertical and any angle in between.
  • Contact point reverses automatically, always maintaining clockwise hand rotation.
  • Contacts are frictionally adjustable and replaceable.
  • Features smooth, jeweled movement.
  • Large 1-3/8 in dial diameter for increased readability.
  • Includes a dovetail body clamp, tool post holder, swivel post snug with dovetail indicator clamp, and a snug and rod unit.
