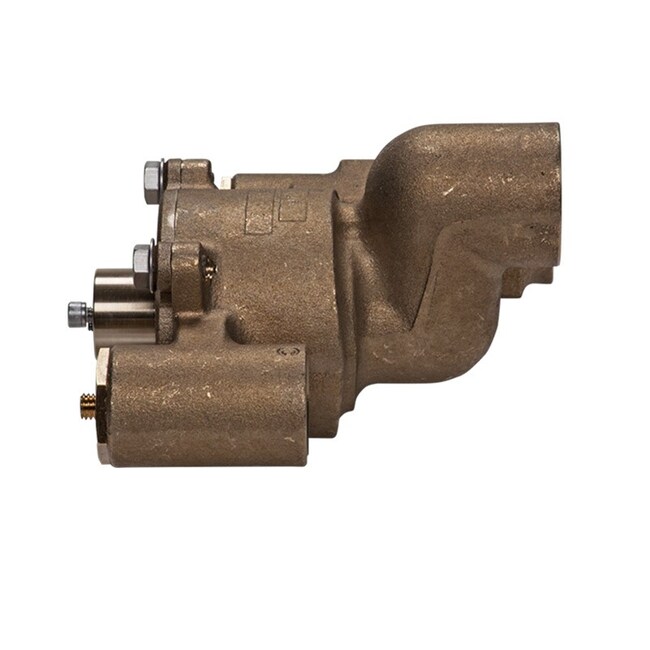

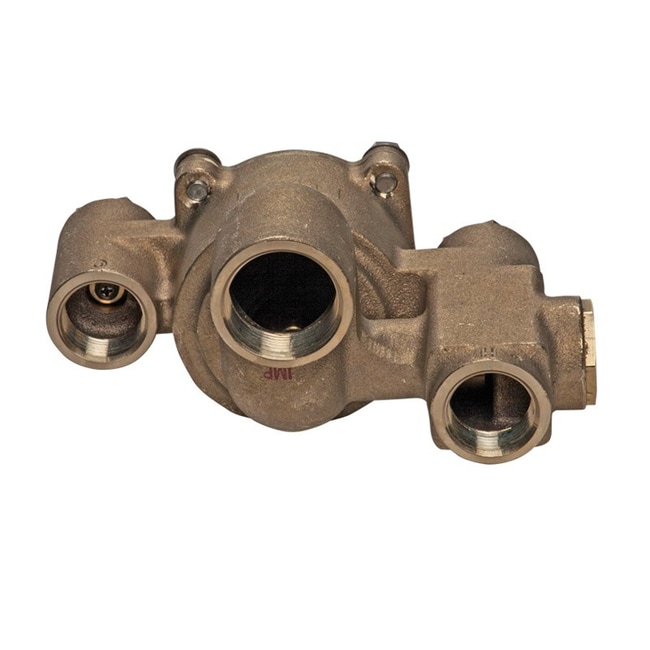

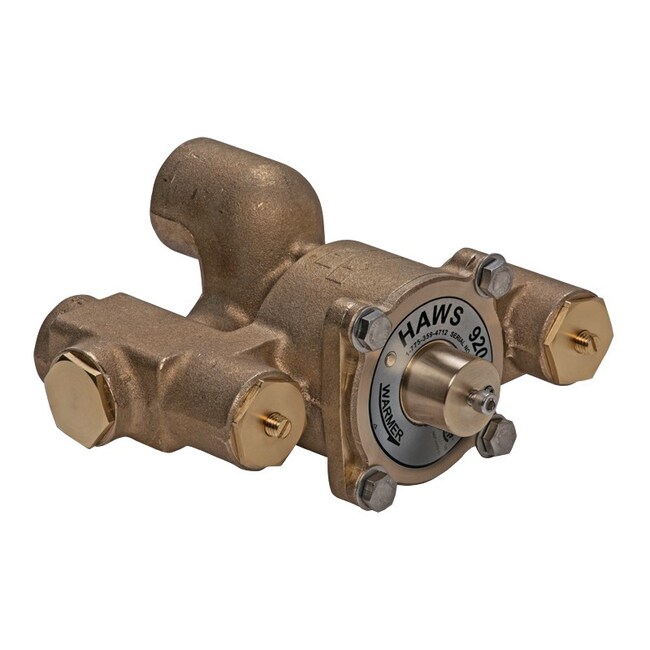

Haws™ Thermostatic Mixing Valve

Description

Lead-free AXION™ Emergency Tempering Valve thermostatically mixes hot and cold water to provide a safe fluid supply for emergency showers and eyewash equipment, with a flow rate of 31 gpm (117.3 L).

• Flow rate of 1 to 31 gpm (3.8 to 117.3 L) for better temperature control across the operating range
• AXION's superior design and technology provide a complete safety solution for increased victim comfort.
• Lowest internal pressure drop for this class of valve (advantage where supply pressure is low)
• Wax based thermostat technology for fast response time with proven highly reliable temperature control
• Highest Cold Water Bypass flow rate in the industry (65% of rated tepid flow rate)
• Modular lead-free brass design with internal check stops
• Over-sized valve seats resist failures caused by foreign matter
• New, efficient shuttle design eliminates valve sticking
• Custom funnel design improves temperature control at low flow rates
• Outlet temperature is factory set to 85°F (29°C).

Specifications

• Certifications/Compliance: ASSE 1071, ANSI Z358.1, CSA B125.3, NSF/ANSI 372, NSF/ANSI 61-section 8, California Health and Safety Code 116875 (AB 1953).
• Flow Rate: 20 gpm, 31 gpm
• For Use With (Application): Emergency Showers and Eyewash Equipment
• Height (English): 8 in.
• Height (Metric): 20.32 cm
• Inlet Connection (Metric): 1 in.
• Material: Brass
• Outlet Connection (English): 1.25 in.
• Pressure: 125 psi
• Product Type: Thermostatic Mixing Valve
• Width (English): 5 in.
• Width (Metric): 12.7 cm

Safety and Handling

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
