ACCU-SCOPE™ Trinocular with 8MP 4K Excelis Camera

Catalog No.	Head Style
01-000-964	Binocular, 30° Inclined, 360° Rotating

Catalog No. 01-000-964 Supplier ACCU-SCOPE™ Supplier No. EXC3604K

Description

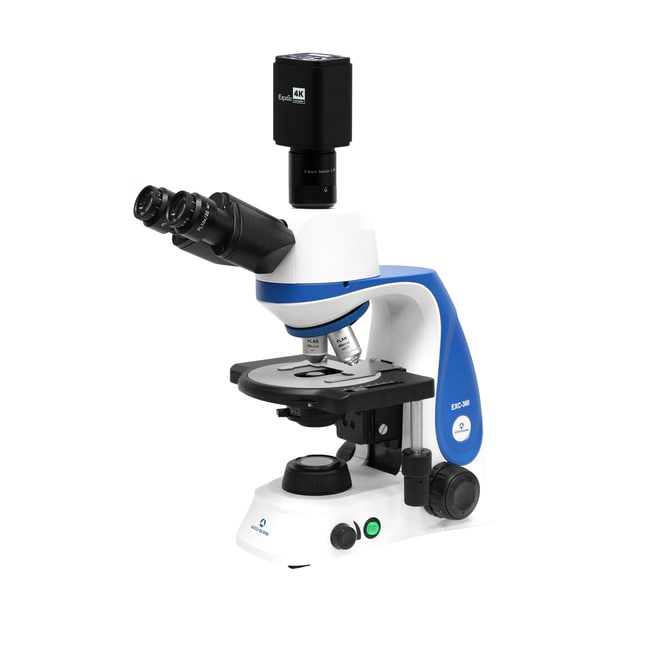

The new EXC-360-4K features a trinocular microscope, with an 8MP 4K camera and 0.65x c-mount adapter. The EXC-360 series delivers exceptional optical performance, versatility and durability for clinical, veterinary and education laboratory environments.

• Trinocular viewing head, inclined 30°, rotatable 360°; fixed light path split 50:50, and 0.65x c-mount
• Excelis 4K camera (CAT# AU-800-4K)
• Plan Achromat 4x, 10x, 40xR, 100xR oil objectives
• PL10x/22mm focusable eyepieces with eye cushions; accepts 24 mm reticle
• Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides
• Stand: All metal structural frame with molded plastic protective shell; 5v USB-C charging port on back for personal mobile device
• Stage: Double-layer, rackless mechanical stage with ceramic insert; size 210mm x 170mm; X-Y movement range 78 mm x 51 mm, Low position right hand controls
• N.A. 1.25 Abbe Condenser with iris diaphragm; slot for phase contrast or darkfield sliders Coaxial coarse and fine focus controls
• 3W LED with variable intensity control; LED bulb is rated for over 25,000 hours of continuous use; internal universal power supply 110-240v
• Accessories: Dust cover, power cord, immersion oil and instruction manual
• Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb

Specifications

• Eyepiece: PL-WF 10X/22 mm
• Head Style: Binocular, 30° Inclined, 360° Rotating
• Lighting Type: LED
• Magnification Power: 40X, 100X, 400X, 1000X
• Model: ACCU-SCOPE
• Objective Types: Plan Achromatic
• Product Type: Digital Microscope System Package
• Voltage: 110/240 V
