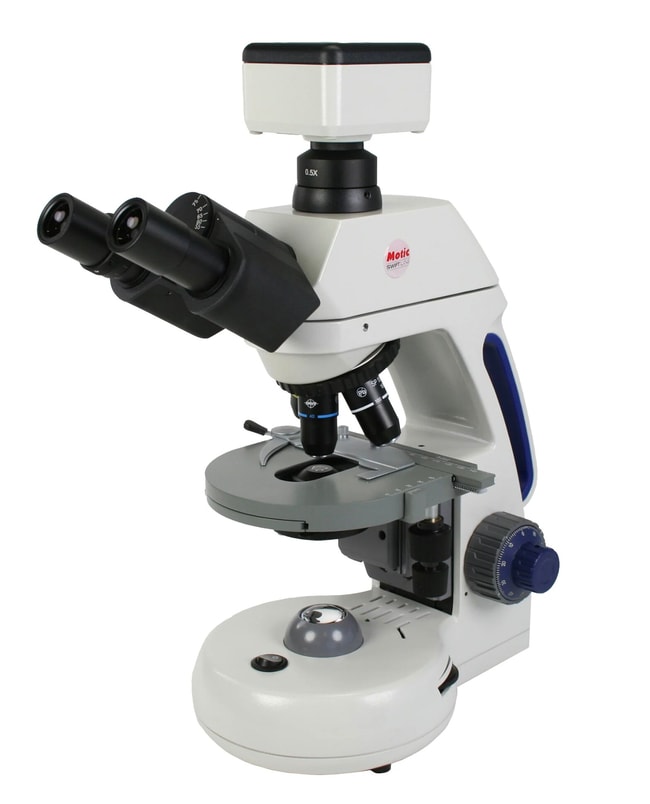

Motic Swift Line Trinocular Microscope with Integrated HD Camera

Catalog No. S001199 Shop All Motic Swift Line Products
Change view
Click to view available options
Eyepiece:
10X/20 mm
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Eyepiece
S001199 10X/20 mm
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. S001199 Supplier Motic Swift Line Supplier No. M17THDP
Add to Cart
Add to Cart

Description

Ideal for higher education and professional applications, the M17T-HD Series expands your options. Available with semi-plan, plan, and multi-phase lenses. Included Moticam 4000X turns your microscope into an instant multimedia learning platform.

The M17 compound microscope series features infinity corrected plan optics, ideal for college laboratories, veterinary and medical applications. Supplied with trinocular head and HDMI camera, this research level microscope also incorporates 3 W LED illumination and wide field 20 mm eyepieces for a very crisp image. Included Moticam 4000X turns your microscope into an instant multimedia learning platform.

  • 4K CAMERA SPECIFICATIONS:
  • 3840 x 2160 resolution
  • 1/2.8 in. sensor
  • HDMI, USB, WiFi5 simultaneous output
  • On board measurement, editing and calibration
  • Micro SD card slot
  • Motic Images Plus software for Computer
  • OPTICAL SYSTEM:
  • Widefield 10x /20 mm eyepieces
  • Trinocular viewing head with 30° inclined eyepieces, with diopter and interpupillary adjustment 54 mm to 76 mm
  • Infinity corrected 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.) objectives. (Only the 100x R objective is oil immersion.) PLAN lenses. All are parfocalled, parcentered and color-coded
  • Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives. Mounted in reverse position to facilitate ease in changing slides
  • ILLUMINATION:
  • 3W LED
  • On/off rocker switch
  • ELECTRICAL:
  • 110 V to 220 V external switching power supply, unit shipped with American plug
  • FOCUSING:
  • Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated
  • STAGE:
  • Large 5-3/4 in. x 5-1/2 in. (142 mm x 140 mm) stage; built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls
  • 1.25 N.A. Abbe condenser has rack and pinion focusing and iris diaphragm
  • FRAME:
  • Base dimensions: 10-1/4 in. x 6-3/4 in. (261 mm x 172 mm) Height: 22 in. (559 mm). Net wt. 30.9 lb. (14.0 kg)

Trinocular Microscope, Microscope with HD Camera, moticam microscope, microscope

Specifications

Eyepiece 10X/20 mm
Head Style Seidentopf Trinocular
Lighting Type LED
Objective Types Infinity Corrected Plan
Product Line Swift Line
Product Type Trinocular LED Microscope
Voltage 110/220 V
