ACCU-SCOPE™ Trinocular with NIS Infinity Plan Objectives
SDP

Catalog No. 01000983 Shop All ACCU-SCOPE Products
Change view
Click to view available options
Head Style:
Trinocular, 30° Inclined, 360° Rotating
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Head Style
01-000-983 Trinocular, 30° Inclined, 360° Rotating
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. 01-000-983 Supplier ACCU-SCOPE™ Supplier No. EXC500T
Only null left
Add to Cart
Add to Cart
Request a Quote

Description

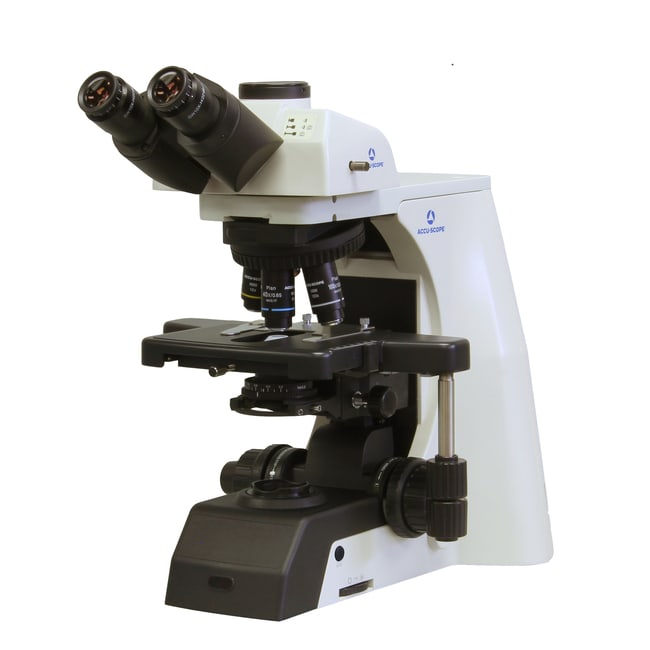

EXC-500-T is a versatile trinocular microscope featuring NIS Infinity Plan Objectives for crisp, detailed imaging.

  • Trinocular viewing head, inclined 30°, IPD 47 - 78 mm, rotatable 360°
  • Viewing split: 100% T / 0% B; 20% T / 80% B; and 0% T / 100% B
  • NIS Infinity Corrected PLAN 4x, 10x, 40xR and 100xR oil objectives
  • Reversed sextuple nosepiece
  • WF 10x/22mm focusing eyepieces with eyeguards
  • Coaxial coarse and fine focusing controls
  • Stand: Cast aluminum alloy
  • Hard coat mechanical stage, tension adjustable controls
  • N.A. 0.9 Abbe Condenser with iris diaphragm
  • Koehler illumination - 3 watt variable S-LED illuminator
  • Power Input: 100-240V 0.5A Dust cover, power cord, instruction manual, UL Approved

Specifications

Eyepiece WF 10X/22 mm
Head Style Trinocular, 30° Inclined, 360° Rotating
Lighting Type LED
Magnification Power 40X, 100X, 400X, 1000X
Model ACCU-SCOPE
Objective Types Infinity Corrected Plan
Product Type Trinocular LED Microscope
Voltage 100/240 V
