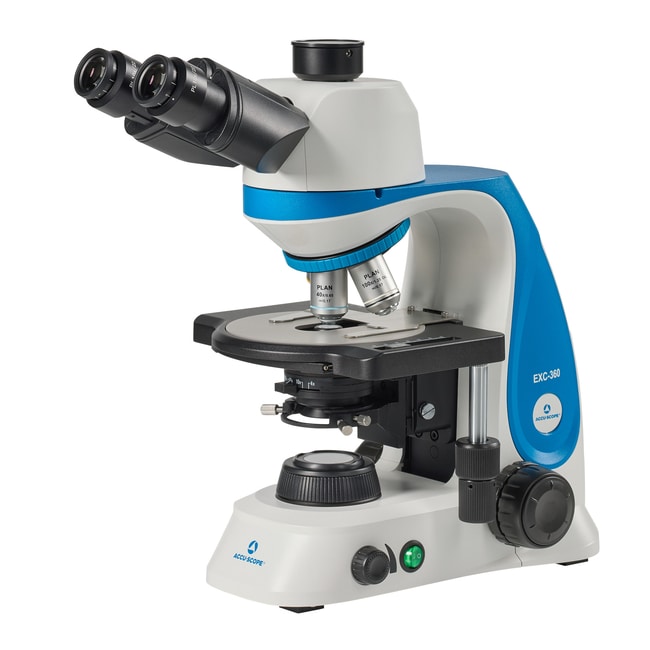

ACCU-SCOPE™ Trinocular with Plan Achromat Objectives

The new EXC-360 from ACCU-SCOPE delivers exceptional optical performance, versatility and durability for clinical, veterinary and education laboratory environments.

Supplier:  ACCU-SCOPE™ EXC360

Catalog No. 01-000-959

Description

• Trinocular viewing head, inclined 30°, rotatable 360°; fixed light path split 50:50
• PL10x/22 mm focusable eyepieces with eye cushions; accepts 24 mm reticle
• Plan Achromat 4x, 10x, 40xR, 100xR oil objectives
• Double layer, rackless mechanical stage with ceramic insert, low position right hand controls
• N.A. 1.25 Abbe Condenser with iris diaphragm; slot for phase contrast or darkfield sliders
• Coaxial coarse and fine focus controls
• 3 watt Variable LED with field iris 5v USB charging port for personal mobile device
• Dust cover, power cord, immersion oil and instruction manual
• Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb

Specifications

• Eyepiece: PL-WF 10X/22 mm
• Lighting Type: LED
• Model: ACCU-SCOPE
• Product Type: Trinocular LED Microscope

• Head Style: Trinocular, 30° Inclined, 360° Rotating
• Magnification Power: 40X, 100X, 400X, 1000X
• Objective Types: Plan Achromatic
• Voltage: 110/240 V
