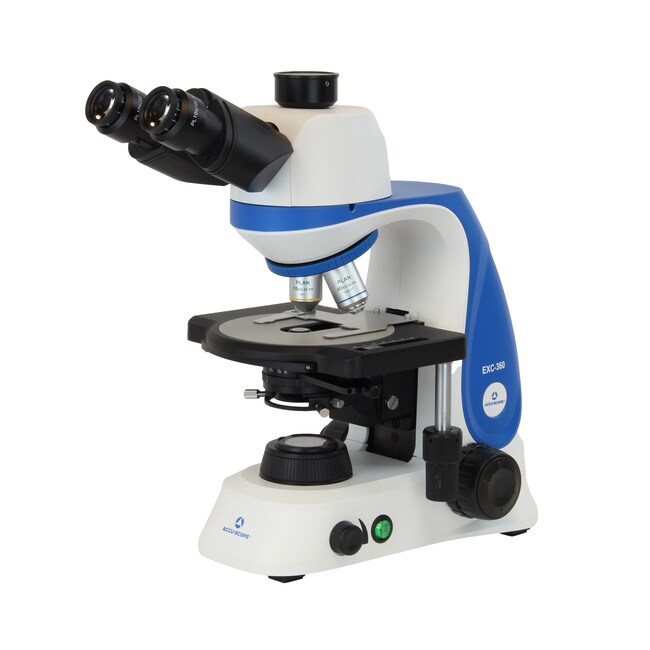

ACCU-SCOPE™ Trinocular with Slider Phase 10x and 40x

Catalog No. 01-000-973

Supplier: ACCU-SCOPE™ EXC360SPH

Description

The new EXC-360 is a versatile, high-performance microscope engineered for clinical, academic, and research labs.

• Trinocular viewing head, inclined 30°, rotatable 360°; fixed light path split 50:50
• Plan Phase 10x, 20x, 40xR, 100xR oil objectives
• PL10x/22 mm focusable eyepieces with eye cushions; accepts 24mm reticle
• Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides
• All metal structural frame with molded plastic protective shell; 5v USB-C charging port on back for personal mobile device
• Double-layer, rackless mechanical stage with ceramic insert; size 210 mm x 170 mm; X-Y movement range 78 mm x 51 mm, Low position right hand controls
• N.A. 1.25 Abbe condenser with phase slider with 10x and 40x objectives and phase annuli with BF position. Centering telescope is not included.
• Coaxial coarse and fine focus controls
• 3W LED with variable intensity control; LED bulb is rated for over 25,000 hours of continuous use; internal universal power supply 110-240V
• Accessories: Dust cover, power cord, immersion oil and instruction manual
• Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb

Specifications

• Eyepiece: PL-WF 10X/22 mm
• Head Style: Trinocular, 30° Inclined, 360° Rotating
• Lighting Type: LED
• Magnification Power: 100X, 400X
• Model: ACCU-SCOPE
• Objective Types: Plan Phase
• Product Type: Trinocular LED Microscope
• Voltage: 110/240 V
