ACCU-SCOPE™ Trinocular with Turret Phase System
SDP

Catalog No. 01000980 Shop All ACCU-SCOPE Products
Change view
Click to view available options
Head Style:
Trinocular, 30° Inclined, 360° Rotating
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Head Style
01-000-980 Trinocular, 30° Inclined, 360° Rotating
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. 01-000-980 Supplier ACCU-SCOPE™ Supplier No. EXC400PH
Only null left
Add to Cart
Add to Cart
Request a Quote

Description

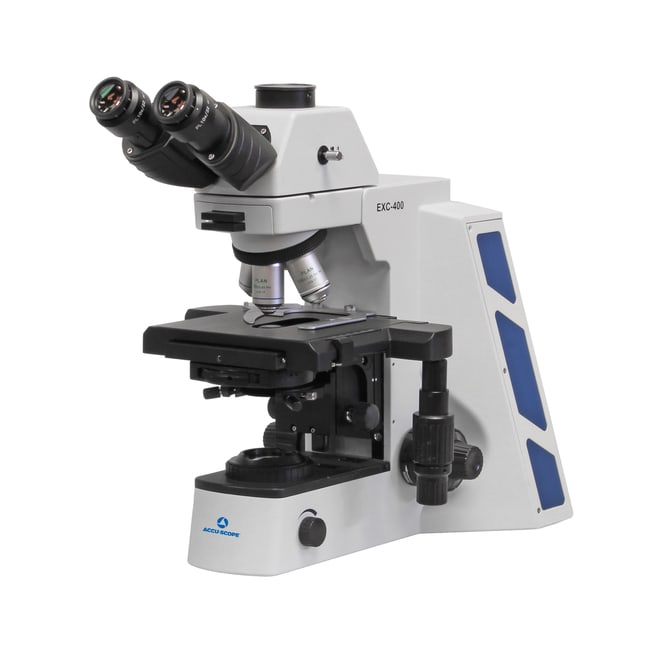

The EXC-400-PH features a turret phase condenser (10x, 20x, 40x, 100x annuli), plan phase objectives, and a centering telescope for optimal phase contrast imaging.

  • Trinocular viewing head, inclined 30°, rotatable 360°
  • WF10x/22 mm focusable eyepieces with eyeguards
  • Reversed quintuple ball bearing nosepiece with positive click stops
  • Stand: Cast aluminum alloy
  • New Rackless mechanical stage, with low position coaxial controls, right hand control Coaxial coarse and fine focusing controls
  • N.A. 1.2 Turret phase condenser - 10x, 20x, 40x, and 100x phase annuli and plan phase objectives, green filter and centering telescope
  • 3 Watt variable LED illuminator with variable intensity control and field iris diaphragm; LED bulb is rated for over 20,000 hours of continued use; universal power supply 110-240V
  • Warranty:5 Year limited warranty for parts, labor and electronic components 1 Year warranty on LED bulb

Specifications

Eyepiece WF 10X/22 mm
Head Style Trinocular, 30° Inclined, 360° Rotating
Lighting Type LED
Magnification Power 100X, 200X, 400X, 1000X
Model ACCU-SCOPE
Objective Types Plan Phase
Product Type Trinocular LED Microscope
Voltage 110/240 V
