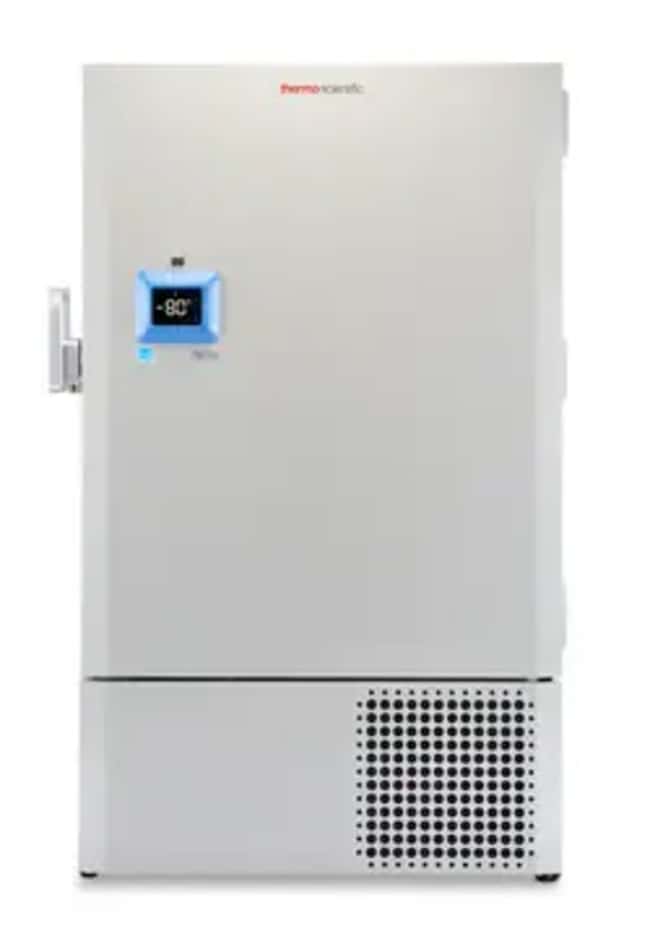

Thermo Scientific™ TSX Core Series General Purpose Ultra-Low Freezer Package with Racks and Cryoboxes

Description

TSX™ Core Series is engineered for reliability and designed for everyday use. When choosing a ULT, protecting your samples is the top priority.

• Reliability at its Core
• Preserving the integrity of critical samples and ensuring long-term research success begins with investing in dependable cold storage.
• The TSX Core ULT freezer is engineered to deliver seamless reliability day after day.
• Each unit undergoes rigorous field and laboratory testing and is shipped with factory documentation and a calibration certificate to provide transparency and confidence in its durability and performance.
• Backed by a leading 7-year warranty, the TSX Core is built to support your lab long term.
• Rigorous long-term reliability test in field and lab settings
• Extensive end-of-line testing
• Shipped with factory documentation and a certificate of calibration
• Backed by a leading 7-year warranty
• Built to perform, designed to protect
• Your samples are the result of years of research, breakthroughs, and discoveries, protecting them is our highest priority.
• The TSX Core ULT freezer is powered by V-Drive cooling technology, designed to handle the fast-paced demands of busy labs.
• By dynamically adjusting to user interactions, including frequent door openings, V-Drive ensures rapid temperature recovery, maintaining stable, optimal conditions for your samples, giving you peace of mind that they are safely stored.
• Powered by V-Drive cooling technology that adapts to users interaction
• Maintains optimal conditions for sample protection
• Energy Star certified
• Essential features for everyday labs
• Designed for ease of use, the TSX Core ULT freezer integrates seamlessly into diverse lab environments.
• Its 5 in. user interface provides quick access to settings and notifications, while universal voltage compatibility supports installations worldwide. Operating at a whisper-quiet 44 dB, it supports a disruption-free workspace.
• With built-in USB and communication ports for compliance and monitoring, plus customizable configurations, the TSX Core adapts to meet your unique lab needs.

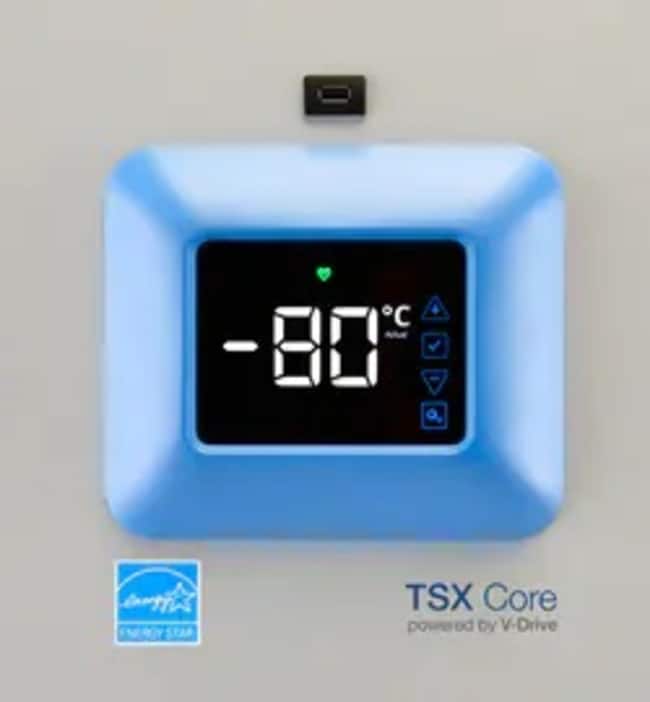

• 5 in. user interface
• Universal voltage compatible
• Whisper-quiet operation
• Connectivity-enabled with accessory
• Various accessories and configurations available

Specifications

• Type: Ultra-Low Freezer, Upright
• Capacity (English): 33.5 cu. ft.
• Capacity (Metric): 949 L
• Temperature Range: -50°C to -86°C
• Temperature Resolution: 1°C
• Temperature Stability: 0.2°C
• Door Style: Outer (1), Inner (2)
• No. of Doors: 1
• Door Opening Recovery: 21 (20°C Ambient Running @ -75°C) mins
• Cabinet Material: Scratch-resistant Painted Steel
• Chamber Material: Cold-rolled Steel
• Insulation: Vacuum Insulation Panels (VIP) and Water-Blown Polyurethane Foam (SNAP-compliant)
• Interior: Optional Stainless Steel
• Exterior Finish: Painted Cold Rolled Steel
• Shelves: 3 Adjustable, 1 Fixed
• No. of Racks per Kit: 14
• Certifications/Compliance: cULus, CE, ENERGYSTAR, EPA SNAP
• Style: Upright
• Display: 7-segment Display with Capacitive Touch Screen Buttons
• Casters: 4 All-Direction Casters with Locks
• Ports: 2 Rear Access Ports
• Product Line: TSX Core Series
• Warranty: Warranty varies by country, please contact us for details
• ACT Label: Yes
• Defrost: Manual
• Peak Variation at -80C: 4
• Water Cooled: Not Available
• Dimensions (DxWxH) Exterior: 37.0 x 45.2 x 78 in. (94.0 x 114.8 x 198.1 cm)
• Dimensions (D x W x H) Interior: 28.3 x 40.1 x 51.2 in. (71.9 x 101.9 x 130.0 cm)
• Depth (English) Exterior: 37 in.
• Depth (English) Interior: 28.3 in.
• Depth (Metric) Exterior: 97.8 cm
• Depth (Metric) Interior: 71.9 cm
• Height (English) Exterior: 78.0 in.
• Height (English) Interior: 51.2 in.
• Height (Metric) Exterior: 198.1 cm
• Height (Metric) Interior: 130.0 cm
• Width (English) Exterior: 45.2 in.
• Width (English) Interior: 40.1 in.
• Width (Metric) Exterior: 114.8 cm
• Width (Metric) Interior: 101.9 cm
• Monitoring Options: Audible and Visual High and Low Temperature Alarms
• Access Security: Standard Key Lock, Padlock Loop, Setpoint and Settings Security
• Data Outputs: 4-20mA, Dry Contacts, RS485, USB
• Setpoint Security: Passcode Access Control
• Backup Systems: Not included
• Connectivity: Thermo Scientific™ Instrument Connect Compatible with Accessory
• Amperage: 8.9-4.9 A
• Plug Type: NEMA 5-15 P
• Voltage: 100/230 V
• Electrical Requirements: 100/230 V, 50/60 Hz
• Phase: Single
• Energy Usage: .24 kw-hr/day/cu.ft. (ENERGY STAR)
• Green Features: ENERGY STAR, ACT
• Voltage Compensation: ±10%
• Vial Capacity: 70,000 x 2 mL
• Compressor: V-drive
• Refrigerant: R290 (1st stage), R170 + R290 mix (2nd stage)
• Holds: 700 Count 2 in. Boxes
• Rack Capacity: 28
