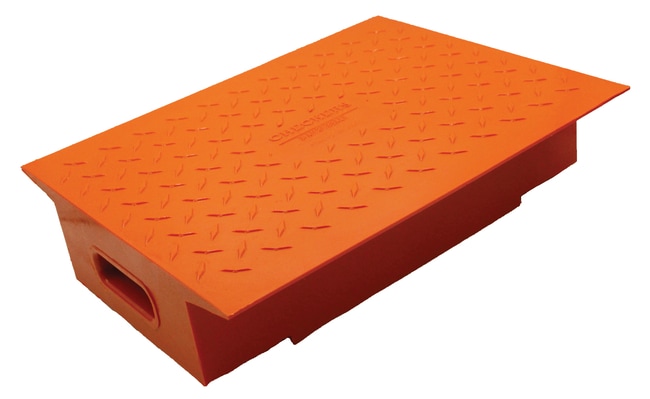

Checkers Tunnel Connector for Diamondback™ Expandable Hose Bridge System for 4.5 in. Lines

Description

Diamondback™ hose bridge systems allow the ability to connect any number of tunnel options as required.

• Checkers Diamondback 4.5 in. hose bridge system provides protection for valuable cable and hose lines while ensuring a safer method of passage for vehicles.
• They replace wooden and metal fabricated ramps and can be used to protect lines up to 4.5 in. in diameter. High density, all-weather polyurethane construction protects from damage by physical pressure and reduces cable and hose maintenance and replacement costs.
• The lightweight, modular design of interlocking sections provides multi-length flexibility.
• Checkers Hose Bridge Systems are intended for temporary installations only.

Specifications

• Autoclavable: Not Autoclavable
• Material: Polyurethane
• Overall Length (English): 16 in.
• Overall Length (Metric): 0.4064 m
• For Use With: Hose Bridges are for rubber tired vehicles only (not for equipment with metal tracks)
• For Use With (Application): Ideal for creating a pedestrian/vehicle bridge where large diameter hoses/cables are needed
• Packaging Quantity: 1
• Product Line: Hose Bridge
• Sterility: Non-sterile
• Width (Metric): 0.346202 m
• Weight (Metric): 8.527537 kg
• Width (English): 13.63 in.
• Height (Metric): 0.12 m
• Height (English): 4.88 in.
• Color: Orange
• Product Type: Quick Connect Tubing
