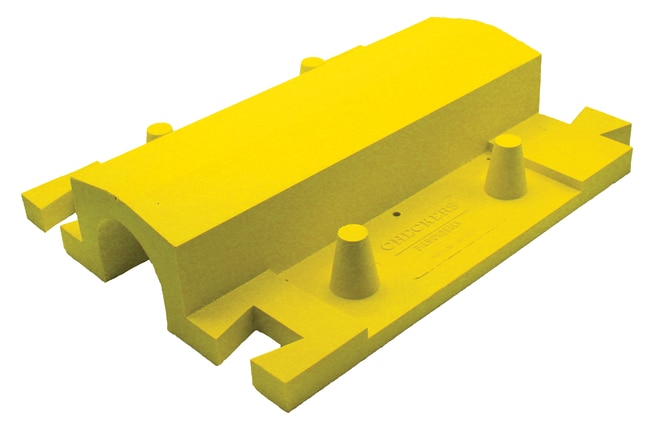

Checkers Tunnel for Diamondback™ Expandable Hose Bridge System for 4.5 in. Lines

Description

With tunnels, ramps and tunnel connectors available, Diamondback™ hose bridge systems allow the ability to connect any number of tunnel options as required by the task at hand.

• Checkers Diamondback 4.5 in. hose bridge system provides protection for valuable cable and hose lines while ensuring a safer method of passage for vehicles.
• They replace wooden and metal fabricated ramps and can be used to protect lines up to 4.5 in. in diameter.
• High density, all-weather polyurethane construction protects from damage by physical pressure and reduces cable and hose maintenance and replacement costs.
• The lightweight, modular design of interlocking sections provides multi-length flexibility.
• Checkers Hose Bridge Systems are intended for temporary installations only.

Specifications

• Connection Type: Tunnel
• Color: Yellow
• Product Type: Hose Bridge Tunnel
• Size: Standard
• For Use With (Application): Hose Bridges are for rubber tired vehicles only (not for equipment with metal tracks)
• For Use With (Equipment): Ideal for creating a pedestrian/vehicle bridge where large diameter hoses/cables are needed
• IP Rating: None
• Dimensions (L x W): 17.5 in. x 15.75 in.
• Dimensions (L x W x H): 17.5 in. x 15.75 in. x 6 in.
• Length (English): 17.5 in.
• Length (Metric): 0.4445 m
• Height (English): 6 in.
• Height (Metric): 0.4445 m
