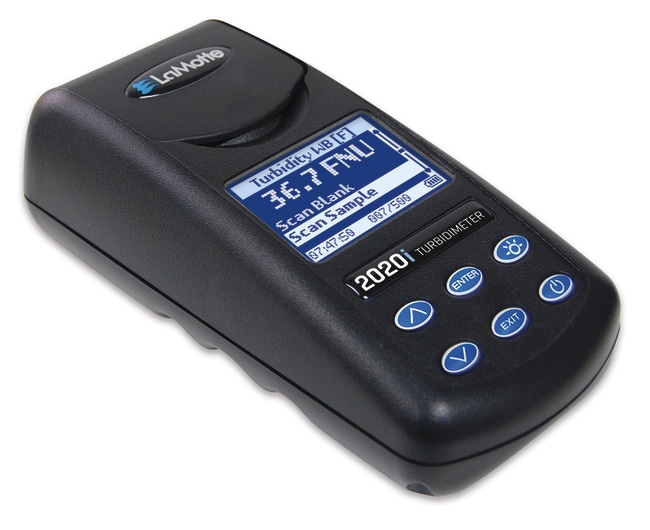

LaMotte™ Turbidity Meter Kit, 2020I Infrared Version

New Ratiometric Design

Supplier:  LaMotte™ 1974I

Catalog No. S72724

Specifications

• Light Source: Infrared LED
• Automatic Range Selection: Yes
• Calibration Type: User calibration
• Key Functions: Turbidity
• Sample Size: 10 mL
• For Use With (Application): Natural waters, storm water
• Accuracy: Three measurement modes: Ratiometric 0 to 2.5 FNU, ±0.05; 2.5-100FNU, ±2%; 100 to 1000FNRU, ±3%; Nephoelometric 0 to 2.5 FTU ± 0.05, 2.5 to 100FNU 0.1; Attenuation 0 to 2000 AU ±10AU
• Resolution: 0 to 10.99, 0.01; 11 to 109.9, 0.1; 110 to 1000, 1
• Dimensions (L x W x H): 7.5 x 3.5 x 2.5 in.
• Length (Metric): 178 mm
• Width (Metric): 89 mm
• Height (Metric): 65 mm
• Battery Type: Lithium ion rechargeable
• Voltage: 5 V
• ISO Accepted Methods: ISO 7027
• Temperature (Metric) Operating: 0°C to 50°C
• Weight (Metric): 368 g

• Display Type: Backlit LCD
• Description: Turbidity Meter Kit, 2020I Infrared Version
• Includes: Carrying case; 0, 10, 100 FNU standards; sample bottles; USB cable; wall adapter; six sample tubes
• Method: Ratiometric
• Auto Shut Down Time: Disabled: 5 seconds, 10 seconds, 30 seconds
• IP Rating: IP67
• Precision: 0 to 10.99, 0.01; 11 to 109.9, 0.1; 110 to 1000, 1
• Turbidity: Nephelometric: 0.02 NTU/FNU or 1%; Ratiometric: 0.02 NTRU/FNRU or 1%; Attenuation: 1%
• Length (English): 7 in.
• Width (English): 3.5 in.
• Height (English): 2.5 in.
• Battery Life: Rechargeable
• Electrical Requirements: USB computer cable, wall adapter or lithium ion rechargeable battery
• Certifications/Compliance: ISO 7027
• Temperature (English) Operating: 0°F to 120°F
• Weight (English): 13 oz.
• Warranty: 2 Years against manufacturer defects
