Accuflow Systems Tygon Tubing, 3/16 in ID, 7/16 in OD, 50 ft

Catalog No. 502365941
Encompass_Preferred

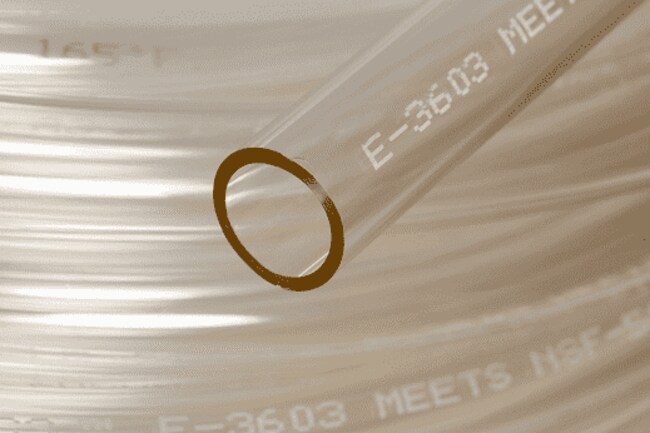

Tygon E-3603 tubing is a crystal-clear, flexible laboratory tubing designed for medical, diagnostic, and general-purpose fluid transfer where chemical compatibility, visual inspection, and dimensional consistency are required.

  • Inner diameter: 3/16 in (4.8 mm)
  • Outer diameter: 7/16 in (11.1 mm)
  • Wall thickness: 1/8 in (3.2 mm)
  • Package length: 50 ft (15 m)
  • Material: thermoplastic elastomer tubing
  • Durometer: 56 Shore A
  • Maximum working pressure (73°F): 47 psi (3.2 bar)
  • Temperature range: brittle temperature -51°F (-46°C); maximum recommended operating temperature 165°F (74°C)
  • Color: crystal-clear
  • Typical applications: medical and diagnostic systems, IVD analyzers, instrumentation fluid transfer
  • Additional properties: low extractables, resistance to flex-fatigue, phthalate-free and BPA-free formulation

Catalog No. 50-236-5941 Supplier Accuflow Systems Supplier No. ACF00014
May include imposed supplier surcharges.
Add to Cart
Add to Cart

missing translation for 'validMainframeMsg'

Tygon E-3603 tubing is a crystal-clear, flexible laboratory tubing designed for medical, diagnostic, and general-purpose fluid transfer where chemical compatibility, visual inspection, and dimensional consistency are required.

  • Inner diameter: 3/16 in (4.8 mm)
  • Outer diameter: 7/16 in (11.1 mm)
  • Wall thickness: 1/8 in (3.2 mm)
  • Package length: 50 ft (15 m)
  • Material: thermoplastic elastomer tubing
  • Durometer: 56 Shore A
  • Maximum working pressure (73°F): 47 psi (3.2 bar)
  • Temperature range: brittle temperature -51°F (-46°C); maximum recommended operating temperature 165°F (74°C)
  • Color: crystal-clear
  • Typical applications: medical and diagnostic systems, IVD analyzers, instrumentation fluid transfer
  • Additional properties: low extractables, resistance to flex-fatigue, phthalate-free and BPA-free formulation
