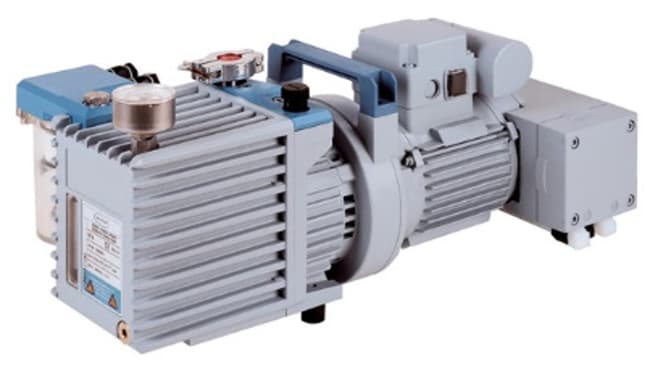

BRANDTECH™ VACUUBRAND™ RC 6 Chemistry-HYBRID Pump

Catalog No. 01257532 Shop All BrandTech Scientific Products
Change view
Click to view available options
Flow Rate:
4.1 cfm
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Flow Rate
01-257-532 4.1 cfm
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. 01-257-532 Supplier BRANDTECH™ VACUUBRAND™ Supplier No. 20798563
Only null left
Add to Cart
Add to Cart
Request a Quote

Description

The RC 6 Chemistry-Hybrid pump combines a two-stage rotary vane pump and a two-stage chemistry diaphragm pump for optimized corrosion resistance.

  • Higher solvent vapor pumping capabilities and resistance to aggressive gases compared to the conventional rotary vane pump
  • Reduced internal corrosion, even when working with corrosive vapors
  • Oil changes typically reduced by 90% or more compared to rotary vane pumps alone
  • Cold trap is often not necessary in practical operations, making this an economical solution
  • Easy maintenance due to telescopic design
TRUSTED_SUSTAINABILITY

Specifications

Max. Vacuum 1.5 x 10-3 Torr
Horsepower 0.4 hp
Includes Vacuum Pump, Pump Oil, Manual
Dimensions (L x W x H) 20.7 x 11.9 x 8.9 in. (526 x 302 x 226 mm)
Model RC 6
Noise Level 50 dBA
Weight (English) 55.1 lb.
Weight (Metric) 25 kg
Temperature (English) Max. 104°F
Temperature (Metric) Max 40°C
Temperature (Metric) Min. 12°C
Flow Rate 4.1 cfm
Frequency 60 Hz
Pump Type Rotary Vane Vacuum Pump
Enclosure Rating IP40
Temperature (English) Min 54°F
Applications Schlenk Line
No. of Stages 2
Maximum Pressure 1.1 bar
Voltage 100/120 V
