Leica Microsystems Visoria P Polarization Microscope for Geosciences Including Conoscopy with Flexacam c5

Catalog No. 14823445 Shop All Leica Microsystems Products
Change view
Click to view available options
Magnification Power:
5X to 63X
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Magnification Power
14-823-445 5X to 63X
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. 14-823-445 Supplier Leica Microsystems Supplier No. 111000012
Only null left
Add to Cart
Add to Cart
Request a Quote

Description

This microscope uses polarized light to study the optical properties of materials and geological samples. The ergonomic design minimizes strain and improves comfort while working. Workflows can be streamlined with encoded functions, optimized light settings, and other features.

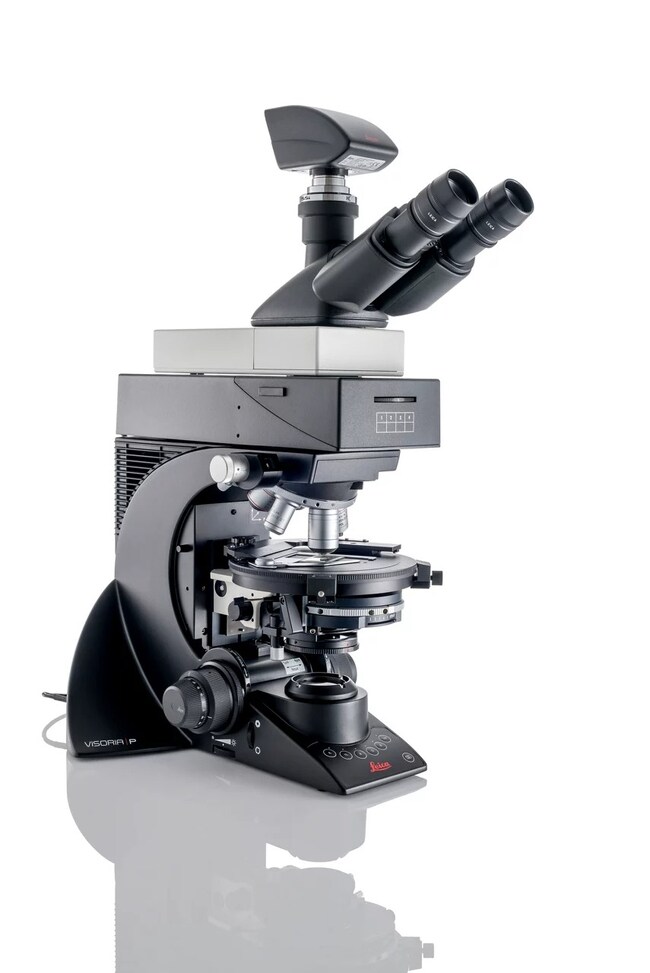

  • Visoria P Polarization Microscope with illumination management
  • Binocular phototube
  • Two eyepieces (10x), field of view 22 mm, thereof one with cross hair reticule
  • Flexacam c5 microscope camera, includes c-mount 0.55x
  • High-power white LED
  • Contrast methods (transmitted light): Quantitative polarization, Brightfield
  • Encoded nosepiece, 5x

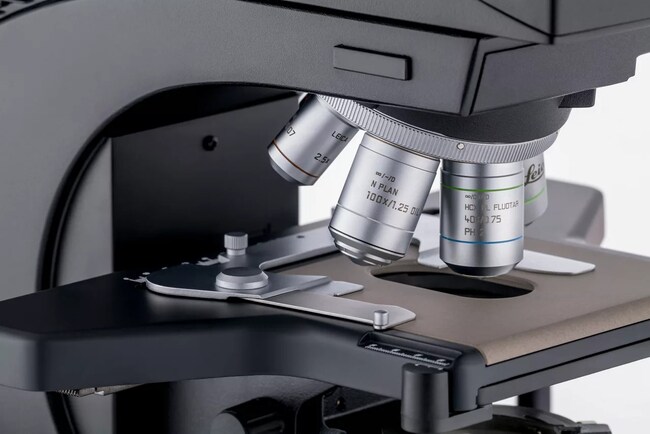

  • Objectives (N PLAN POL): 5x, 10x, 20x, 40x, 63x
  • 360° rotatable polarization stage with verniers, 45° clickstop position and brake
    • object guide without point counting
  • 360° Analyzer, Polarizer, Whole-wave plate f. compensator slot
  • Bertrand lens cube
  • 3-step focus drive with height-adjustable focus knobs
  • Powered by Enersight microscope software platform
  • Dust protection cover
  • Quick start guide and user manual
  • Efficiency through encoded functions
  • More comfort with ergonomics
  • Work without eyepieces by going digital
  • Visualize sample details with the right contrast
TRUSTED_SUSTAINABILITY

Specifications

Eyepiece 10X/22 mm
Head Style Trinocular, 30° Inclined
Lighting Type LED
Magnification Power 5X to 63X
Model Visoria P
Objective Types Plan
Product Type Polarizing Microscope
