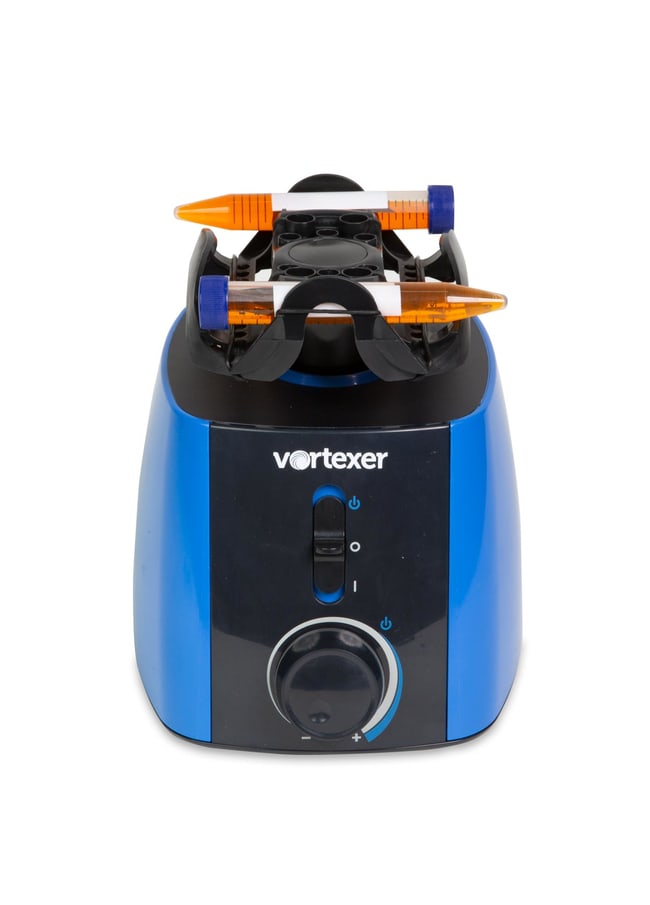

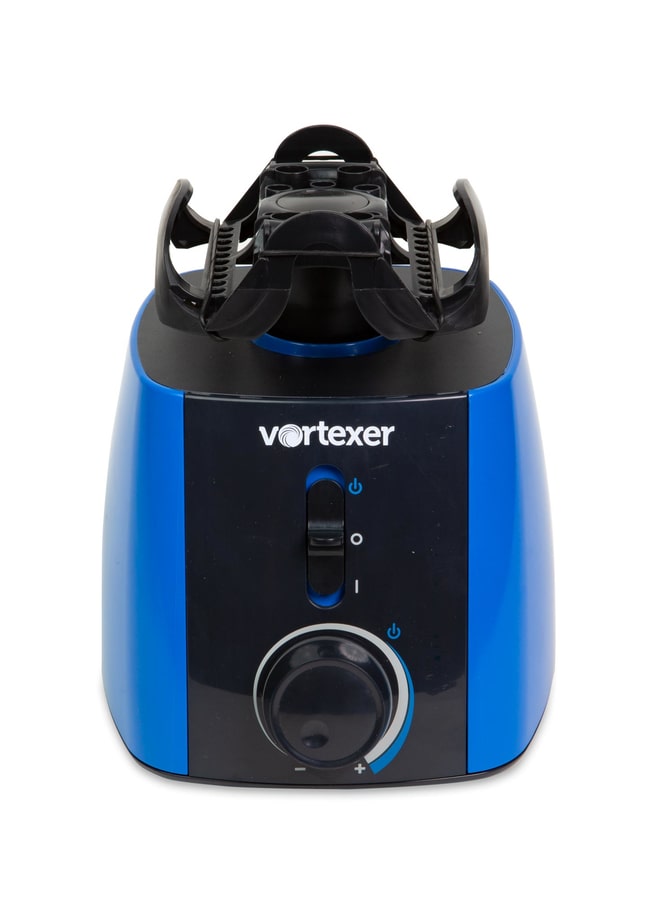

Heathrow Scientific™ Vortexer Mixer, Blue

The Vortexer is a multi-purpose, and maximum convenience unit. This sleek and modern designed Vortexer Mixer is capable of meeting the mixing requirements of the most popular test tubes used in today’s lab without the need to swap out mixing head units.

Supplier:  Heathrow Scientific™ HS120209

Catalog No. 14-127-520

Description

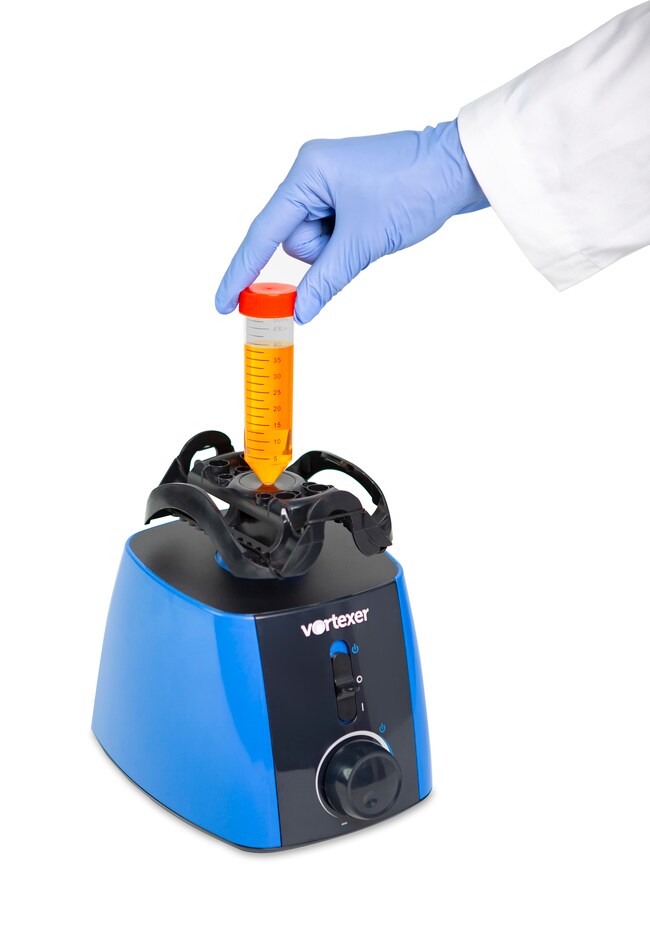

The innovative design makes maximum use of the space available, providing holding slots for no less than six different sizes of tube and a standard assay plate, while the center pad area can be used for quick hand-held mixing of a vast range of tubes and vessels.

• Body made from durable ABS to resist most commonly used chemicals, and is easy to clean
• Stable elastomeric device feet, provide vibration dampening and prevent movement during operation
• Innovative head can be removed for cleaning purposes
• US Design Patent No. D787,085, US Utility Patent No. 9895670

Specifications

• Orbit: 3.7 mm
• Speed Range: 1000 to 3000 rpm
• Voltage: 110/120 V
• Amperage: 1 A
• Product Type: Vortexing unit
• Certifications/Compliance: SGS-US-C, CE, CB Scheme, RoHS 2, PSE, WEEE
• Frequency: 50/60 Hz
• Depth (English): 7.41 in.
• Dimensions (L x W): 6.7 x 7.5 in.
• Height (English): 7.68 in.
• Length (English): 6.7 in.
• Length (Metric): 17.1 cm
• Width (English): 6.67 in.
• Width (Metric): 17.1 cm
• Shipping Weight (English): 11.12 lb.
• Weight (English): 8.66 lb.
• Color: Blue
• Description: Vortexer Mixer 110/120 V, US/NA Plug
• For Use With (Equipment): Tubes, Assay Plates
• Motor Type: Brushless
• Warranty and Service Offering: 5 Years

• Load Bearing Capacity (Metric): 135 g
• Electrical Requirements: 110/120 V, 50/60 Hz
• Wattage: 55 W
• Tube Capacity: 50 mL, 15 mL, 1.5/2 mL, 0.5 mL, and 0.2 mL
• Load Bearing Capacity (English): 4.8 oz.
• Plug Type: US Plug
• Material: ABS Base, Nylon Platform
• Depth (Metric): 19 cm
• Dimensions (L x W x H): 6.7 x 7.5 x 7.8 in.
• Height (Metric): 19.7 cm
• Length (English) Platform: 5.51 in.
• Length (Metric) Platform: 140 mm
• Width (English) Platform: 4.5 in.
• Width (Metric) Platform: 11.43 cm
• Shipping Weight (Metric): 5 kg
• Weight (Metric): 3.93 kg
• Controller Type: 3 position slider (top) intermittent, (middle) off, (bottom) continuous
• Model: HS120209
• Includes: 1 x AC power cord, 1 x mixing head, 3 x elastic retention cords, 3 x central pads
• Operating Modes: 3-Modes: 1000, 2000, and 3000 rpm

Safety and Handling

WARNING: Cancer - www.P65Warnings.ca.gov
