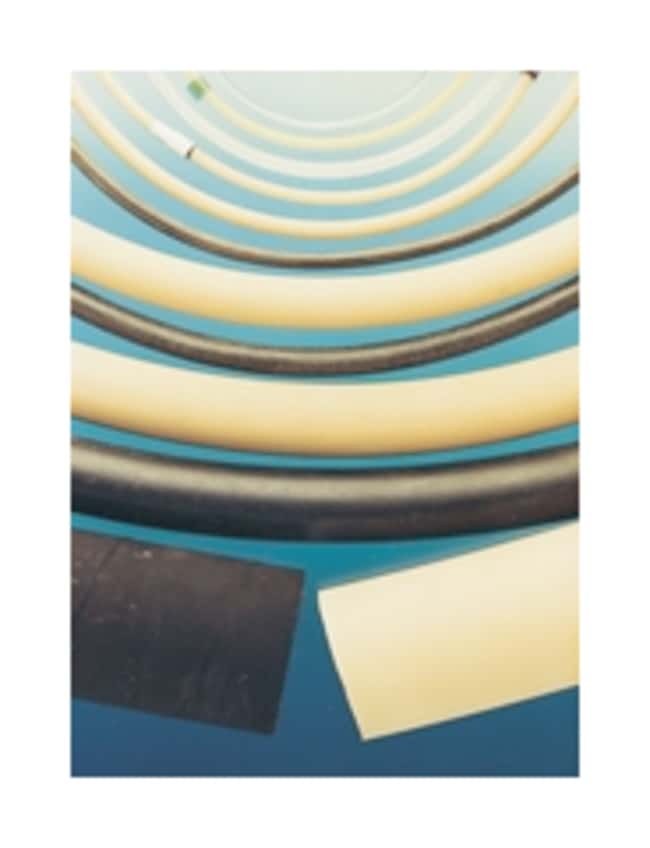

Watson-Marlow Single-Segment Manifold Tubing for Peristaltic Pump Models 205S/CA and 205U/CA: PVC
SDP

Catalog No. 1428399
Click to view available options
Diameter (Metric) Inner:
0.38 mm
0.63 mm
0.76 mm
1.02 mm
1.14 mm
1.42 mm
1.52 mm
1.65 mm
2.79 mm
Flow Rate:
0.001 to 0.439mL/min.
0.007 to 1.300mL/min.
0.011 to 1.89mL/min.
0.019 to 3.033mL/min.
0.023 to 4.1mL/min.
0.035 to 6.25mL/min.
0.04 to 7.15mL/min.
0.046 to 8.26mL/min.
0.117 to 21mL/min.
Color:
Black/Black
Blue/Blue
Orange/Green
Orange/White
Purple/White
Red/Red
White
Yellow
Yellow/Blue

For use with Peristaltic Pump Models 205S/CA and 205U/CA.

  • High Shore hardness of PVC provides high pressure and suction performance and low gas permeability
  • Glass clear
  • Working Temperature: 0° to 60°C

Certifications

FDA approved for use with food and is NFS listed.

TRUSTED_SUSTAINABILITY

Specifications

Diameter (English) Inner 1/25 in.
Diameter (Metric) Inner 1.02 mm
Material PVC
Thickness (English) 0.03 in.
Thickness (Metric) 0.8 mm
For Use With 205S/CA and 205U/CA peristaltic pump
Min. Operating Temperature (English) 32°F
Min. Operating Temperature (Metric) 0°C
Flow Rate 0.019 to 3.033mL/min.
Color White
Max. Operating Temperature (English) 140°F
Max. Operating Temperature (Metric) 60°C
Product Type Manifold Tubing (Single Segment)
