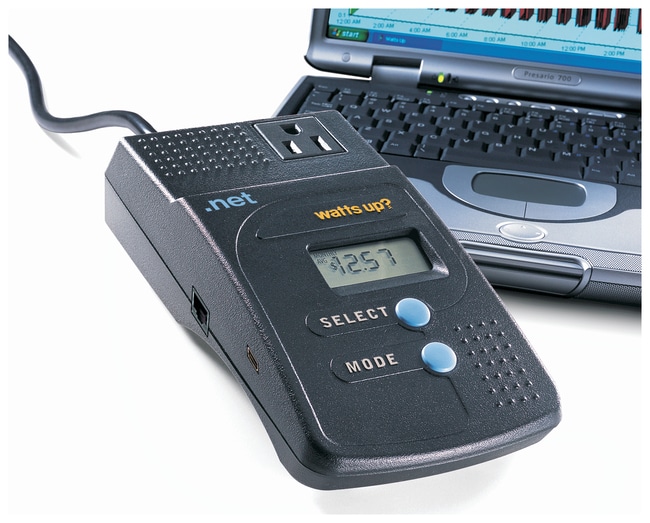

Watts up? .Net Electric Meter
SCI_ED

Catalog No. S97698
Change view
Click to view available options
Quantity:
1 Ea.
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Quantity
S97698 1 Ea.
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. S97698 Supplier Thinktank Energy Products Inc Supplier No. 72222

Description

Internet enabled with internal power switching relay.

  • Ideal for remote monitoring, the built-in web server allows data to be accessed via the internet
  • Connecting the meter to public internet will automatically output data
  • Data from the meter can also be viewed on “watts up?” website, by creating a free account
  • Live data can be seen in table or graphical formats; data can also be downloaded as a csv file
  • Sends data as fast as every second
  • Connecting a wireless adapter into the meter's ethernet port, allows it to be used wirelessly
  • With active energy savings, .Net can turn off power to the end load based on user configurable rules that can be based on single or multiple meters
  • Input is via 6 ft. electric cord (USA style only), output is via outlet on top of meter

Specifications:

  • Memory: 120,000 (stop/overwrite mode); ∽4000 records (automatic mode)
  • Accuracy: ±1.5%
  • 120V 60Hz, 15A
  • Ethernet connection: Communication via TCP/IP, and http
  • Power switching: rated at 100,000 cycles and normally on
  • USB interface

Order Info

Dimensions: 7 x 4 x 2 in. (18 x 10 x 5cm); Weight: 2.5 lb. (1kg)

Certifications

UL listed, CE marked

Specifications

For Use With (Application) Ideal for remote monitoring, the built-in web server allows data to be accessed via the internet
Quantity 1 Ea.
Product Type Electric Meter
Electrical Requirements 120 V 60 Hz
Temperature Range (Metric) 5°C to 40°C
Depth (Metric) 5 cm
Width (Metric) 10 cm
Temperature Range (English) 41°F to 104°F
Weight (Metric) 1 kg
Length (Metric) 18 cm
Weight (English) 2.5 lb.
Length (English) 7 in.
Depth (English) 2 in.
Accuracy 1.5%
Dimensions (L x W) 7 x 4 in. (18 x 10cm)
Power Supply 6 ft. Electric cord (USA style)
Certifications/Compliance UL, CE
Width (English) 4 in.
Amperage 15 A
Frequency 60 Hz
Voltage 120 V
