Youngstown Barrel & Drum Youngstown Barrel & Drum Ultra-Drain Guard, Catch Basin Insert; High Capacity Model

Catalog No.	Capacity (English)
18-938-437	Oil: 1.9 gal., Sediment, dirt, and debris: 300 lb.

Catalog No. 18-938-437 Supplier Youngstown Barrel & Drum Supplier No. 9393 UT

Description

Captures large amounts of hydrocarbons and up to 300 lbs of sediment.

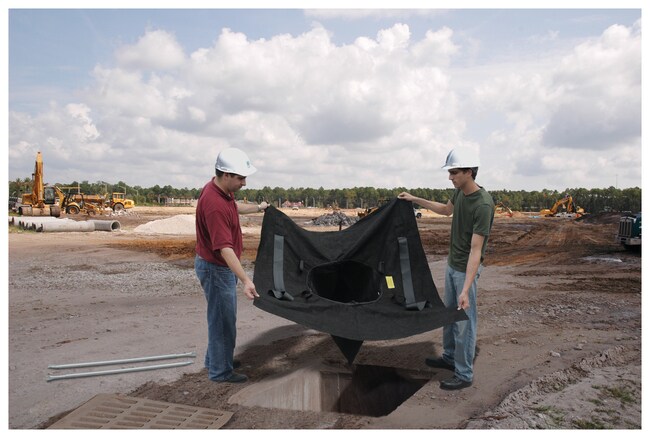

High capacity catch basin insert captures large amounts of sediment and oil. The geotextile material absorbs oil, grease, and other hydrocarbons, and captures up to 300 lbs. of sediment, dirt and debris. 60 in. x 60 in. skirt fits almost any drain (up to 54 in. x 54 in.). Coated steel retainers hold Drain Guard in place whether grating is removed or installed are optional.

Specifications

• Certifications/Compliance: NPDES, 40 CFR 122.26 (1999)
• Color: Black
• Capacity (English): Oil: 1.9 gal., Sediment, dirt, and debris: 300 lb.
• Capacity (Metric): Oil: 7 L, Sediment, dirt and debris: 136 kg
• Material: Needle-punch Geotextile
• Type: Ultra-Drain Guard
• For Use With (Application): Designed for areas expecting large levels or either sediment or oil
• For Use With (Equipment): any drain (up to 54 in. x 54 in.).
• Holds: Holds up to 1.9 gallons (7 L) of oil and 300 lb. (136kg) of sediment, dirt and debris.
• Includes: Large 3 in. W polyester handling straps
• Model: High-capacity
• Packaging Quantity: 1 Ea.
• Shape: Square
• Dimensions (L x W): 60 x 60 in. (152.4 x 152.4 cm)
• Length (English): 60 in.
• Length (Metric): 152.4 cm
• Width (English): 60 in.
• Width (Metric): 152.4 cm
• Depth (English): 35 in.
• Depth (Metric): 88.9 cm
• Diameter (English): 24 in.
• Diameter (Metric): 60.9 cm
• Weight (English): 2 lb.
• Weight (Metric): 0.9 kg
