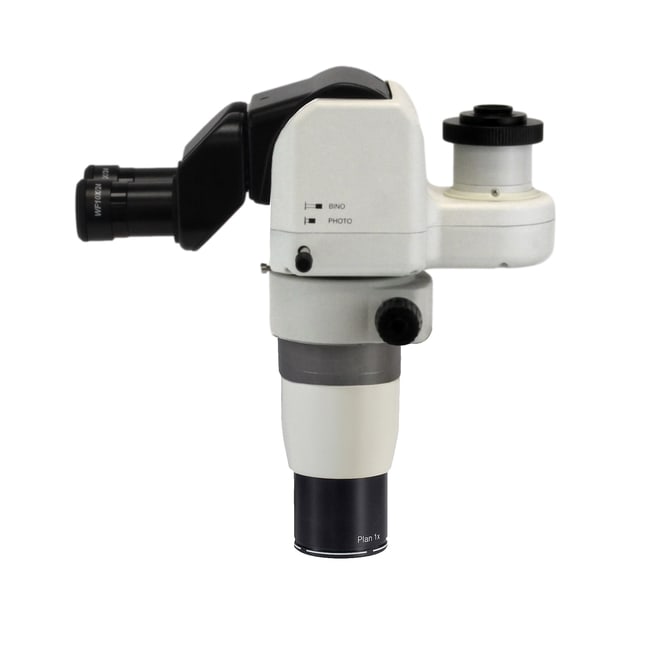

UNITRON Z10 Ergonomic Trinocular Zoom Stereo Microscope, 8X to 80X magnification
SDP

Catalog No. 01189318 Shop All ACCU-SCOPE Products
Change view
Click to view available options
Magnification Power:
8X to 80X
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Magnification Power
01-189-318 8X to 80X
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. 01-189-318 Supplier UNITRON Supplier No. 11140TT
Only null left
Add to Cart
Add to Cart
Request a Quote

Description

Provides a rugged, high-value solution for quality assurance, materials analysis, production, assembly, and failure analysis.

  • Ergonomic trinocular viewing head with 0 to 30° tilting and 160 mm total tilt adjustment
  • Magnification range 8X to 80X with distortion free optics long working distances and shadow free illumination to enhance productivity
  • Light path selector 100:0 / 50:50 binoc:camera port
  • C mount camera adapters available separately including 0.5X focusable adapter (CAT 111-25-05A), 0.7x adapter (CAT 111-25-07), and 1.0x adapter (CAT 111-25-01A)
  • Widefield 10X/24 mm focusing eyepieces
  • 0.8X to 8.0x zoom magnification range with 10:1 zoom ratio
  • Magnification range 8X to 80X (with 10X eyepieces)
  • Variable zoom magnification system with parallel optical axis (Galilean optical system; common main objective)
  • Interpupillary distance adjustment 51 to 75 mm
  • Click stops at 1, 2, 3, 4, 5, 6, 7 and 8X positions
  • 1x plan achromat objective (N.A. 0.09) with optional 0.3x 0.5X and 2.0x
  • 78 mm working distance
  • Airtight and anti mold design
  • NOTE All photos shown with optional stands illumination and accessories
  • Shipping size 17 x 13 x 11 in.
  • Shipping weight 12 lb.

Specifications

Magnification Power 8X to 80X
Objective Types Zoom Stereo
Product Type Stereo Microscope
Head Style Trinocular, 30° Inclined
Lighting Type Requires External Illumination
Eyepiece WF 10X/24 mm
